DeLOCK HDMTD quad plug angled for PCB

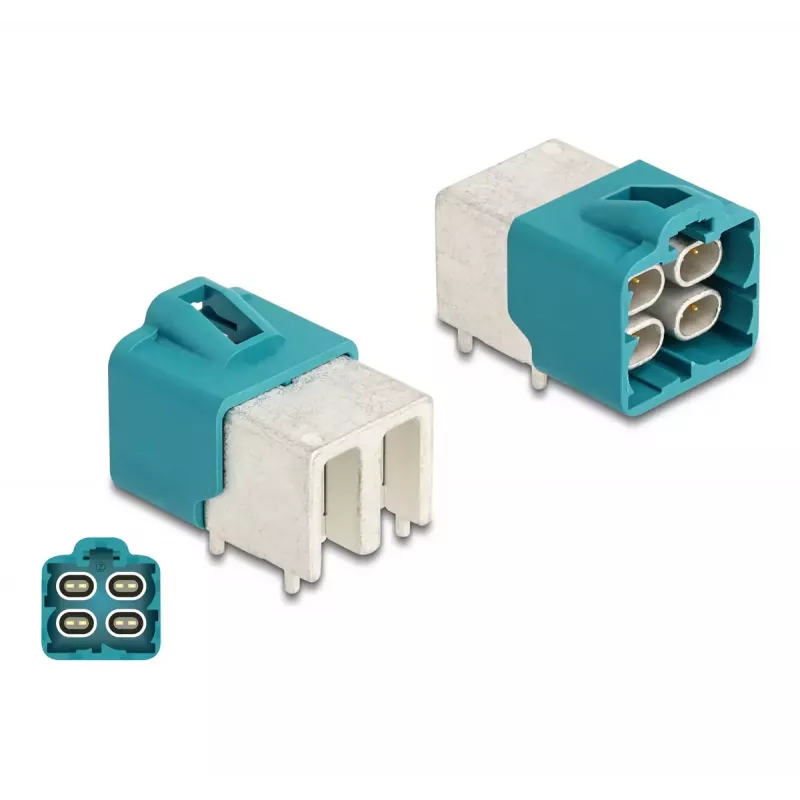

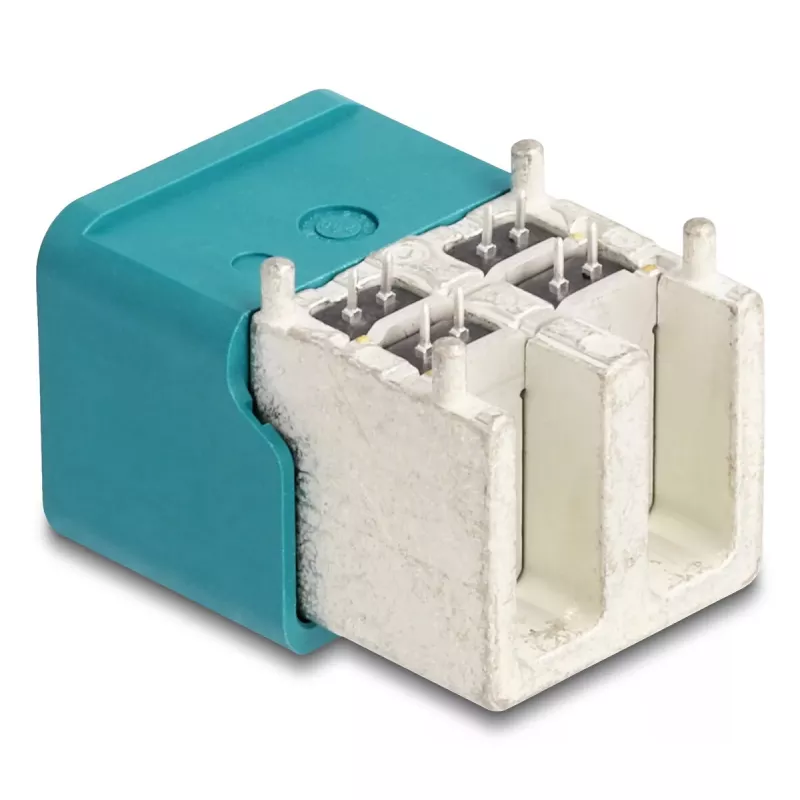

The DeLOCK HDMTD quad plug angled for PCB is a compact angled connector designed for printed circuit board applications. It provides a reliable interface for connecting electronic components in devices and vehicle electronics, and is supplied in a protective polybag. The connector measures 19 mm (width) × 24 mm (depth) × 8 mm (height) and is manufactured in Taiwan with a blue and silver finish.

Advantages

The angled design simplifies installation on PCBs where space or connector orientation is restricted. Its compact dimensions help save board space, while the colour-coded blue and silver appearance aids visual identification. Packaged in a polybag, the product is protected during storage and transport.

Suitable for

Key specifications

How to use

Position the angled quad plug on the designated PCB pads, align pins with the board holes or surface-mount pads, and solder according to the PCB manufacturer's guidelines. Ensure correct orientation to match mating connectors and verify mechanical stability after soldering. Follow standard ESD precautions when handling the connector.

Recommendations

For secure long-term connections in vehicle electronics, verify compatibility with mating connectors and ensure solder joints are inspected for cold soldering. Store in original polybag until assembly to prevent contamination.
