DeLOCK HDMTD quad plug for PCB Protection class IP67 IP69K

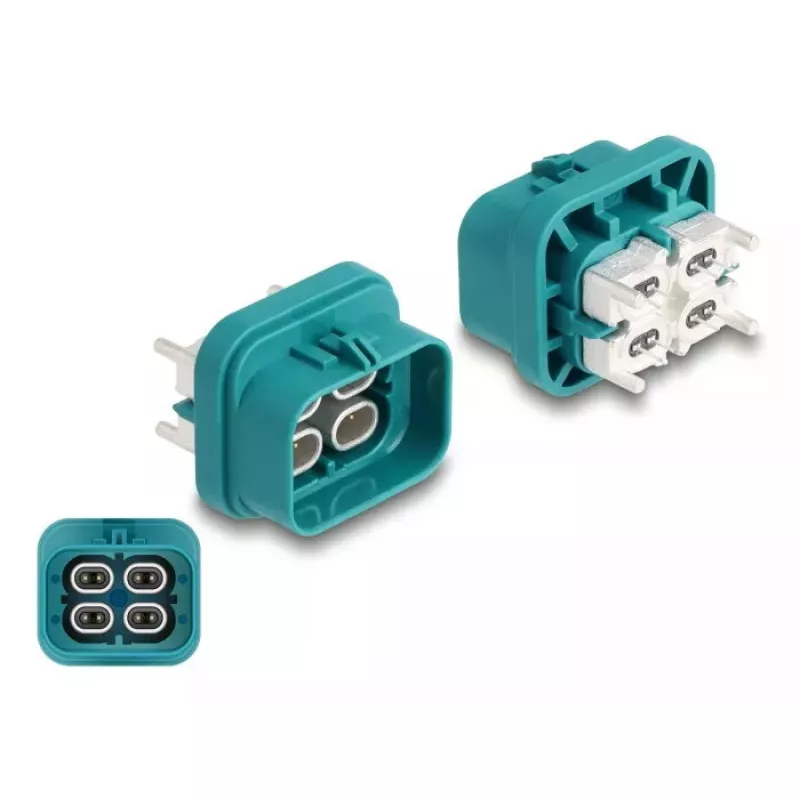

The DeLOCK HDMTD quad plug for PCB is a compact connector designed for electronic and vehicle applications that require robust sealing. It provides IP67 and IP69K protection for printed circuit board installations and features a female HDMTD interface with a characteristic impedance of 100 Ω. The plug measures 14 mm in width, 22 mm in depth and 8 mm in height and is finished in aqua colour.

Advantages

The HDMTD quad plug combines high ingress protection (IP67, IP69K) with a PCB-compatible form factor, ensuring reliable operation in dusty, wet or high-pressure wash environments. Its 100 Ω impedance supports signal integrity for compatible systems, and the compact dimensions save board space. The aqua-coloured housing aids visual identification during assembly.

Suitable for

Key specifications

How to use

Mount the quad plug directly to the PCB using the designated footprint and solder points. Ensure the mating counterpart is compatible with HDMTD female interface and matched to 100 Ω impedance to maintain signal integrity. Verify the sealing surfaces and cable gland (if used) are correctly seated to preserve IP67/IP69K protection before exposing the assembly to moisture or cleaning procedures.

Recommendations

For reliable ingress protection, inspect seals and mating connectors periodically and follow vehicle or equipment manufacturer guidelines for installation torque and cleaning procedures. Use cables and counterparts specified for 100 Ω impedance and compatible HDMTD interfaces.
