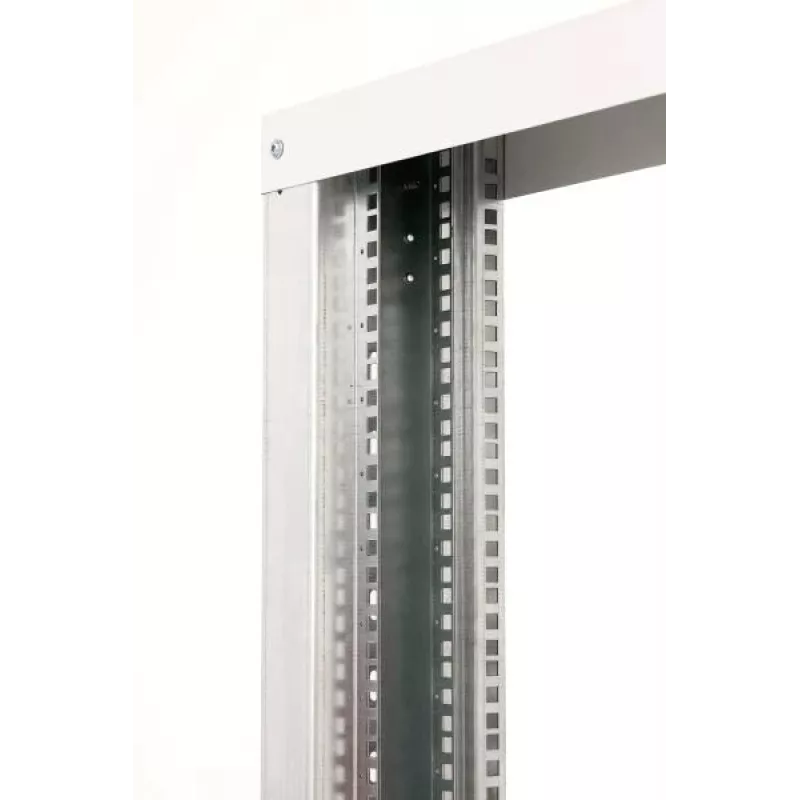

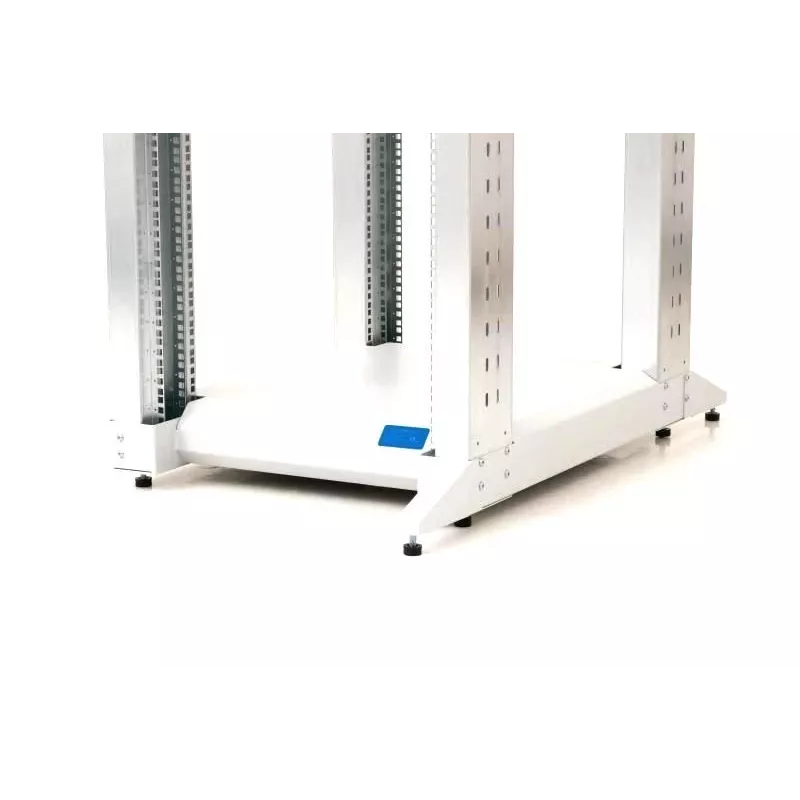

Freestanding rack Triton RSX 19U Stainless steel 800 kg capacity

The Triton RSX 19U freestanding rack is a stainless steel open-frame solution for installing IT and network equipment in protected indoor environments. It provides 19" mounting, overall dimensions of 800 mm width, 600 mm depth and 2005 mm height, and a rated load capacity of up to 800 kg for the double-frame configuration. The rack weighs 39.9 kg and is intended for data centres, server rooms and technical closets where a robust, corrosion-resistant frame is required.

Advantages

The stainless steel construction offers durability and resistance to corrosion while maintaining structural rigidity for heavy loads. With a 19U mounting space and standard 19" rails, the rack supports common server and network equipment. The open-frame design allows unrestricted ventilation and easy access for cabling and maintenance. The specified load capacity of 800 kg ensures stable support for dense equipment configurations.

Suitable for

• Server rooms and data centres
• Network cabinets and telecom installations
• Technical closets and equipment storage in protected indoor areas
• High-density rack-mounted equipment requiring robust support

Key specifications

• Product name: Triton RSX 19U Freestanding rack
• Mounting size: 19" (19U)
• Width: 800 mm
• Depth: 600 mm
• Height: 2005 mm
• Weight: 39.9 kg
• Material / colour: Stainless steel
• Load capacity: up to 800 kg (double frame configuration)
• MPN: 7313, EAN: 8595105108604

How to use

Place the freestanding rack on a stable, level surface in a protected indoor environment. Assemble according to the manufacturer's instructions and secure mounting rails at standard 19" spacing. Install equipment from the bottom up, distributing weight evenly and using appropriate mounting hardware. Ensure cable routing and ventilation are planned to avoid obstruction of air flow through rack-mounted devices.

Recommendations

For safe operation, verify the total equipment weight does not exceed the rated 800 kg capacity; in single-frame mode the capacity is 150 kg. Use anti-tip measures if required by the installation site, and maintain regular inspection for corrosion or loose fasteners in corrosive environments.
