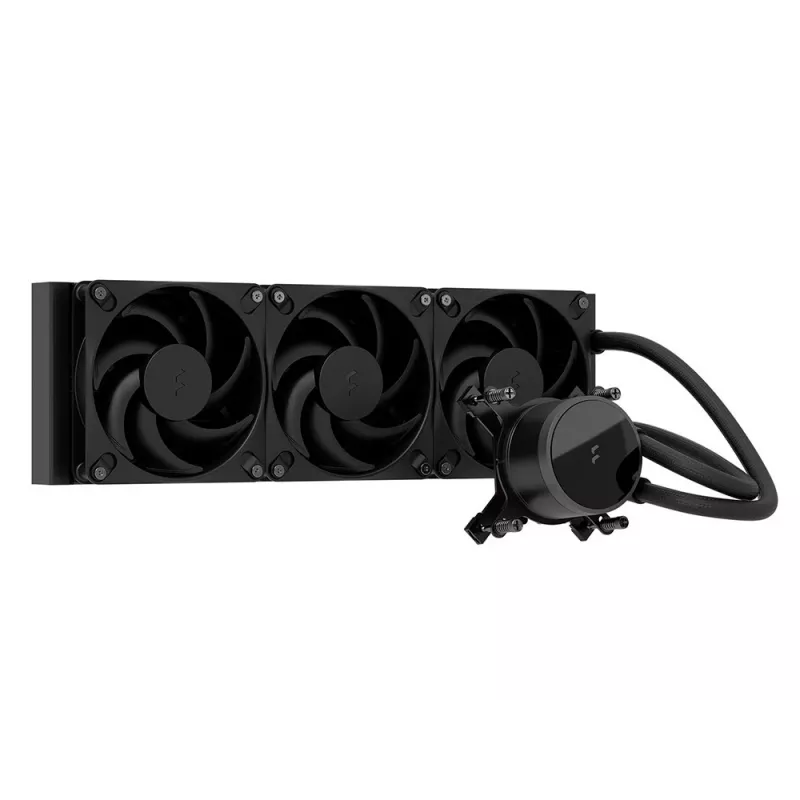

Fractal Design Radius 360 Black AIO Liquid CPU Cooler

High-end CPUs demand exceptional cooling to sustain peak performance under load. The Fractal Design Radius 360 Black tackles thermal throttling head-on with a 360 mm radiator and three Aspect 12 RGB PWM fans, delivering efficient heat dissipation for demanding builds.

Who is it for

Enthusiasts and gamers running Intel LGA 1700/1200/115x/2066 or AMD AM5/AM4/TR4 processors who need reliable all-in-one liquid cooling with addressable RGB lighting and quiet operation.

Main features

• 360 mm aluminium radiator with copper cold plate for rapid heat transfer
• Three 120 mm Aspect 12 RGB PWM fans (500–2000 RPM, up to 56 CFM airflow, 2.34 mm H2O static pressure)
• Integrated ARGB lighting on pump and fans, compatible with 3-pin 5V headers
• Low-permeability rubber tubing with braided nylon sleeve, 400 mm length for flexible installation
• Pump speed 3600 RPM with max noise 22 dB(A); fans as low as 10 dB(A)
• Broad socket support: Intel LGA 1700, 1200, 115x, 2011, 2066; AMD AM5, AM4, TR4 (bracket included)

Specifications

• Radiator size: 360 mm
• Radiator material: Aluminium
• Fan size: 120 mm
• Number of fans: 3
• Fan model: Fractal Design Aspect 12 RGB PWM
• Fan speed: 500 - 2000 RPM
• Fan airflow: 13 - 56 CFM
• Fan static pressure: 0.23 - 2.34 mm H2O
• Fan noise level: 10 - 33.2 dB(A)
• Pump speed: 3600 RPM
• Pump noise level: Max 22 dB(A)
• Tube length: 400 mm
• Tube material: Low-permeability rubber with braided nylon sleeve
• Cold plate material: Copper
• RGB lighting: Addressable RGB (ARGB) on pump and fans
• Fan connector: 4-pin PWM
• RGB connector: 3-pin ARGB (5V)

Tips

Pair with a case that supports a 360 mm radiator mount, typically in the front or top. Use the included mounting kit for your socket; for AMD TR4, ensure the dedicated bracket is installed. Connect the ARGB cable to a compatible motherboard header or controller to synchronise lighting effects.
