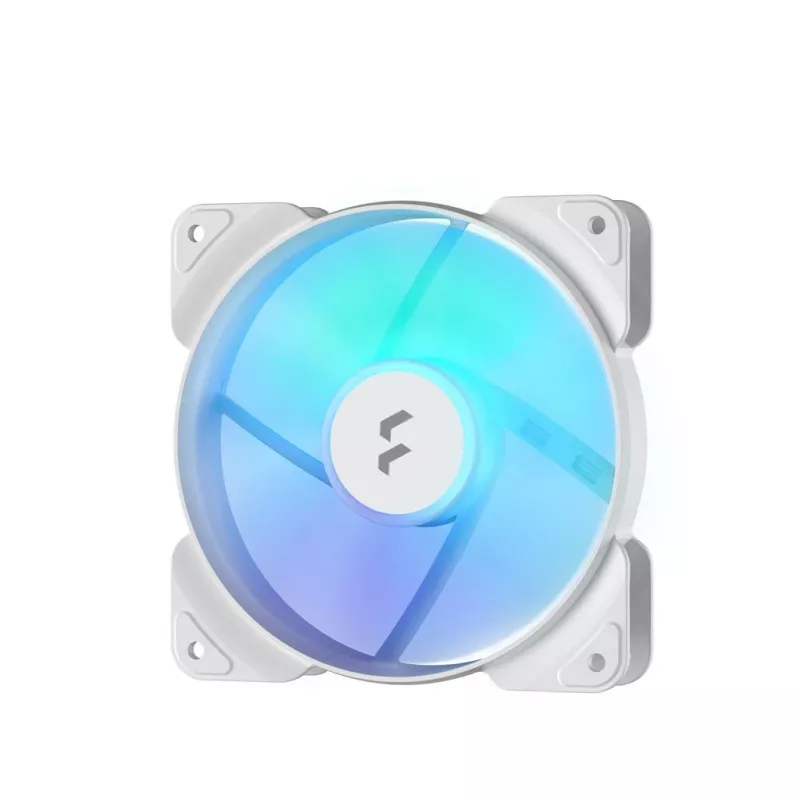

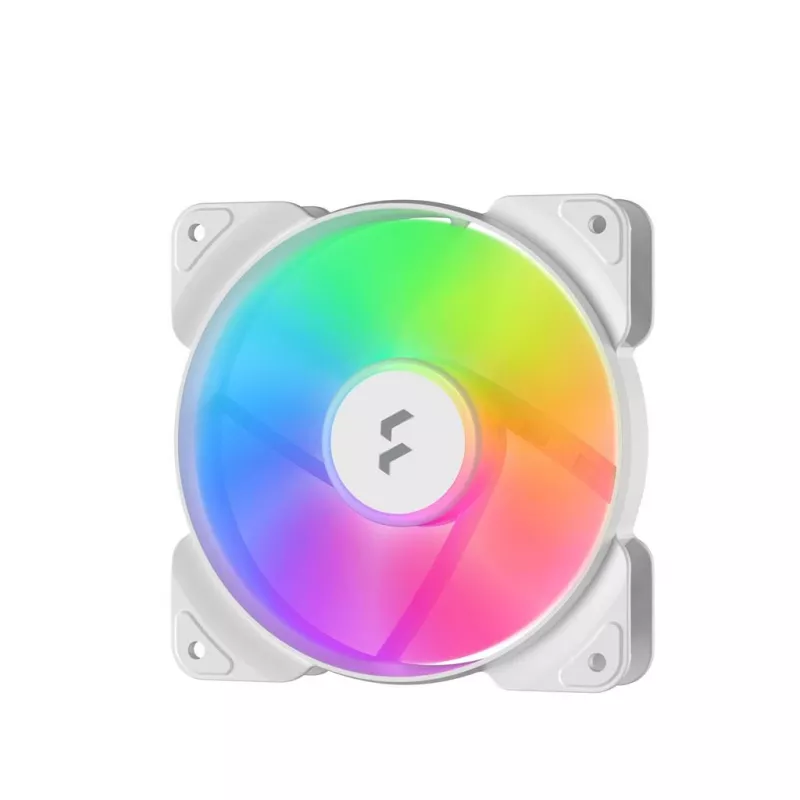

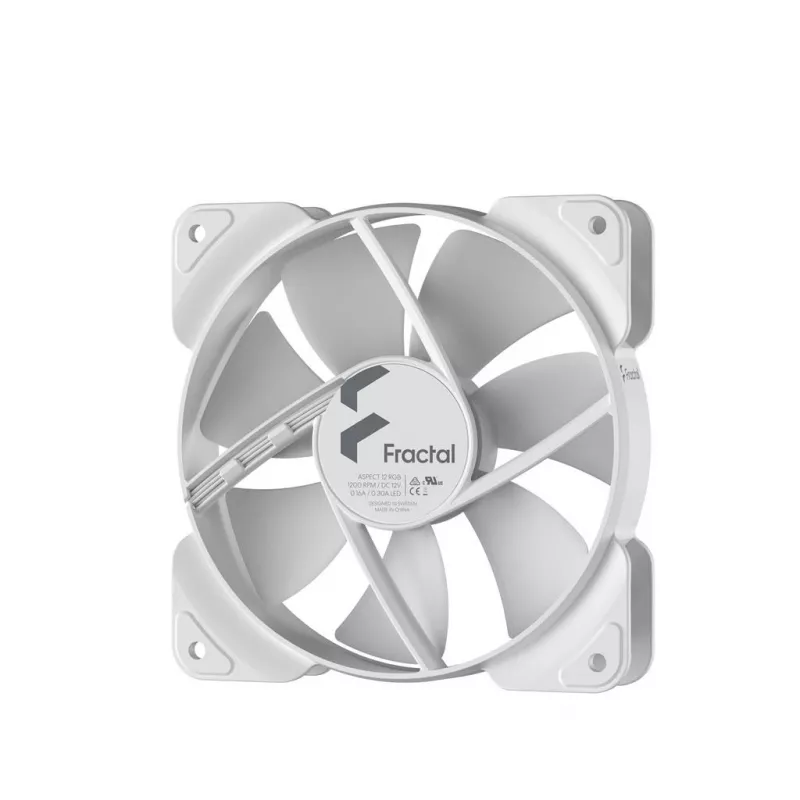

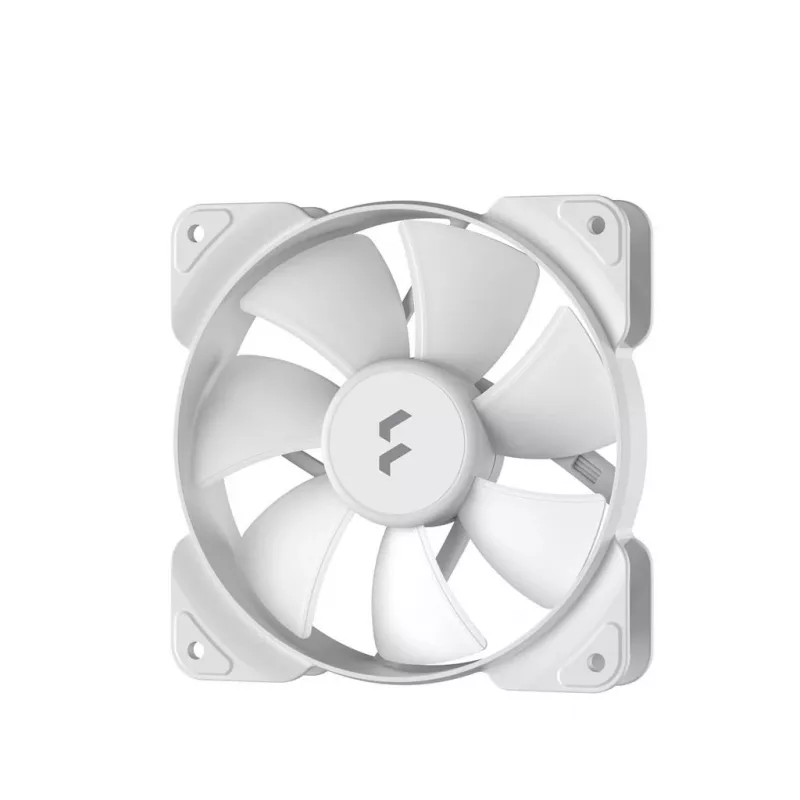

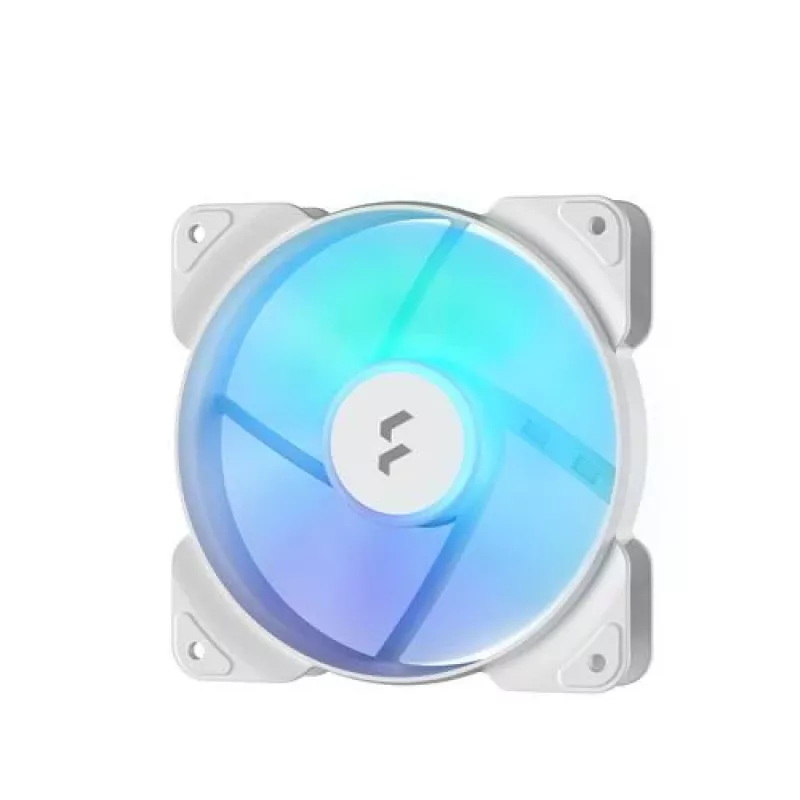

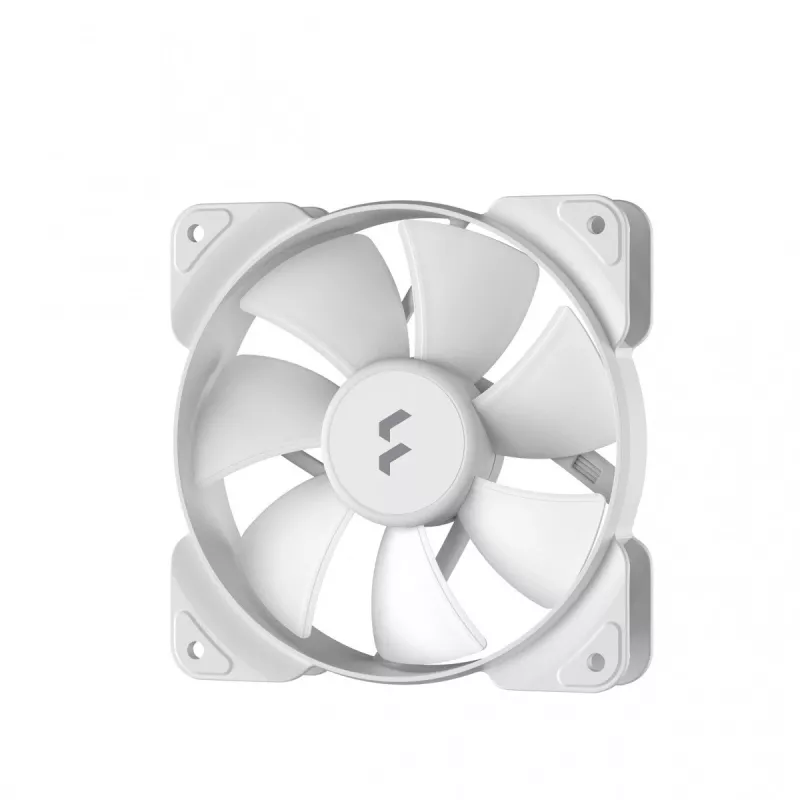

Fan Fractal Design Aspect 12 RGB

The Fractal Design Aspect 12 RGB is a 120 mm system fan that combines refined airflow engineering with addressable RGB lighting. It spins at up to 1200 RPM, delivers 54.4 m³/h airflow and a maximum static pressure of 1.2 mmH2O, uses a rifle bearing for improved durability, operates at 12 V and comes in a white finish designed to complement modern PC builds.

Advantages

Aspect 12 RGB integrates six individually addressable hub-mounted RGB LEDs for customizable lighting while keeping a performance-oriented frame that reduces turbulence. Aerodynamic stator struts and Trip Wire technology improve blade efficiency and lower noise. Rifle bearings increase bearing life compared with standard sleeve bearings, and the built-in chain feature simplifies powering and synchronizing multiple fans.

Suitable for (tasks / use cases)

• Case cooling in mid-tower and full-tower PC builds
• Radiator or intake/exhaust fan with moderate airflow and pressure requirements
• Systems where addressable RGB lighting is required
• Multi-fan setups that benefit from chained power and lighting control

Key specifications

• Fan diameter: 120 mm
• Maximum speed: 1200 RPM
• Airflow: 54.4 m³/h
• Maximum static pressure: 1.2 mmH2O
• Bearing type: Rifle bearing
• Operating voltage: 12 V
• Colour: White
• Weight: 0.135 kg
• Compatibility: ASUS AURA, Gigabyte Fusion, MSI Mystic Light, ASRock Polychrome, Razer Chroma

How to use

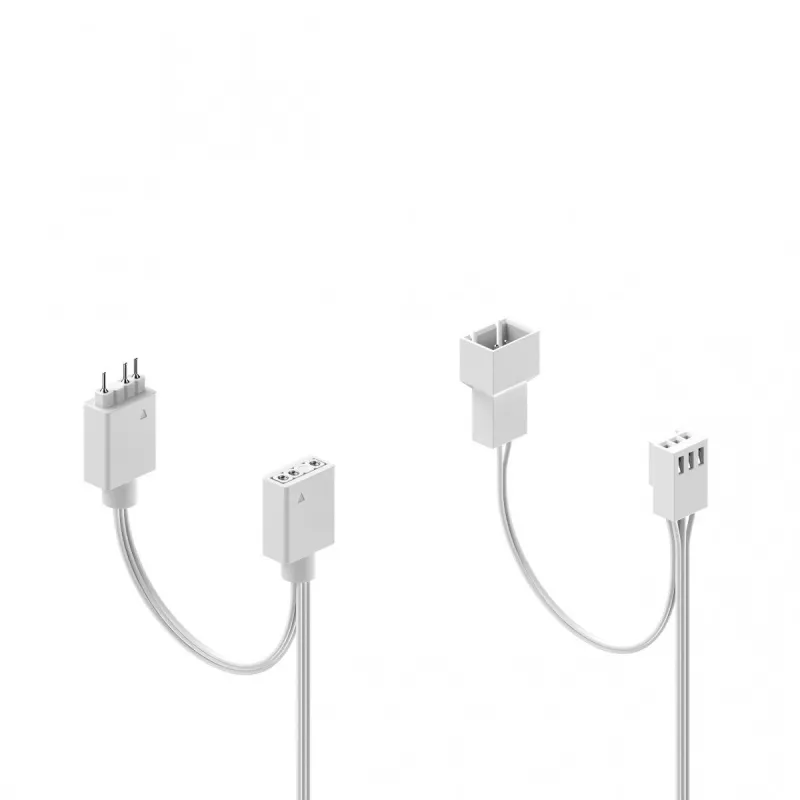

Install the Aspect 12 RGB in a standard 120 mm fan mount using the supplied screws. Connect the power and RGB headers according to your case or motherboard manual; use the chain feature to connect multiple Aspect fans together for simplified cabling. Configure lighting through compatible RGB software (ASUS AURA, Gigabyte Fusion, MSI Mystic Light, ASRock Polychrome or Razer Chroma) and adjust fan speed via motherboard fan control or a fan controller to match your cooling needs.

Recommendations

For best results, use the Aspect 12 RGB as part of a balanced airflow configuration (intake and exhaust) and avoid obstructing the fan intake or exhaust. When installing multiple fans, use the chaining feature to reduce cable clutter and ensure synchronized lighting. Maintain regular dust cleaning to preserve performance and bearing life.
