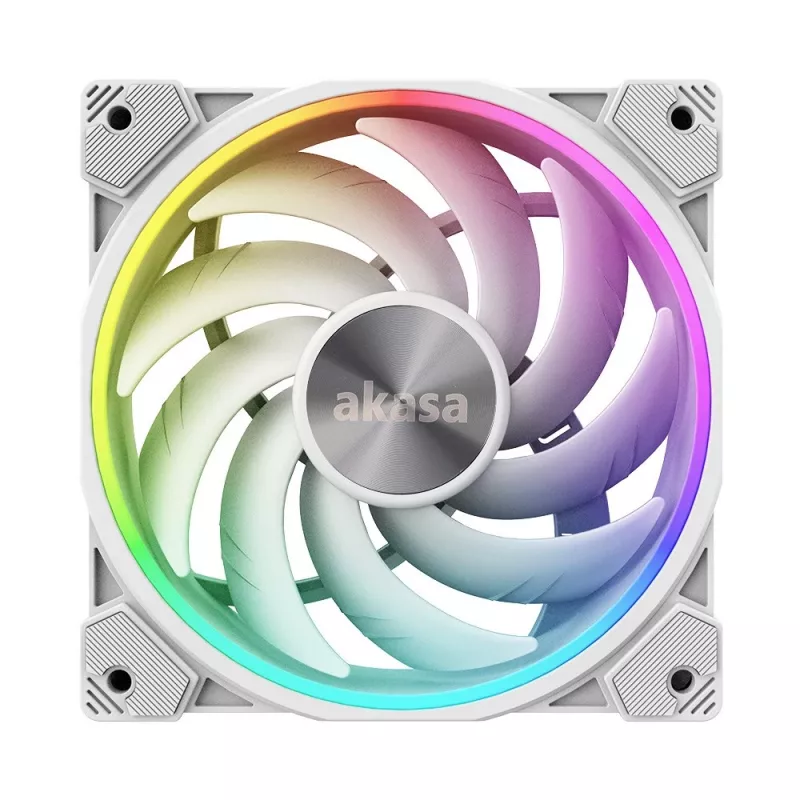

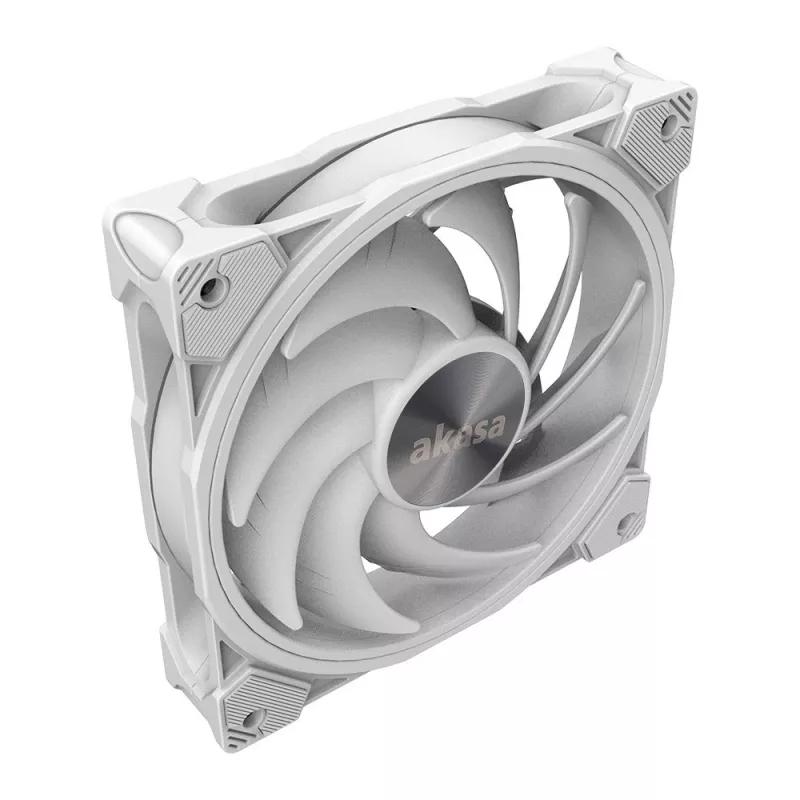

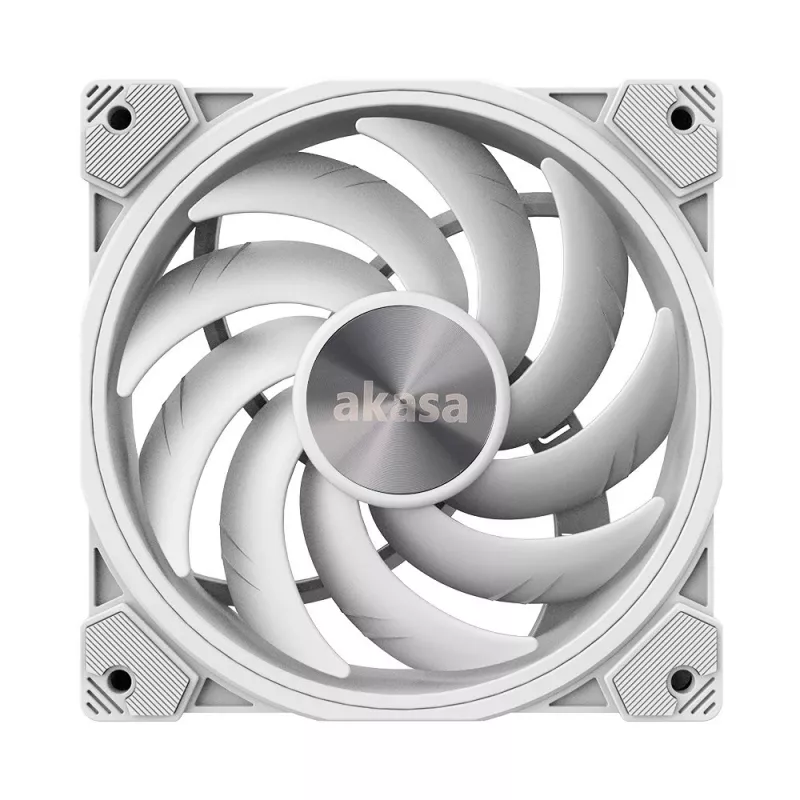

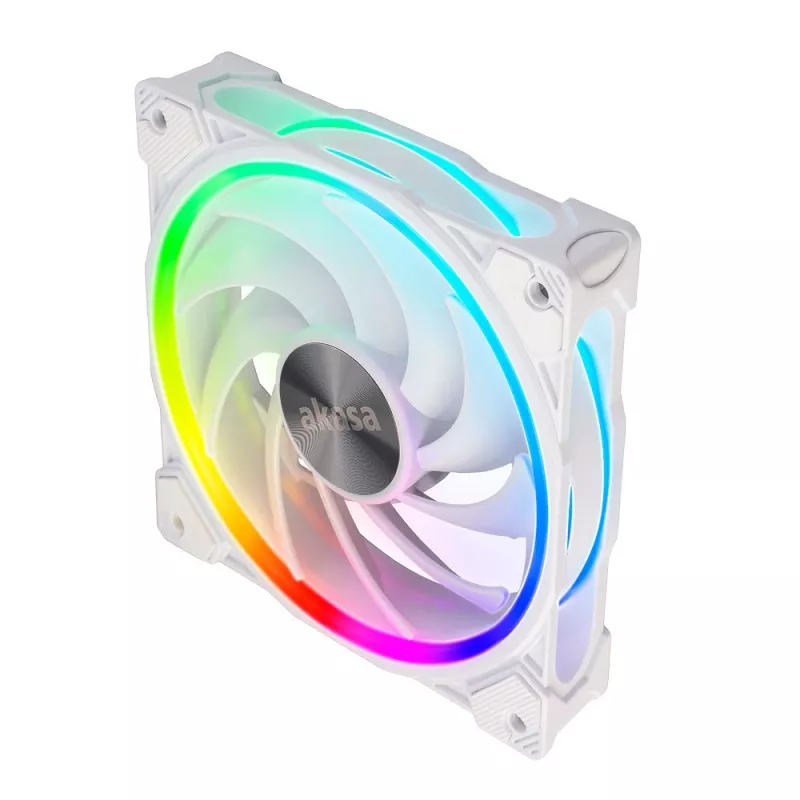

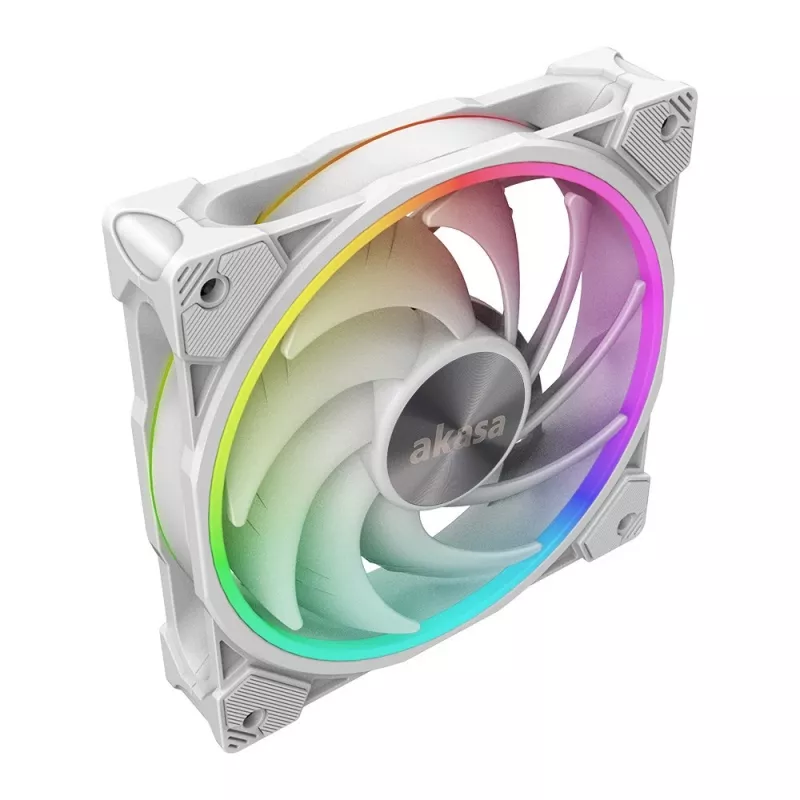

Heatsink/Radiator Akasa SOHO AR 12 cm Transparent White 500-2000 RPM HDB

The Akasa SOHO AR 12 cm transparent white fan is designed for case, heatsink and radiator cooling. It combines an advanced sickle blade profile, reinforced frame and 14 individually addressable RGB LEDs arranged in three light-ring zones. The fan supports motherboard synchronization with common RGB control software (Asus, ASRock, Gigabyte, MSI, Razer) and operates within a 500–2000 RPM range using Hydro Dynamic Bearing (MHD) technology for extended life and reduced noise.

Advantages

Advanced blade and rotor design deliver efficient airflow and static pressure while minimising turbulence and acoustic output. The MHD Hydro Dynamic Bearing increases oil capacity and distribution for smoother rotation and an estimated service life up to 40,000 hours. Intelligent PWM speed control adjusts fan speed according to load, keeping the system quiet at low workloads and providing sufficient cooling when needed. Reinforced frame and corner anti-vibration mounts reduce transmitted vibrations and contribute to quieter operation. The aRGB system with 14 addressable LEDs and three distinct zones offers over 16.8 million colour combinations and is certified for motherboard sync.

Suitable for (tasks / use cases)

• Case cooling for desktop PCs
• CPU heatsink fans
• Radiator fans in liquid cooling loops
• Systems requiring adjustable aRGB lighting and motherboard sync

Key specifications

• Fan diameter: 120 mm
• Speed range: 500–2000 RPM (PWM)
• Airflow: up to 52.9 CFM
• Static pressure: up to 1.75 mm-H2O
• Bearing type: MHD Hydro Dynamic Bearing
• LEDs: 14 individually addressable aRGB nodes, 3 light-ring zones, >16.8 million colours
• Colour: Transparent / White
• Dimensions: 120 × 25 × 120 mm
• Manufacturer code (MPN): AK-FN108-WH
• EAN: 4710679551449

How to use

Install the fan in the desired position inside the PC case, on a heatsink, or on a radiator using the supplied mounting screws. Connect the PWM power cable to a compatible motherboard fan header to enable intelligent speed control. Connect the aRGB cable to a compatible RGB header or controller from supported manufacturers to synchronise lighting. Ensure airflow orientation matches the intended intake or exhaust direction and that the fan has sufficient clearance from other components.

Recommendations

For optimal performance, use the fan with a motherboard that supports PWM and addressable RGB headers. Configure fan curves in BIOS or software to balance noise and cooling, and periodically clean the fan blades and frame to maintain airflow and prolong bearing life.
