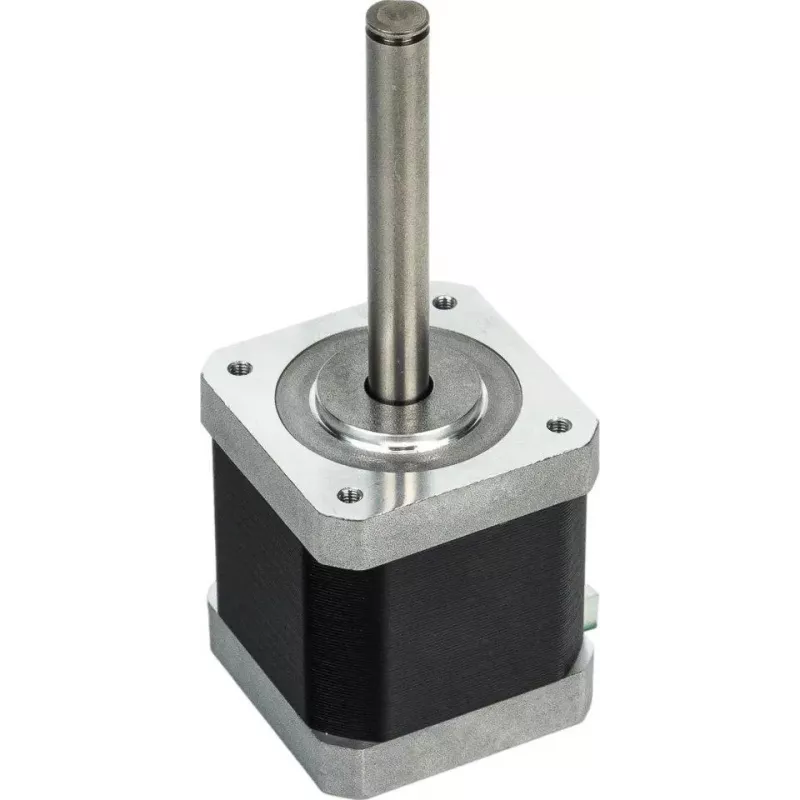

Flashforge 42 Motor for Guider 3 / Guider 3 Plus X Y Axis, replacement stepper motor

Replacement 42-sized stepper motor by Flashforge designed for the Guider 3 and Guider 3 Plus X and Y axes. This motor restores axis motion control and is compatible with the standard 42-format mounts and electrical interfaces used on the Guider 3 series. It is intended as a spare or repair part to maintain consistent positioning and print accuracy after wear or damage to the original motor.

Advantages

This Flashforge 42 motor offers the same physical dimensions and mounting pattern as the factory motor, enabling direct replacement without modification. It provides the torque and stepping resolution appropriate for the Guider 3 X and Y axes to preserve layer alignment and print repeatability. Electrical interface compatibility simplifies installation and reduces downtime during maintenance. Using a dedicated replacement motor helps avoid drift and missed steps that can affect print quality.

Suitable for

• Repairing a malfunctioning X-axis or Y-axis stepper on Flashforge Guider 3 and Guider 3 Plus
• Keeping a spare part on hand for workshop maintenance
• Replacing a worn motor to restore print accuracy and repeatability
• Upgrading motion components during routine service of compatible printers

Key specifications

• Stepper size: NEMA 17 (42-format) compatible dimensions
• Mounting: standard 42-format mounting pattern for Guider 3 series
• Electrical interface: compatible connector and wiring for Guider 3 X/Y axes
• Function: bipolar stepper motor suitable for precise axis positioning
• Typical performance: designed to provide adequate torque and stepping resolution for medium-duty printer axes

How to use

Power down the printer and disconnect it from mains before beginning replacement. Remove the covers or panels required to access the X or Y axis motor, disconnect the motor cable from the control board, and unfasten the mounting screws. Install the Flashforge 42 motor in the same orientation as the original unit, secure it with the original mounting hardware, and reconnect the motor cable ensuring correct pin alignment. After reassembling panels, power on the printer and run axis homing and a test print to verify correct direction, steps per millimetre, and smooth operation. If necessary, update motor current or step settings in the firmware or motor driver configuration to match the original specifications.

Recommendations

Install and service the motor only when the printer is powered off. Verify mechanical coupling, belt tension, and pulley alignment when replacing an axis motor to avoid introducing backlash or misalignment. Use factory or trusted configuration values for motor current and microstepping; confirm movement by homing and a calibration print before production use.
