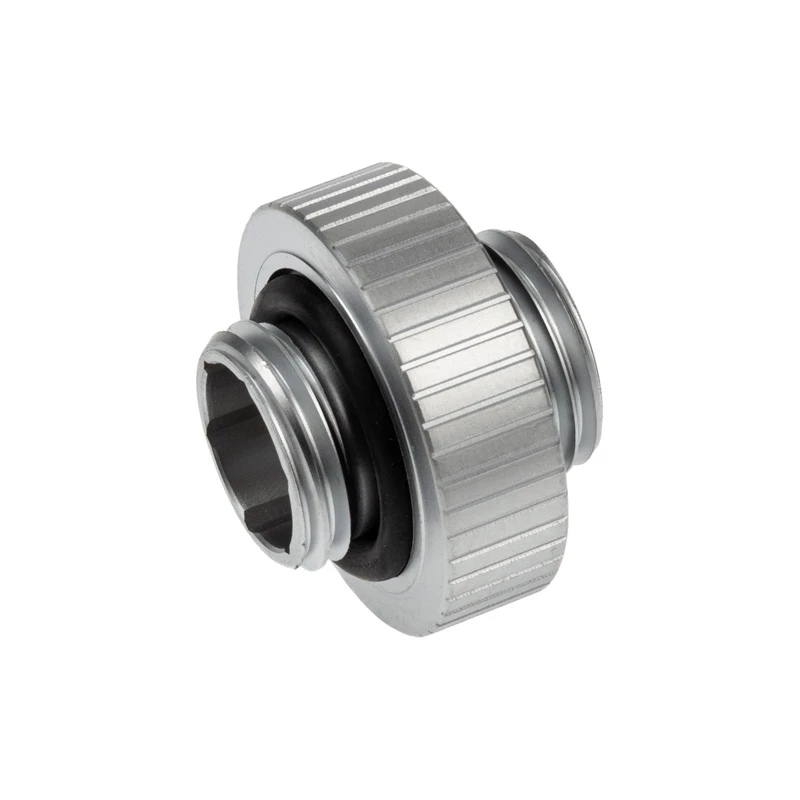

Fitting EK Water Blocks Brass Titanium 7mm Height 2.3cm Diameter

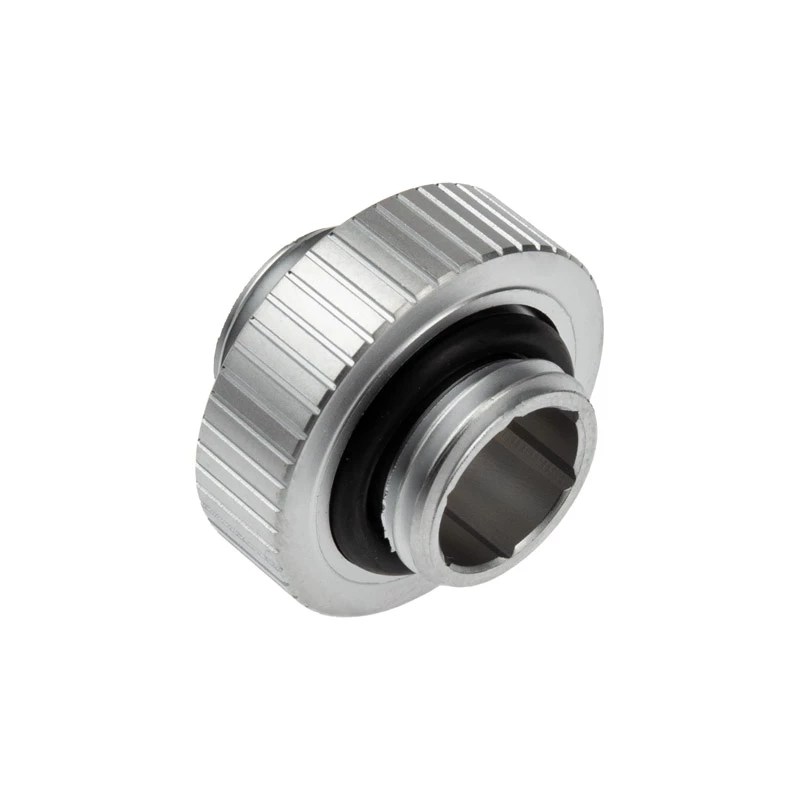

EK-Quantum Torque Extender Static MM 7 is a male-threaded brass extender with male G1/4" threads on both ends, designed to connect two water-cooling components that each have female G1/4" ports. The extender is CNC machined and finished in satin titanium; its interior is left unpainted to minimise potential contaminants in the cooling loop. EPDM O-rings provide the seal.

Advantages

The brass construction and precise CNC machining ensure dimensional accuracy and long-term durability. The satin titanium finish offers corrosion resistance and a consistent industrial appearance. Internal surfaces are uncoated to reduce the risk of introducing particulates into the liquid cooling loop, and EPDM O-rings deliver reliable sealing for leak-free connections. The part is compatible with the rest of the Quantum Torque family, allowing modular configurations and aesthetic customization with optional color rings.

Suitable for

• Connecting two water-cooling components with female G1/4" threads
• Extending fittings in PC custom liquid cooling loops
• Modular setups using Quantum Torque series components

Key specifications

• Brand: ek water blocks
• Model / MPN: 3831109828441
• EAN: 3831109828441
• Material: CNC machined brass
• Finish: satin titanium (externally finished, internal surface unpainted)
• Thread type: male G1/4" on both ends
• Height: 7 mm
• Diameter: 23 mm
• Sealing: EPDM O-rings

How to use

Thread the extender into the female G1/4" port of the first component by hand until firm, then tighten to the required torque using appropriate tools while avoiding over-tightening. Align the second component and thread it onto the opposite male G1/4" end, ensuring EPDM O-rings are seated correctly to form a leak-free connection. Inspect the joint after installation and perform a pressure or leak test before normal operation of the cooling loop.

Recommendations

Use compatible Quantum Torque fittings and standard G1/4" ports. Avoid aggressive solvents or abrasive cleaners on the interior surface to prevent contamination. When assembling, follow manufacturer recommended torque values and perform leak testing before powering the system.
