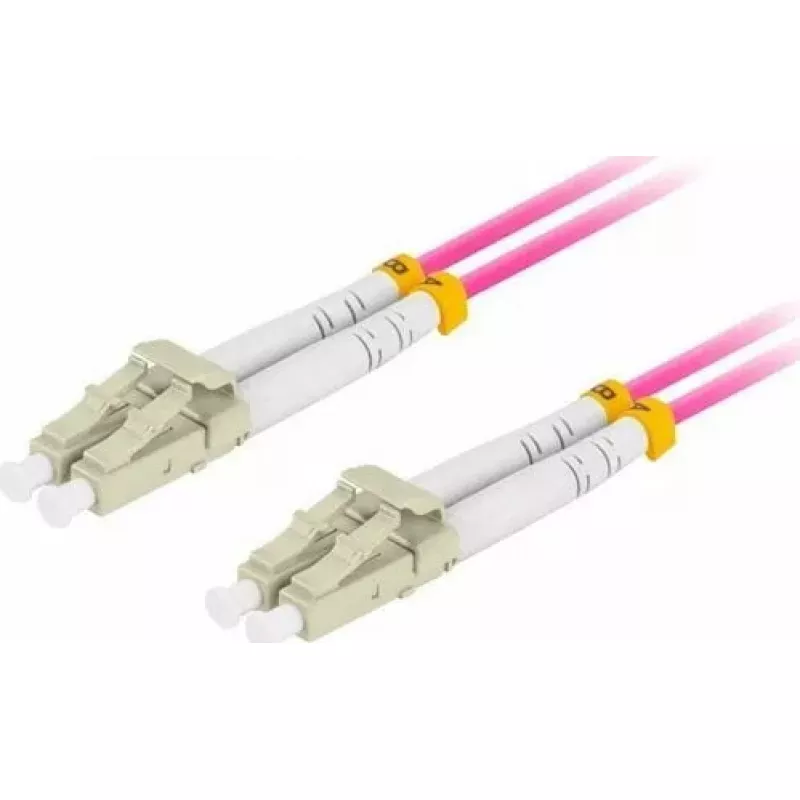

Fiber patchcord LANBERG MM LC/UPC-LC/UPC duplex 3.0 mm OM4 50/125 LSZH 0.5 m purple

LANBERG fiber patchcord MM LC/UPC-LC/UPC duplex 3.0 mm OM4 50/125 LSZH 0.5 m in purple is a short multimode fiber cable designed for high-speed, short-range optical links. It uses OM4 50/125 µm multimode fiber and LC/UPC duplex connectors on both ends, in a compact 3.0 mm jacket with a low-smoke, zero-halogen (LSZH) sheath. The cable is intended for installation in data centers, server rooms and patch panels where low insertion loss, compact connector form factor and improved fire safety are required.

Advantages

This LANBERG OM4 patchcord provides higher modal bandwidth compared with lower-grade multimode fibers, supporting greater aggregated data throughput for short-range applications. The LC/UPC duplex connectors ensure precise alignment and low back reflection, while the 3.0 mm round jacket offers flexibility for routing in dense cable environments. The LSZH sheath reduces toxic smoke and corrosive gases in case of fire, meeting safety needs in enclosed spaces.

Suitable for

• Short-range links in data centers and server racks
• Connections between switches, transceivers and patch panels
• Enterprise network backbone segments and distribution frames
• High-density fiber installations and optical distribution frames

Key specifications

• Fiber type: Multimode OM4, 50/125 µm
• Connector type: LC/UPC duplex on both ends
• Cable diameter: 3.0 mm round jacket
• Jacket material: LSZH (low-smoke, zero-halogen)
• Length: 0.5 m
• Color: Purple

How to use

Install the patchcord by plugging the LC duplex connectors into corresponding LC ports on transceivers, patch panels or active equipment. Ensure connectors are clean before mating to minimize insertion loss; use a suitable fiber cleaning tool or lint-free wipes and isopropyl alcohol. Route the cable to avoid tight bends below the minimum bend radius and secure it in cable management trays or panels to prevent strain on the connectors.

Recommendations

For reliable performance, keep connector end-faces free of dust and contaminants, avoid excessive bending and do not exceed recommended tensile load. Use OM4-rated transceivers and infrastructure for optimized bandwidth; in fire-sensitive areas, the LSZH jacket provides reduced smoke emissions.
