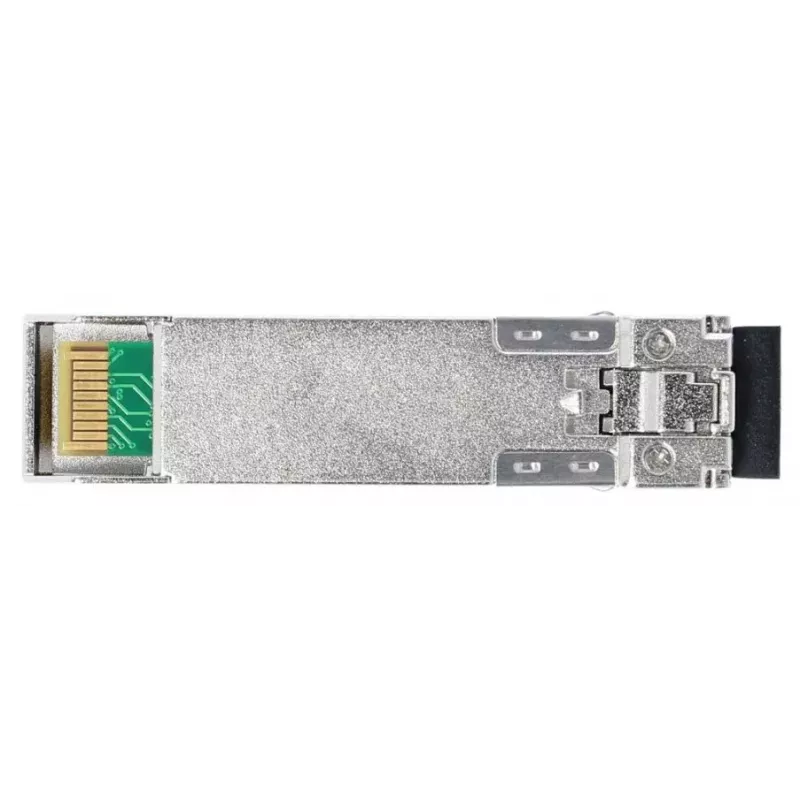

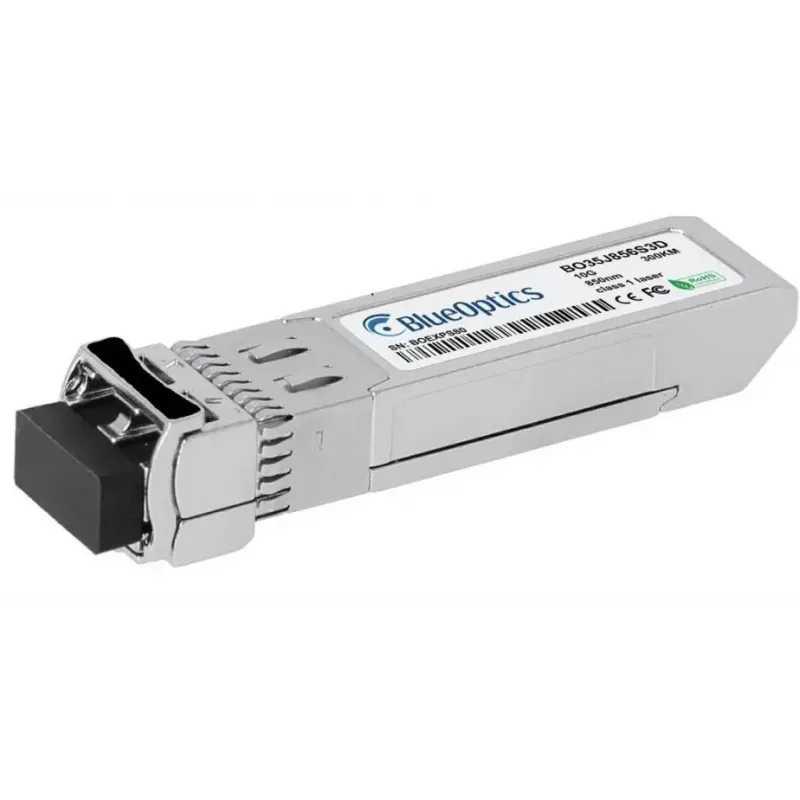

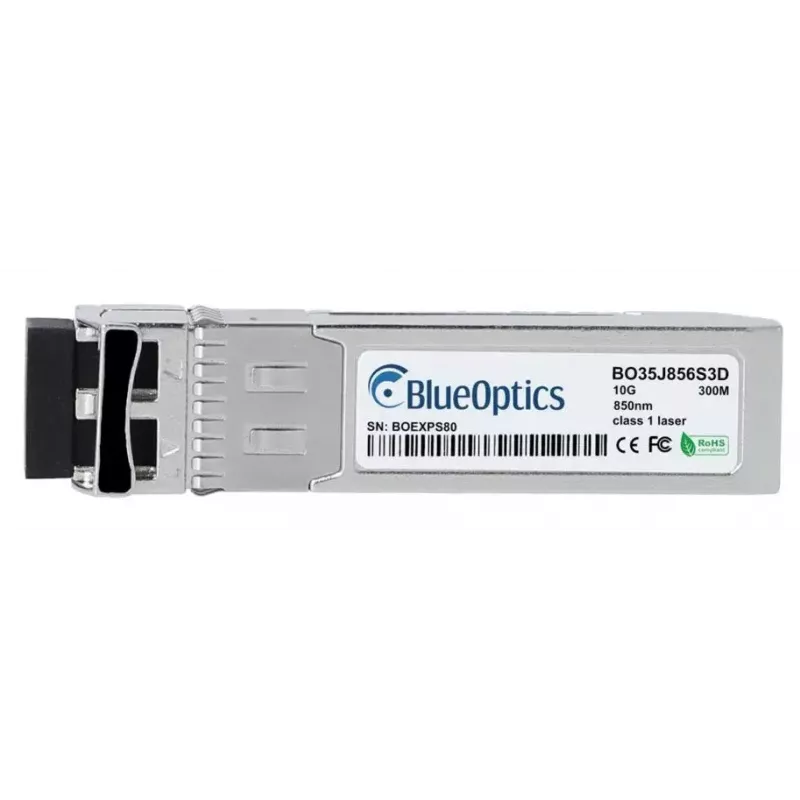

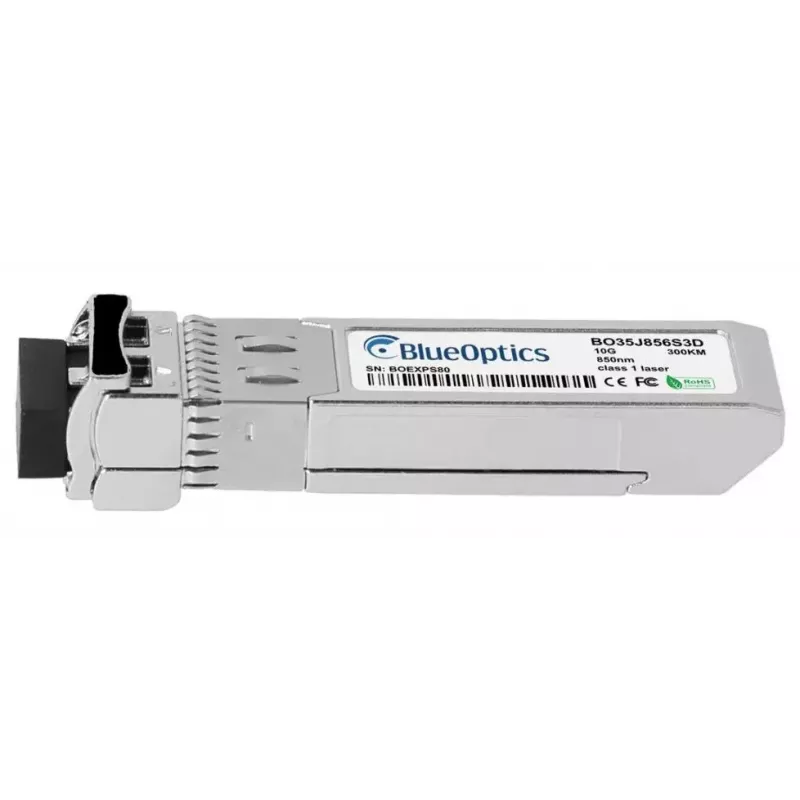

Fiber optic transceiver module BlueOptics SFP-10G-SR-NE-BO SFP+ LC Aluminium 20g

The BlueOptics SFP-10G-SR-NE-BO is a fiber optic SFP+ transceiver module designed for short-range 10GBASE-SR links. It uses an LC duplex connector and multimode optics with 850 nm transmitter and receiver wavelengths to support 10 Gbit/s data transmission over multimode fiber. The module is housed in an aluminium case and weighs approximately 20 g, offering a compact, MSA-compliant SFP+ form factor suitable for switches, routers, storage systems and other network devices that accept compatible 10G SFP+ optics.

Advantages

The module conforms to MSA mechanical and electrical specifications and implements 10GBASE-SR multimode optical signaling with LC duplex connectivity. Built with tested components and supporting Digital Diagnostics Monitoring (DDM/DOM) when the host supports it, it delivers real-time parameters such as supply voltage, laser bias current, transmit output power, received input power and temperature. Its aluminium housing provides mechanical protection while keeping the unit lightweight for easy installation and handling.

Suitable for

Key specifications

How to use

Insert the BlueOptics SFP-10G-SR-NE-BO into an SFP+ cage of a compatible network device until it latches. Connect LC duplex multimode fiber patch cords to the module’s LC ports, ensuring correct transmit/receive orientation. Configure the host device for 10G operation and verify link status through device management. If DDM/DOM is required, enable or query the diagnostic registers via the host management interface, provided the platform supports DDM/DOM access.

Recommendations

Use high-quality multimode patch cords and maintain clean fiber endfaces to ensure optimal signal performance. Verify that the network device firmware accepts third-party SFP+ modules and, if possible, test one module in your environment before large-scale deployment. Observe ESD precautions and avoid mechanical stress on the fiber and connector when installing or removing the transceiver.
