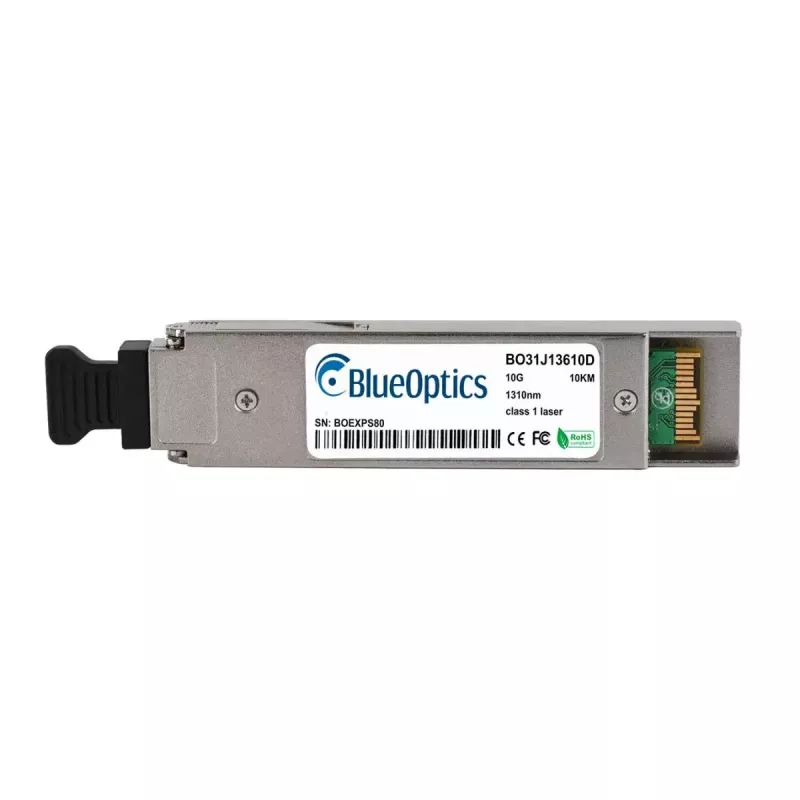

Fiber optic transceiver module BlueOptics PAN-XFP-LR-BO XFP 10000 m

The BlueOptics PAN-XFP-LR-BO XFP 10000 m is a fiber optic transceiver module designed for 10GBASE-LR single-mode links with an XFP interface. Constructed from aluminium and weighing approximately 20 g, the module supports optical transmission distances up to 10,000 m via LC duplex connectors. It is intended for installation in network equipment that accepts XFP 10GBASE-LR transceivers and provides bidirectional optical transmission at 1310 nm for reliable long-reach connectivity.

Advantages

This transceiver offers long-distance single-mode operation up to 10 km while conforming to XFP and MSA mechanical and electrical specifications. The aluminium housing provides mechanical stability and thermal dissipation in compact form, and the light 20 g weight simplifies handling and installation. The module supports Digital Diagnostics Monitoring (DDM/DOM) for real-time reporting of supply voltage, laser bias current, transmit power, receive power and temperature when the host hardware exposes these functions. Components are selected to meet industry performance expectations for 10G optical links.

Suitable for

Key specifications

How to use

Insert the BlueOptics PAN-XFP-LR-BO into an XFP port on compatible network equipment following the equipment vendor’s hot-swap and handling guidelines. Connect LC duplex single-mode fiber patch cords, ensuring correct transmit/receive orientation. Verify link status through the host device management interface and, if available, use the DDM/DOM functions to monitor optical parameters. Observe standard electrostatic discharge precautions during handling and ensure the transceiver is used within the equipment’s supported operating conditions.

Recommendations

For optimal range and signal quality, use single-mode fiber rated for 10GBASE-LR and high-quality LC duplex patch cords, avoid tight bends on fiber, and confirm host compatibility with XFP 10GBASE-LR modules and DDM/DOM features.
