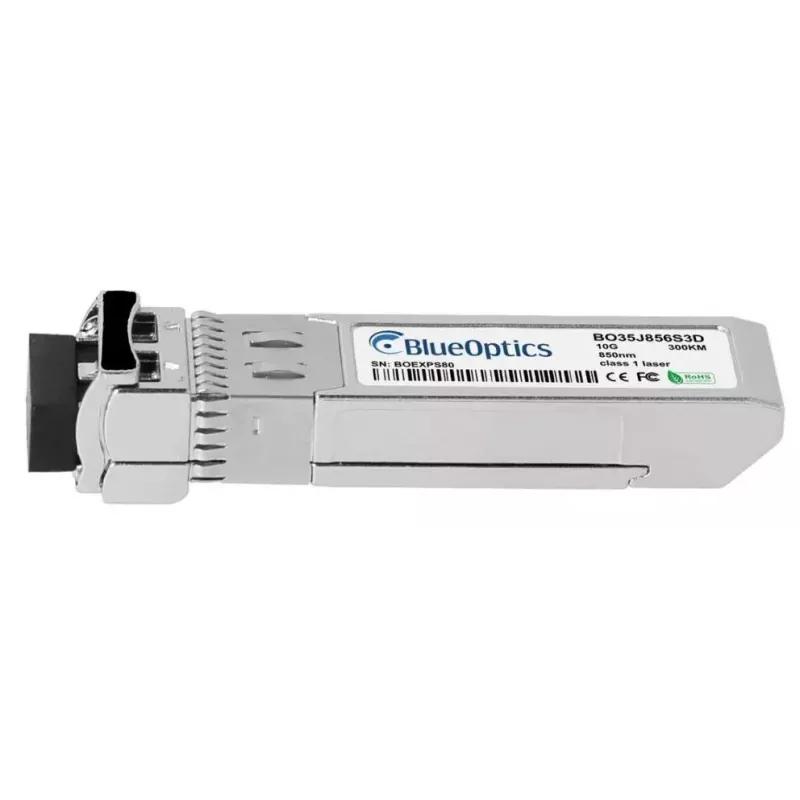

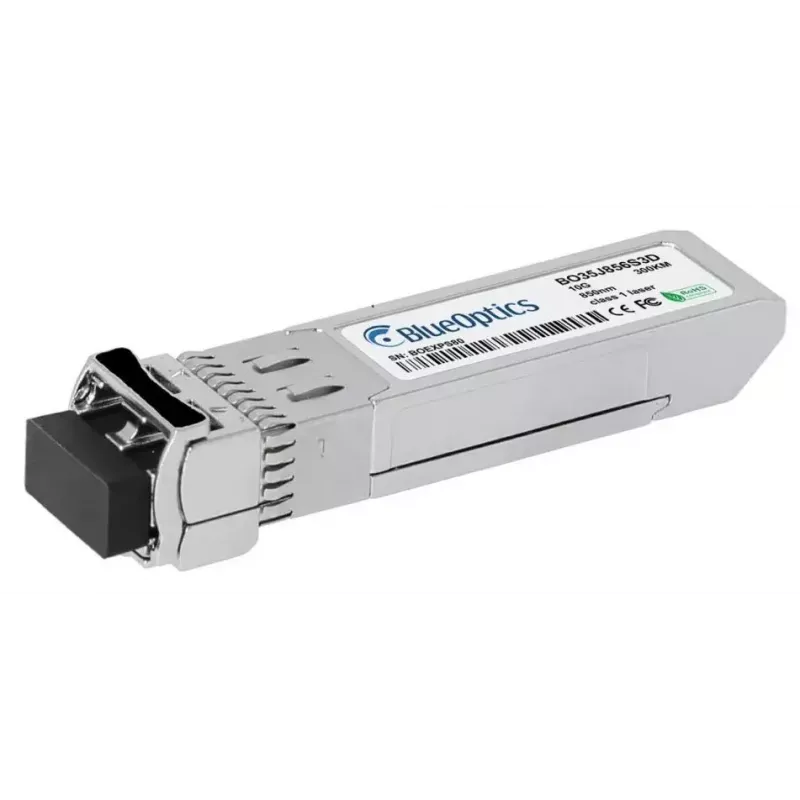

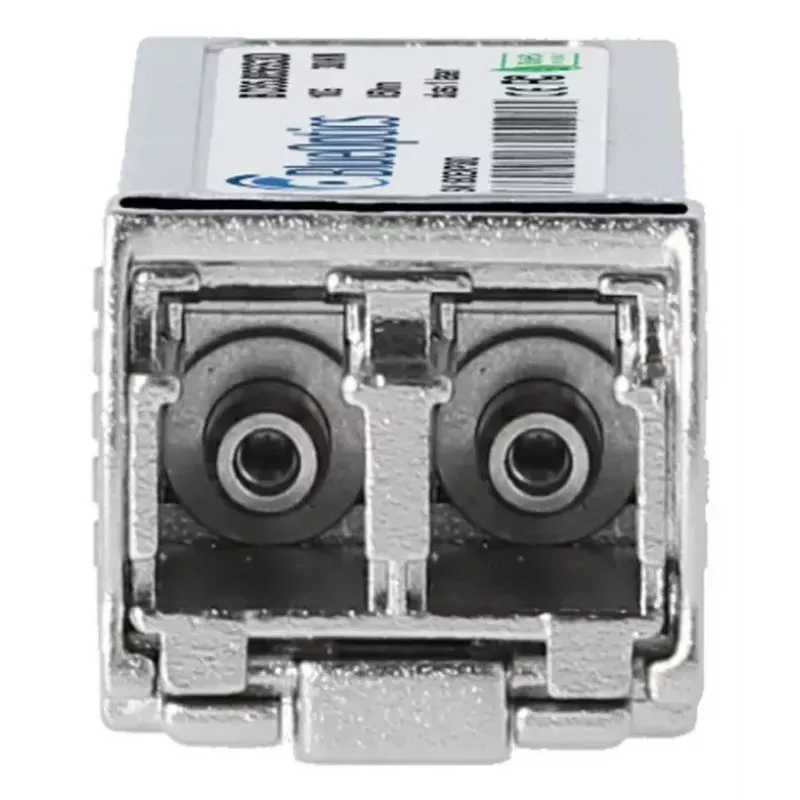

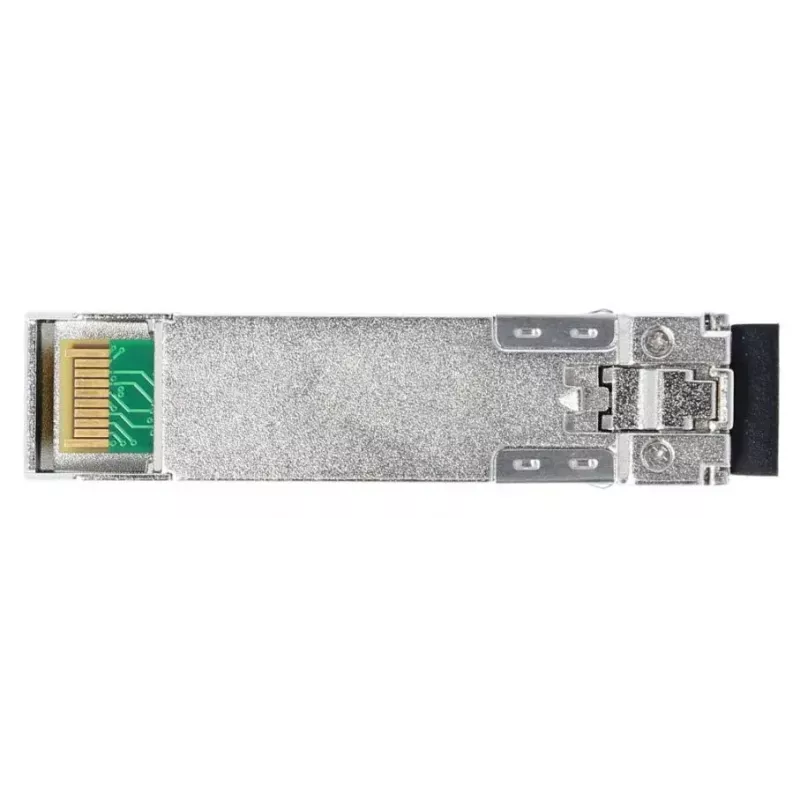

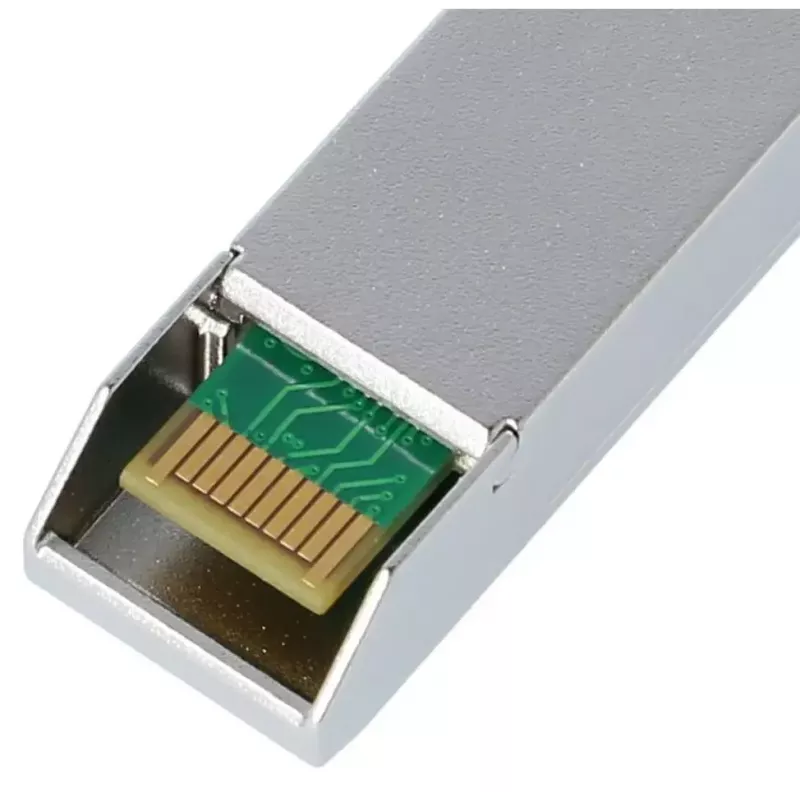

Fiber optic transceiver module BlueOptics PAN-T-S-PLUS-SR-BO SFP+ LC Aluminium

The BlueOptics PAN-T-S-PLUS-SR-BO is a 10GBASE-SR SFP+ fiber optic transceiver module with an LC duplex connector and an aluminium housing. Designed for multimode fiber links, it provides high-speed optical data transmission up to 10 Gbps for short-reach applications. The module is lightweight (0.02 kg) and follows common MSA form-factor conventions for easy integration into compatible network equipment.

Advantages

The module offers compatibility with SFP+ ports and supports short-range multimode fiber connections at 850 nm for simultaneous transmit and receive channels via LC duplex. Its aluminium casing delivers a compact, durable form factor that is easy to handle and install. Digital diagnostics (where supported by host hardware) simplify monitoring of link parameters. The design aims for reliable operation in standard networking environments and straightforward replacement or upgrade of existing transceivers.

Suitable for

Key specifications

How to use

Ensure the host device supports SFP+ 10GBASE-SR modules and, if needed, digital diagnostic monitoring (DDM/DOM). With the device powered down or according to the vendor's hot-swap guidance, insert the transceiver into an SFP+ slot until it latches. Connect LC duplex multimode fiber patch cords to the module's transmit and receive ports, matching fiber types and polarity. After installation, verify link status and configuration in the host system's network interface or switch management console.

Recommendations

Use multimode fiber and certified LC patch cords for optimal performance; avoid tight bends in fiber runs and ensure proper cleaning of connectors before mating. Confirm host compatibility with SFP+ 10GBASE-SR modules and enable DDM/DOM only if supported by the equipment to access real-time diagnostic data.
