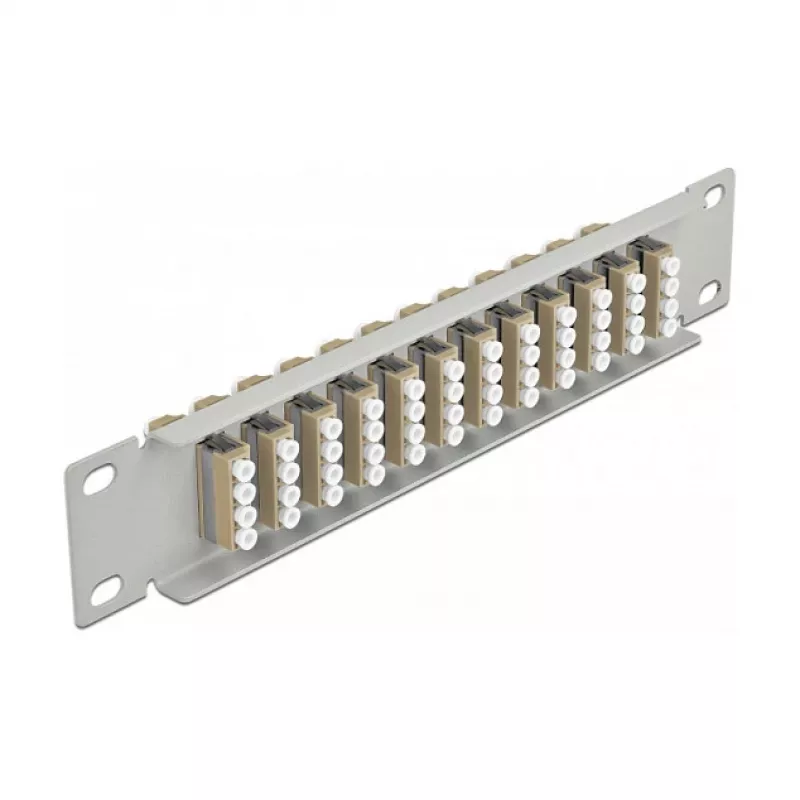

Fiber Optic Patch Panel DeLOCK 10 inch 12 Port LC Quad Beige 1U Grey

The DeLOCK 10" 12 Port LC Quad fiber optic patch panel is a 1U rack-mount unit designed for organized fiber management in network cabinets. It provides twelve LC Quad couplers that allow easy connection of LC fiber male connectors. The panel is manufactured in beige and grey metal and fits standard 10" network racks.

Advantages

The panel offers a compact 1U design that saves rack space while providing twelve LC Quad ports for high-density fiber termination. Metal construction ensures durability and stable mounting. LC Quad couplers simplify mating of LC connectors and help maintain neat cable routing.

Suitable for

• Fiber optic patching in 10" network cabinets
• High-density LC connector deployments
• Telecommunications and data center horizontal cabling

Key specifications

• Ports quantity: 12 (LC Quad)
• Form factor: 1U rack-mount for 10" cabinets
• Material / colour: metal, beige and grey
• Dimensions (approx.): 44 mm width × 10 mm height × 254 mm depth
• Brand: DELOCK, MPN: 66798, EAN: 4043619667987

How to use

Install the patch panel into a compatible 10" network cabinet using standard rack screws. Terminate fiber patch cords with LC connectors into the LC Quad couplers, ensuring proper alignment and secure mating. Route and secure fiber cables to avoid sharp bends and mechanical stress.

Recommendations

For reliable performance, use clean LC connectors and appropriate fiber patch cords. Avoid exceeding minimum bend radius for the fiber type in use and secure cables to prevent strain on the couplers.
