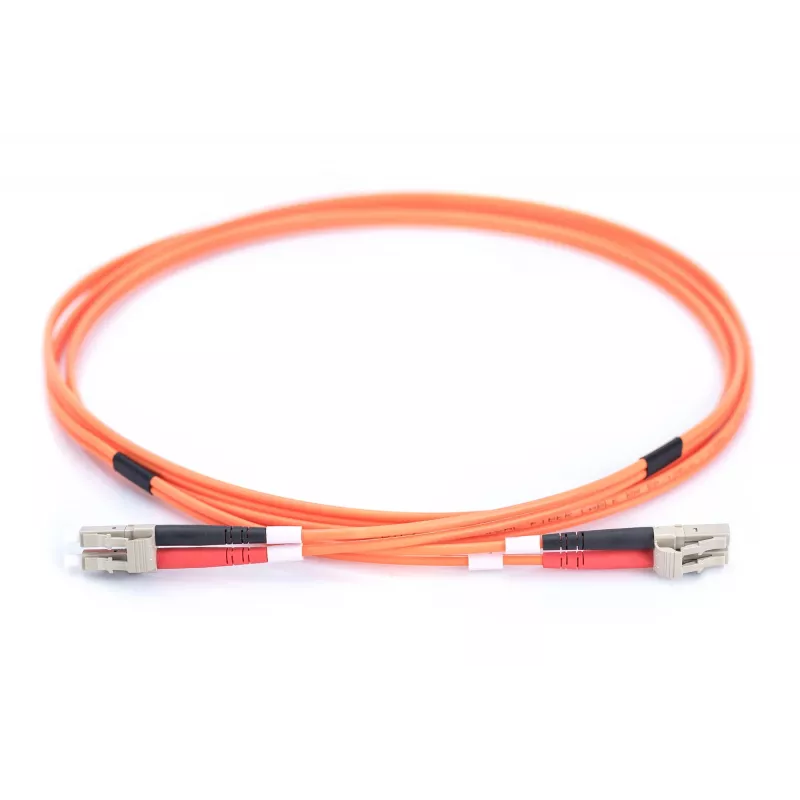

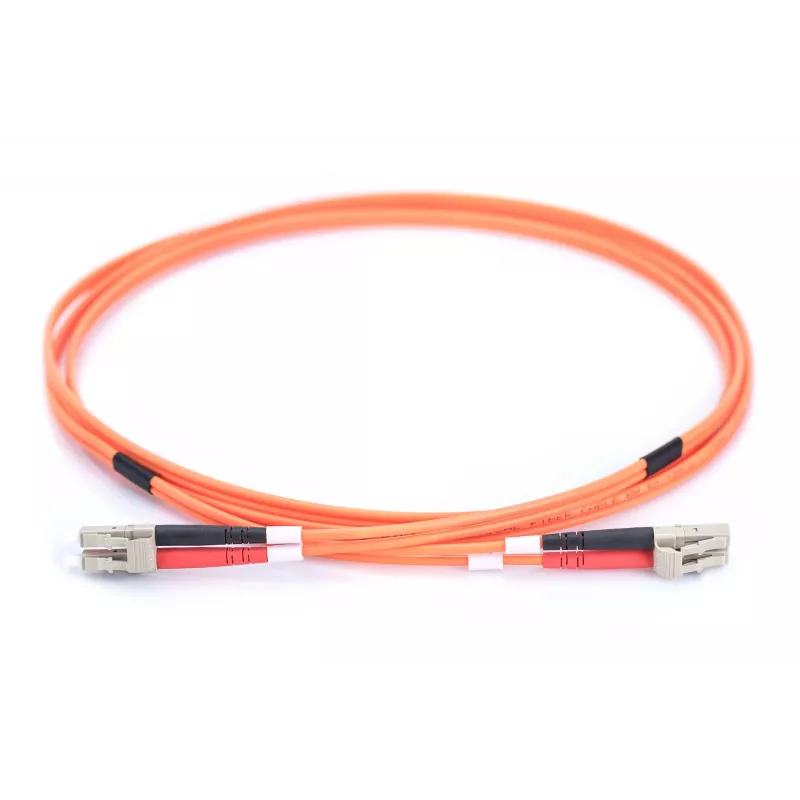

Fiber Optic Patch Cord Digitus DK-2533-01

The Digitus Fiber Optic Patch Cord DK-2533-01 is a 1 m multimode LC-to-LC duplex cable with OM2 50/125 µm fiber, designed for reliable data transmission in network and data centre environments. It supports full-duplex links and follows modern fibre standards to ensure consistent optical performance for short- to medium-range connections.

Advantages

This LC to LC multimode patch cord offers low insertion loss, consistent OM2 50/125 µm core performance and a compact LC connector form factor. The 1 m length provides a tidy connection between nearby devices while the duplex configuration supports simultaneous transmit and receive channels.

Suitable for

• Interconnecting network equipment in data centres
• Patch panels to switches or servers
• Short- to medium-range multimode fibre links

Key specifications

• Brand: DIGITUS
• Model / MPN: DK-2533-01
• EAN: 4016032249030

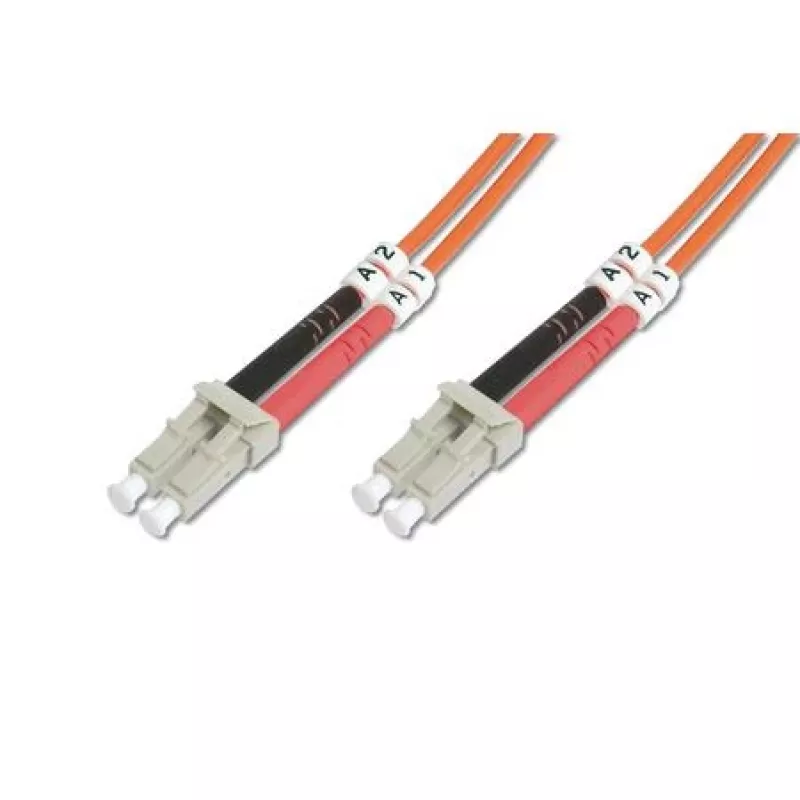

• Connector type: LC to LC duplex
• Fiber type: Multimode (MM) OM2
• Core/cladding: 50/125 µm
• Length: 1 m

How to use

Connect one LC connector to the source device and the matching LC connector to the destination device or patch panel, ensuring proper alignment of transmit and receive channels. Avoid bending the cable beyond its minimum bend radius and secure the cable to prevent strain on the connectors.

Recommendations

Use the patch cord in controlled indoor environments, inside racks or cable trays. Inspect connectors for dust and clean with appropriate fibre cleaning tools before mating to maintain optimal optical performance.
