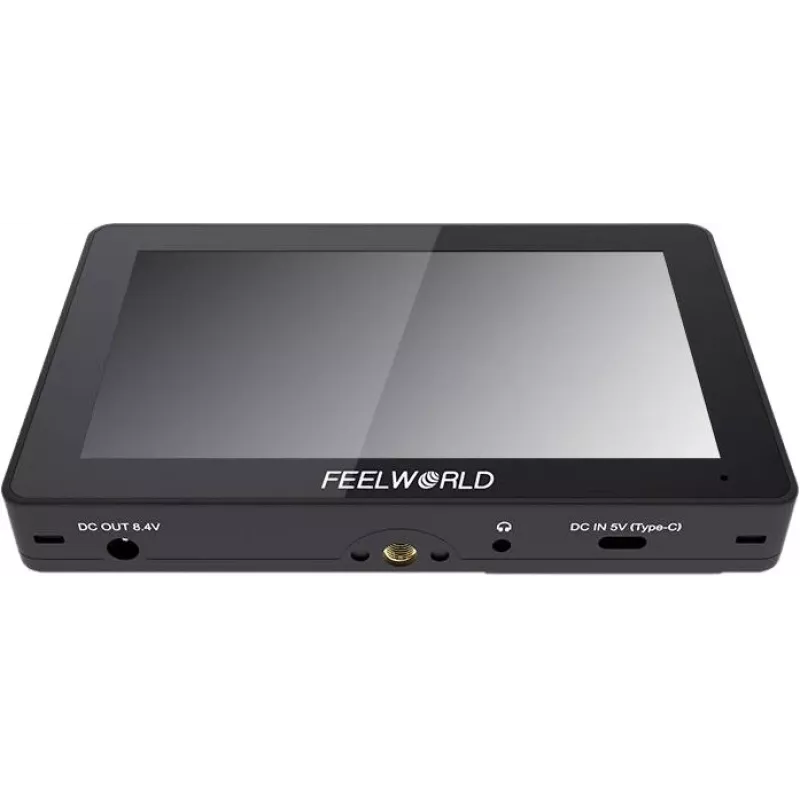

FEELWORLD F5PROV4 5.5 inch Full HD IPS Touchscreen On-Camera Monitor with 3D LUT, 4K HDMI Loop-Out, Sony NP-F Power

On a busy film set, the camera operator needs a reliable monitor that shows exactly what the lens sees. The FEELWORLD F5PROV4 steps in with a 5.5-inch Full HD IPS touchscreen, delivering sharp, accurate images even in bright daylight. Its 500 cd/m² brightness and 1000:1 contrast ratio keep details visible, while the 1920x1080 resolution ensures every frame is crisp. A single HDMI input accepts up to 4K signals, and the HDMI output loops out to a director's monitor or recorder without lag. Power comes from a standard Sony NP-F battery, and a DC output can feed compatible cameras, reducing battery swaps on long shoots. Built-in monitoring tools—histogram, peaking, false colors, zebras, and more—help nail focus and exposure. Load custom 3D LUTs via USB to preview the final grade on set. Three 1/4"-20 threads allow flexible mounting on rigs, gimbals, or tripods. Whether you're shooting a documentary, music video, or corporate interview, the F5PROV4 keeps your framing and focus in check.

Key specifications

• 5.5-inch IPS LCD touchscreen, 1920x1080 Full HD
• 500 cd/m² brightness, 1000:1 contrast, 80°/80° viewing angles
• 1x HDMI input (up to 4K), 1x HDMI loop-out, 1x 3.5mm headphone jack
• Power: Sony NP-F battery plate, DC 12V input, USB-C 5V input, DC 8V output for camera

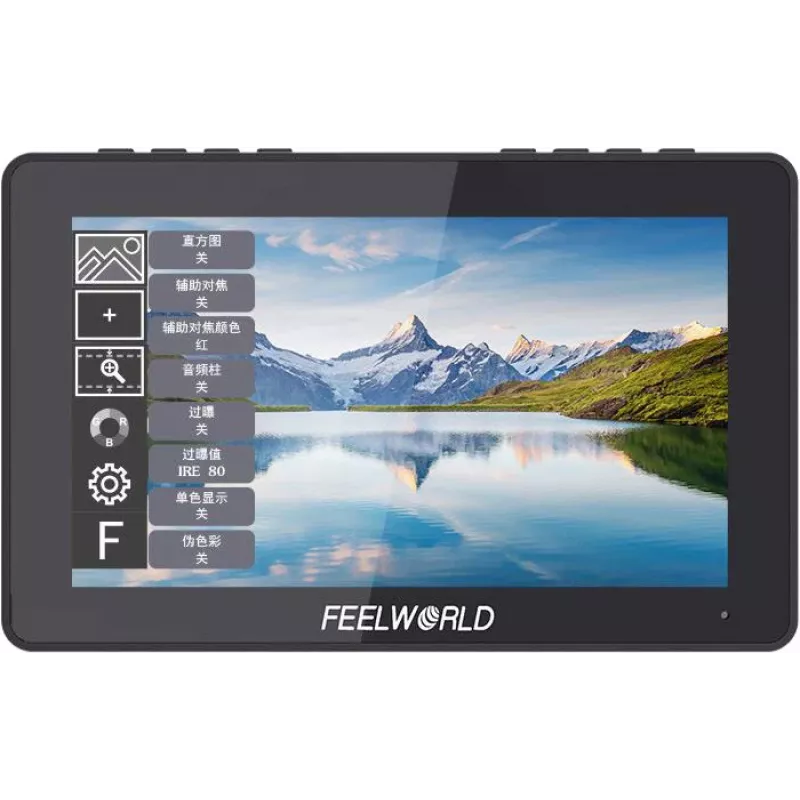

• Supports 3D LUTs via USB, multiple monitoring tools (histogram, peaking, false colors, zebras, nine grid, anamorphic, image flip, zoom, safe area, etc.)

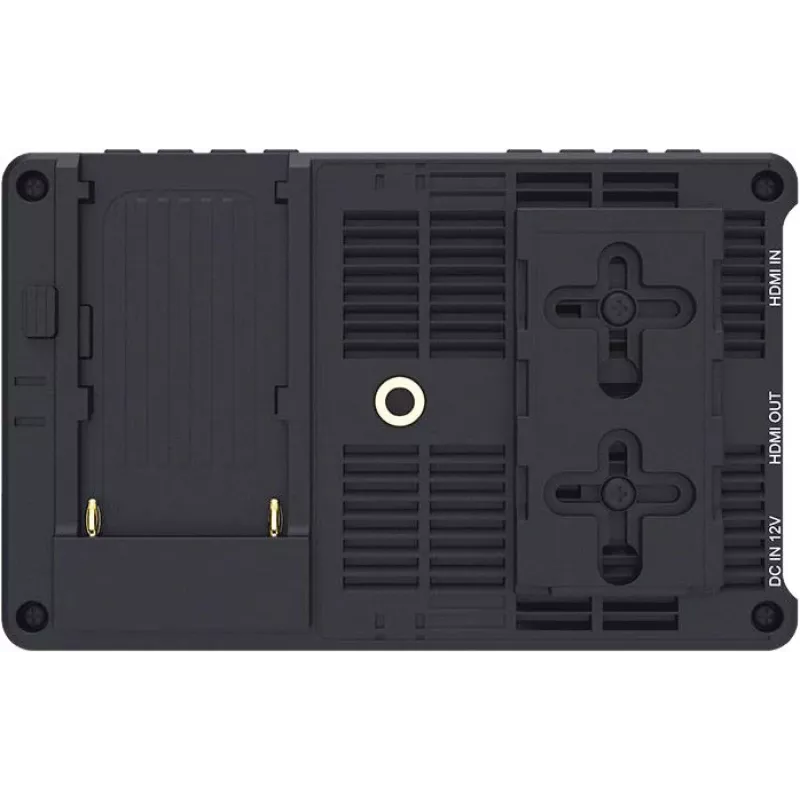

• Three 1/4"-20 mounting threads (top, bottom, right), ABS plastic

Why choose it

The F5PROV4 combines a bright, touch-sensitive display with professional monitoring aids in a lightweight, durable body. Its 4K HDMI loop-out lets you send a clean signal to a director's monitor or recorder, while the DC output powers your camera from the same NP-F battery, streamlining your rig. Custom 3D LUT support means you can preview your final color grade on set, saving time in post.

Ideal use cases

• Documentary and run-and-gun shooting where a compact, daylight-viewable monitor is essential
• Music videos and commercials requiring precise focus and exposure control
• Corporate interviews and live events needing a reliable loop-out for client monitoring
• Gimbal and handheld rig setups where multiple mounting points are a plus

Good to know

The monitor's touchscreen interface makes navigating menus and toggling tools fast, even when wearing gloves. It runs on widely available Sony NP-F batteries (F550, F750, F970), and the ABS plastic housing keeps weight down without sacrificing durability. A 3.5mm headphone jack lets you monitor audio directly from the HDMI signal.
