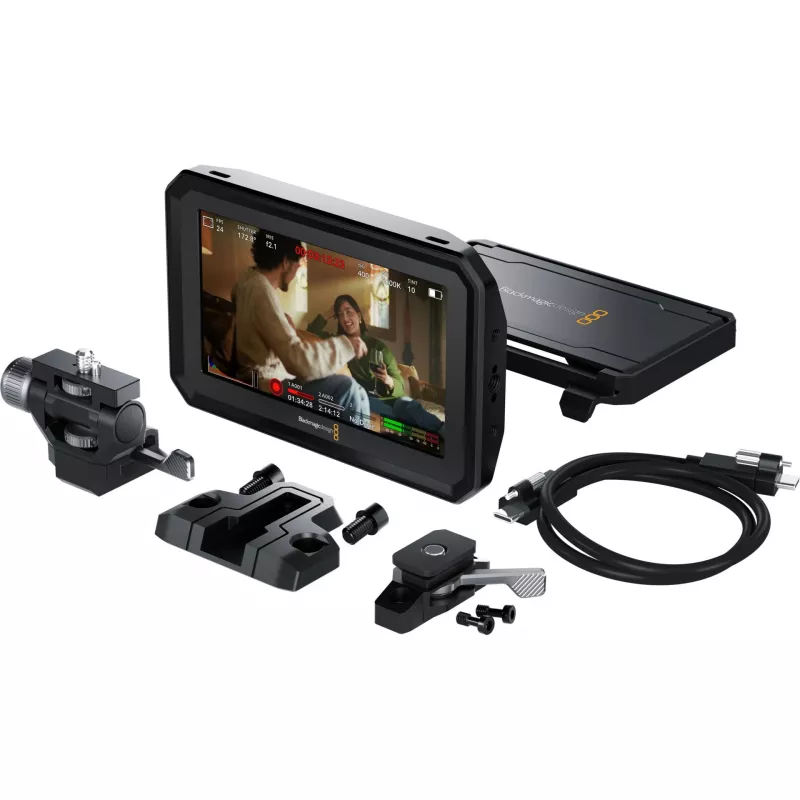

Blackmagic Design Pyxis Monitor Kit

The Blackmagic Design Pyxis Monitor Kit is an essential accessory for the Pyxis Cinema Camera, providing a high-quality 15.6-inch Full HD LCD monitor with professional monitoring tools. Designed for on-set use, this kit includes a sun hood, mounting plate, and cables for immediate setup.

Advantages

This monitor kit offers a bright 1920x1080 display with advanced features like focus assist, false color, zebras, and frame guides. It supports 3D LUTs and includes waveform, vectorscope, histogram, and RGB parade scopes for precise exposure and color grading. The integrated V-Mount battery plate allows for portable power, while multiple mounting points ensure flexible rigging.

Suitable for

• Professional cinematographers using Blackmagic Design Pyxis Cinema Camera
• On-set monitoring for film and video production
• Studio and field applications requiring accurate color and focus

Key specifications

• Display: 15.6-inch LCD, 1920x1080 Full HD
• Video Input: 1x 12G-SDI, 1x HDMI 2.0
• Video Output: 1x 12G-SDI Loop Out
• Audio Output: 1x 3.5mm headphone jack
• Power: 4-pin XLR (12-18V DC) or USB-C, V-Mount battery plate
• Construction: Aluminum alloy frame
• Included: Sun hood, mounting plate, 2x 12G-SDI cables, 1x USB-C cable

Recommendations

For best results, pair with the Blackmagic Design Pyxis Cinema Camera and use the included cables for reliable 12G-SDI connectivity. The sun hood is recommended for outdoor use to reduce glare.
