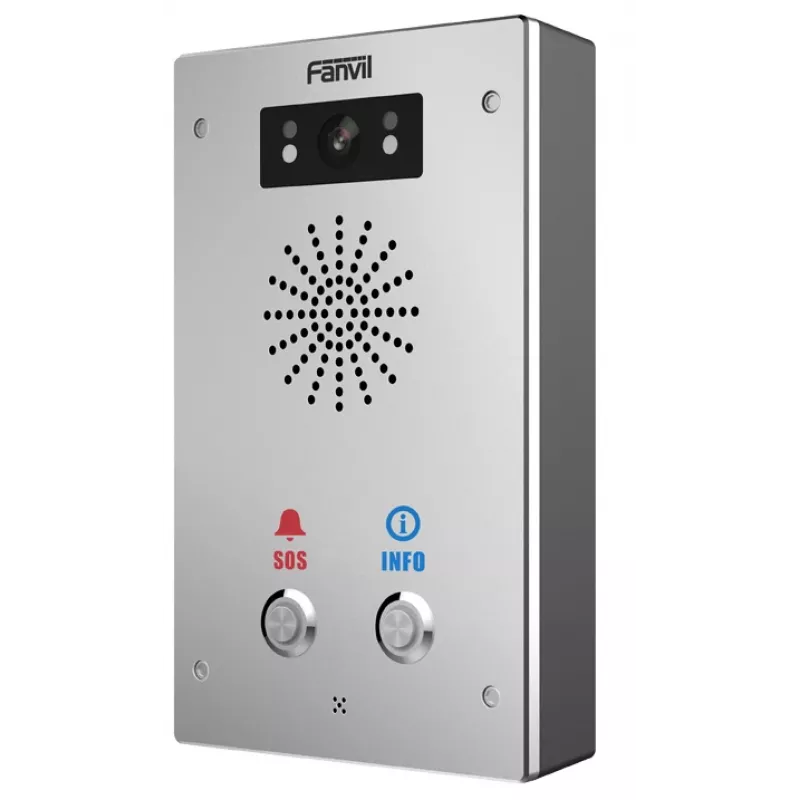

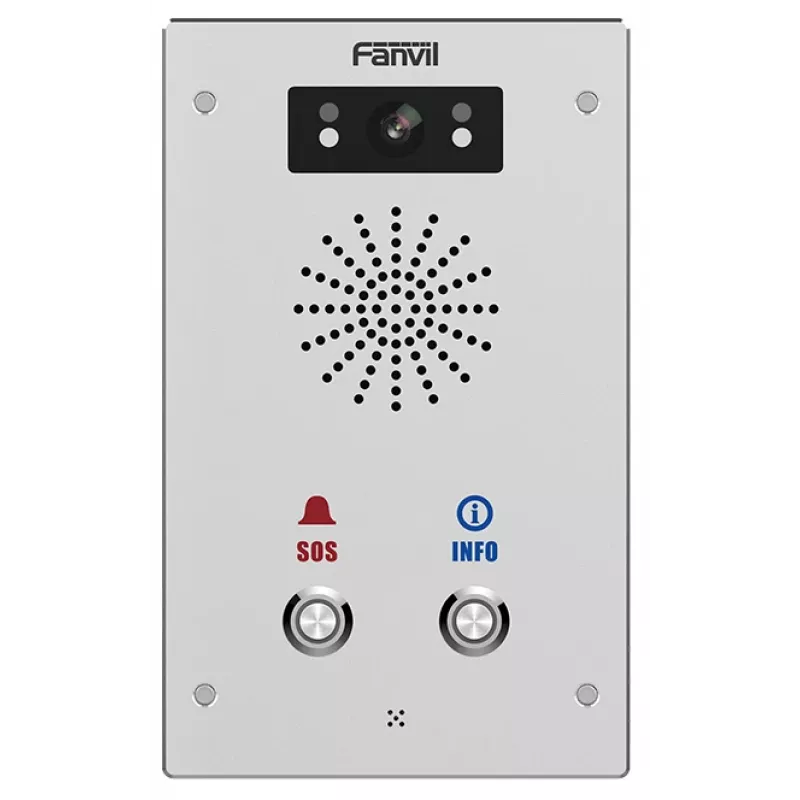

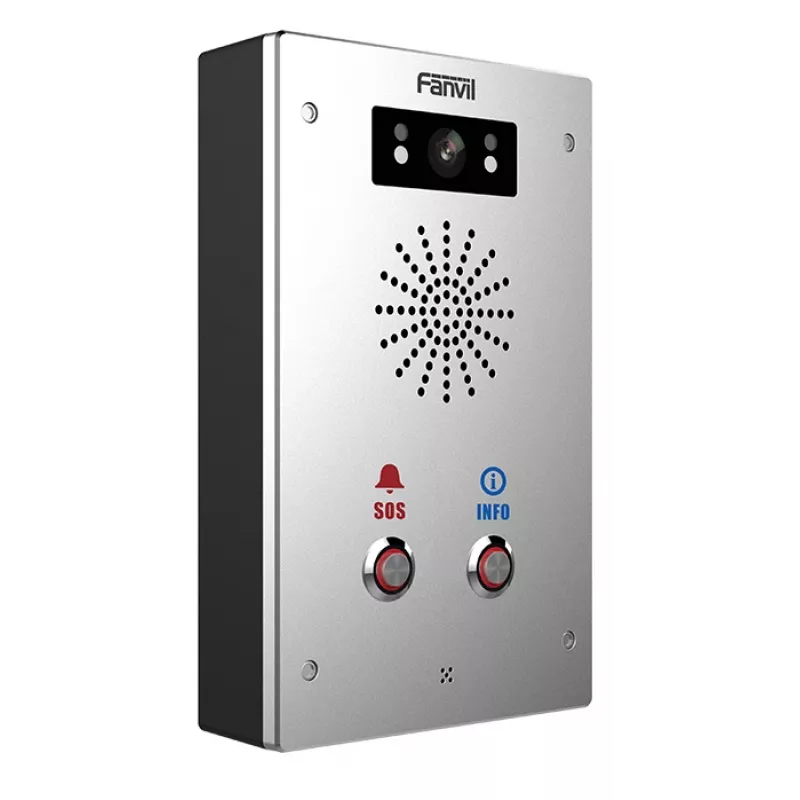

FANVIL I16s-02p Audio Video Intercom System

Fanvil I16S-02P is a wired audio intercom system designed for wall mounting. Manufactured from durable stainless steel, the unit integrates audio intercom and broadcasting functions in a compact body and provides reliable outdoor protection with IP65 dust and water resistance and IK10 anti-collision rating. The device includes two programmable shortcut buttons and an RJ-45 connector for networked SIP communications, with physical dimensions of 195 mm (width) × 120 mm (depth) × 40 mm (height).

Advantages

The Fanvil I16S-02P combines robust mechanical protection and weather resistance with SIP-based audio communication and broadcasting capability. Its stainless-steel construction and IK10 impact rating ensure resistance to vandalism, while the IP65 rating protects against dust and water ingress. Two shortcut buttons simplify common actions, and the RJ-45 interface enables straightforward network installation and power over Ethernet when supported.

Suitable for

• Entrance control at residential or commercial buildings
• Outdoor access points and gates
• Parking facilities and perimeter security
• Public areas requiring weatherproof intercom and broadcasting

Key specifications

• Model: Fanvil I16S-02P (MPN: i16S-02P)
• Protection: IP65 (dust/water resistance), IK10 (impact resistance)
• Material: Stainless steel
• Interface: RJ-45 (SIP network connectivity)
• Buttons: 2 shortcut/programmable buttons
• Dimensions: 195 mm × 120 mm × 40 mm
• EAN: 6937295604146

How to use

Mount the Fanvil I16S-02P on a suitable vertical surface using appropriate fasteners for the wall material. Connect the device to the SIP network via the RJ-45 port; if PoE is available, use it to supply power and network in a single cable. Configure SIP account and shortcut button functions through the web interface or provisioning method supported by your VoIP system. Test audio, broadcasting, and button actions after configuration to verify correct operation.

Recommendations

Install at a sheltered height to reduce direct exposure to extreme weather where possible. Use network switches or injectors that support PoE for simplified installation. For secure operation in public areas, combine the intercom with access control or surveillance systems and follow local mounting and wiring regulations.
