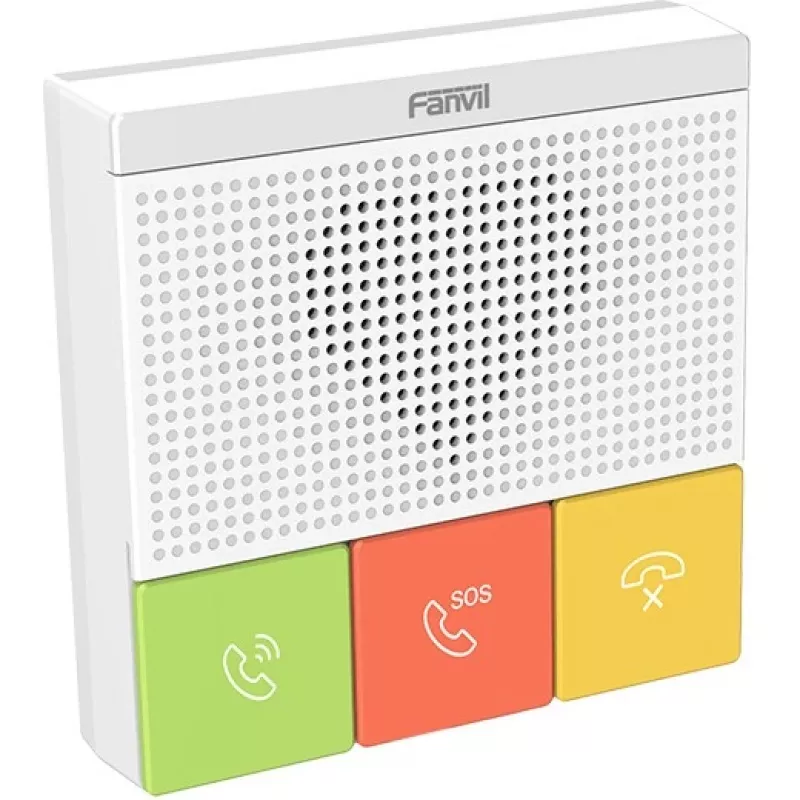

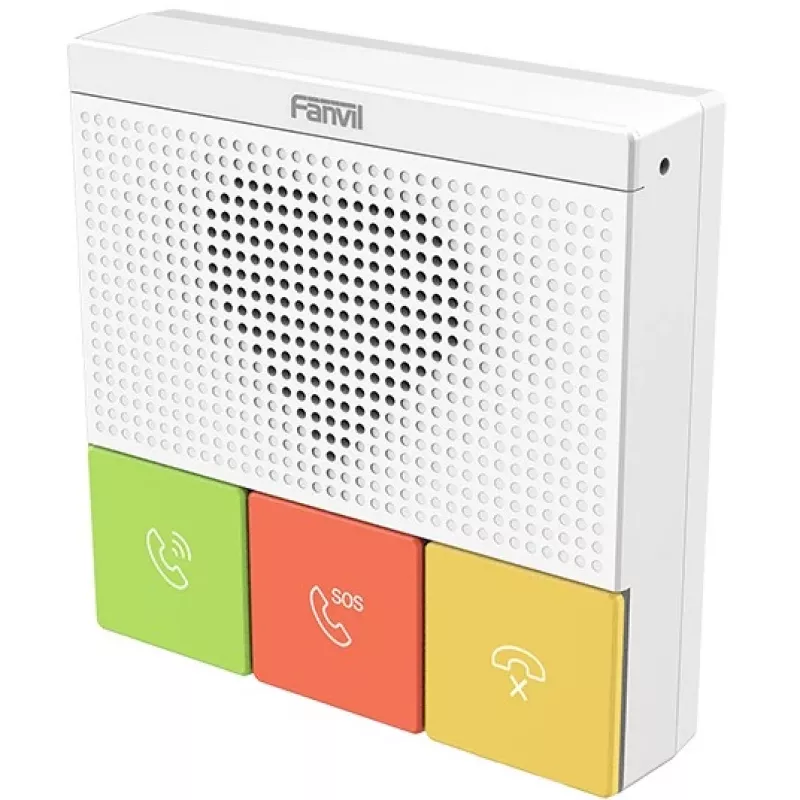

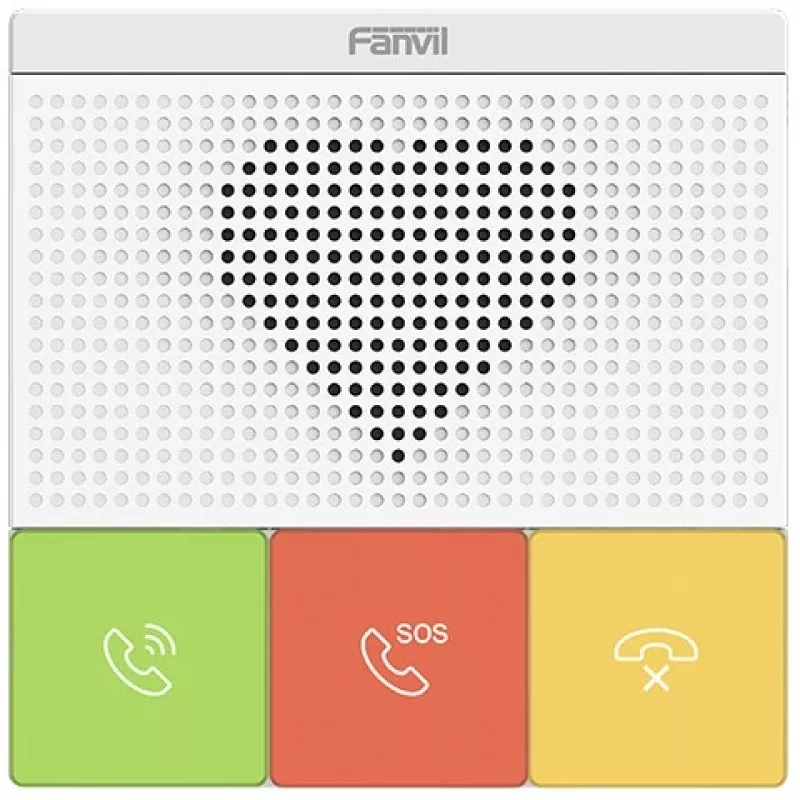

Audio Intercom System Fanvil Y501W White

The Fanvil Y501W is an audio intercom system designed for healthcare and indoor communication needs such as home-based care and nursing houses. The white, wall-mountable unit supports wired and wireless connectivity, offers HD audio and two SIP accounts, and is available with built-in 2.4G & 5G Wi‑Fi on Y501W/Y501W-E models. It provides IP54 protection, detachable DSS keys, and multiple installation options including standard 86 box embedding and surface wall mounting.

Advantages

The Fanvil Y501W delivers clear HD audio for reliable voice communication and supports two SIP accounts for flexible call handling. Its IP54 rating ensures dust and splash resistance for indoor environments. The device is energy-efficient with low power consumption and compact dimensions (87.6 × 87.6 × 30 mm) for easy installation. Models with built-in 2.4G and 5G Wi‑Fi enable wireless deployment where cabling is impractical.

Suitable for

• Home care and remote patient monitoring
• Nursing homes and assisted living facilities
• Indoor emergency communication and security points
• Rooms or corridors requiring wall-mounted intercoms

Key specifications

• Model: Fanvil Y501W (MPN: Y501W, EAN: 6937295604405)
• Audio: HD audio
• Accounts: 2 SIP accounts
• Connectivity: Wired and wireless; built-in 2.4G & 5G Wi‑Fi on Y501W/Y501W-E
• Protection: IP54 (waterproof and dustproof)
• Keys: Detachable DSS keys
• Frequency: 433 MHz (wireless control frequency)
• Power consumption: 1.42 W
• Dimensions: 87.6 × 87.6 × 30 mm
• Installation: Standard 86 box embedded or wall mountable

How to use

Install the Fanvil Y501W into a standard 86 mounting box or use the wall-mount option and connect it to the local network by Ethernet or, for Y501W/Y501W-E models, via the built-in 2.4G/5G Wi‑Fi. Configure SIP accounts using the device web interface or your provisioning server, assign DSS keys as needed, and place the unit near the area where emergency communication or monitoring is required. Ensure power and network are stable before operation.

Recommendations

Place the intercom at a height and location that ensures clear voice pickup and easy access for users. For best performance in healthcare settings, pair the unit with a reliable SIP platform and periodically check firmware updates and network stability. Use the wireless option only where signal strength is sufficient to maintain stable SIP calls.
