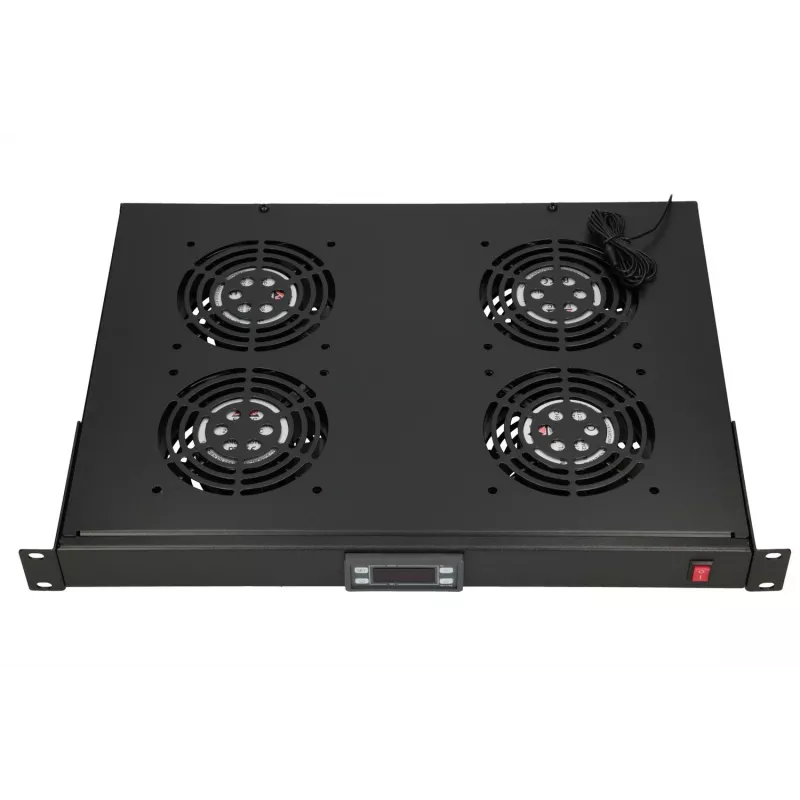

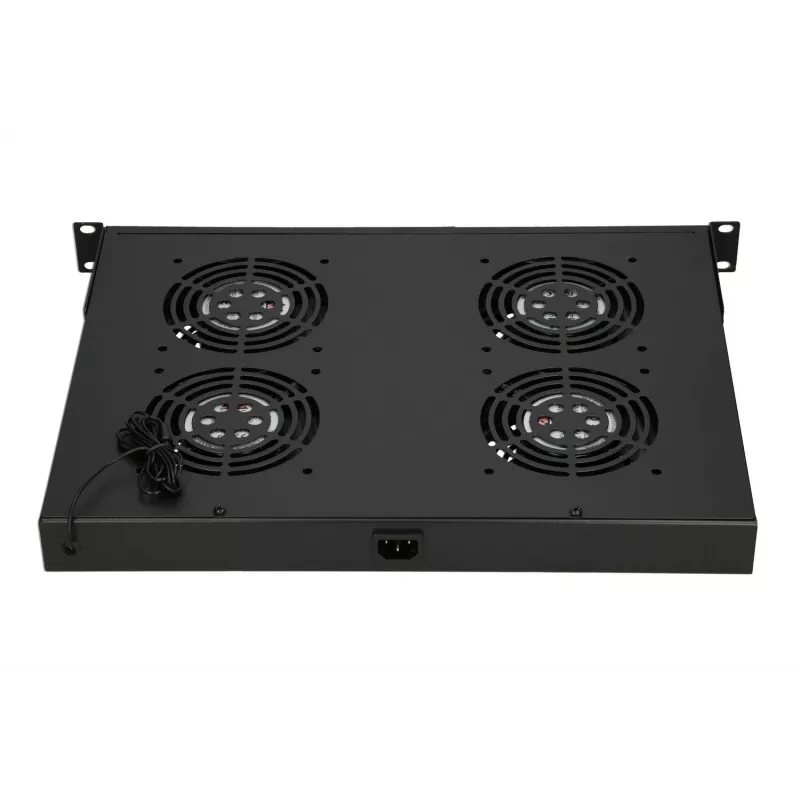

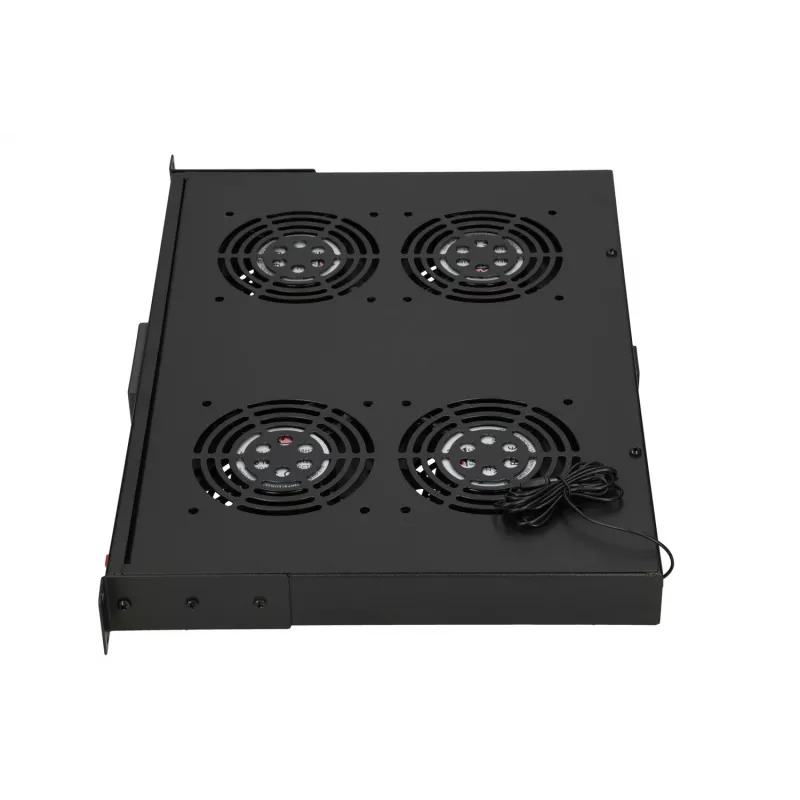

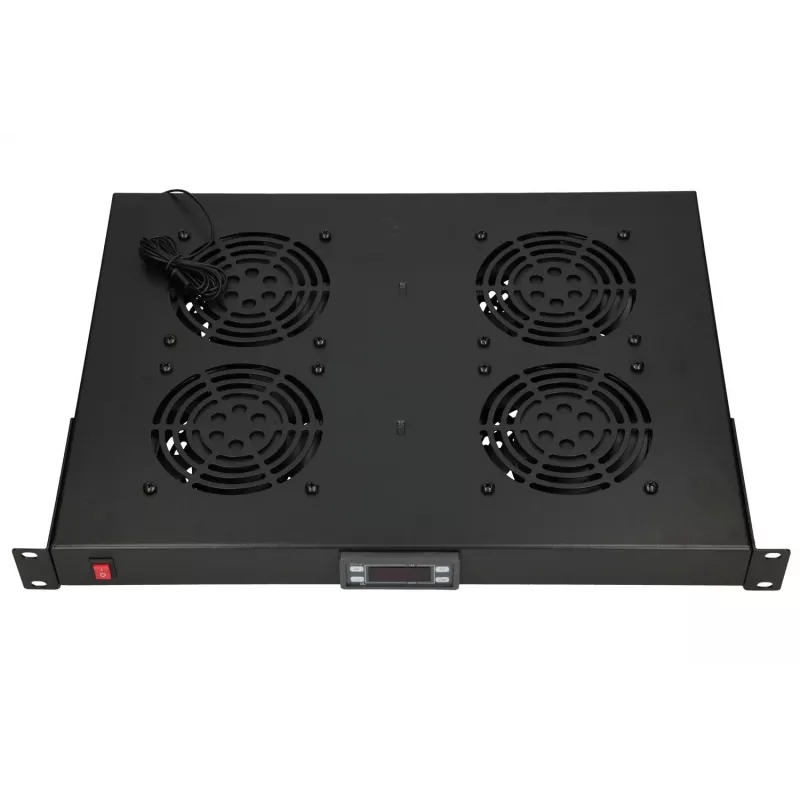

Fan panel Extralink 19 inch 4 fans with thermostat

The Extralink 19" fan panel is a rack-mounted cooling accessory with four fans and an integrated thermostat. Built from durable metal and finished in black, it is designed for installation in 19-inch racks to improve air circulation between devices. The unit includes AC mains power input and a fuse-protected supply and can be mounted vertically or horizontally to suit different server room layouts.

Advantages

The panel integrates four fans and a thermostat in a single 19" module, allowing temperature-controlled cooling without additional external controllers. It supports AC 230 V operation with built-in fuse protection and offers a compact, easy-to-install form factor with a weight suitable for typical rack installations. A manual on/off button provides direct control in addition to automatic thermostat operation.

Suitable for

• Cooling 19" server racks and network cabinets
• Maintaining airflow between rack-mounted network devices and servers
• Small server rooms, comms closets, and network cabinets requiring temperature control

Key specifications

• Rack size: 19", compatible with standard 48.3 cm rails
• Fans: 4 fans integrated into the panel
• Power input: AC 230 V (nominal), 50–60 Hz
• Thermostat: adjustable temperature control with digital temperature display
• Adjustable temperature thresholds for fan activation: -40 °C to 50 °C
• Mounting orientation: vertical or horizontal
• Material and colour: metal housing, black
• Weight: 4.8 kg

How to use

Install the fan panel into a 19" rack rail in the desired position—vertically or horizontally—ensuring secure fastening. Connect the unit to AC mains (230 V, 50–60 Hz) and verify the built-in fuse is intact. Set the thermostat to the required temperature; the fans will operate automatically according to the programmed thresholds. Use the manual on/off button if temporary manual control is needed.

Recommendations

Place the panel so that airflow is not obstructed by cables or equipment, and verify that rack ventilation paths are clear. Use the thermostat range and digital temperature readout to set thresholds appropriate for the installed equipment; perform periodic checks on the fuse and fan operation as part of regular rack maintenance.
