Fan Akasa Vegas Black AK-RLC-01

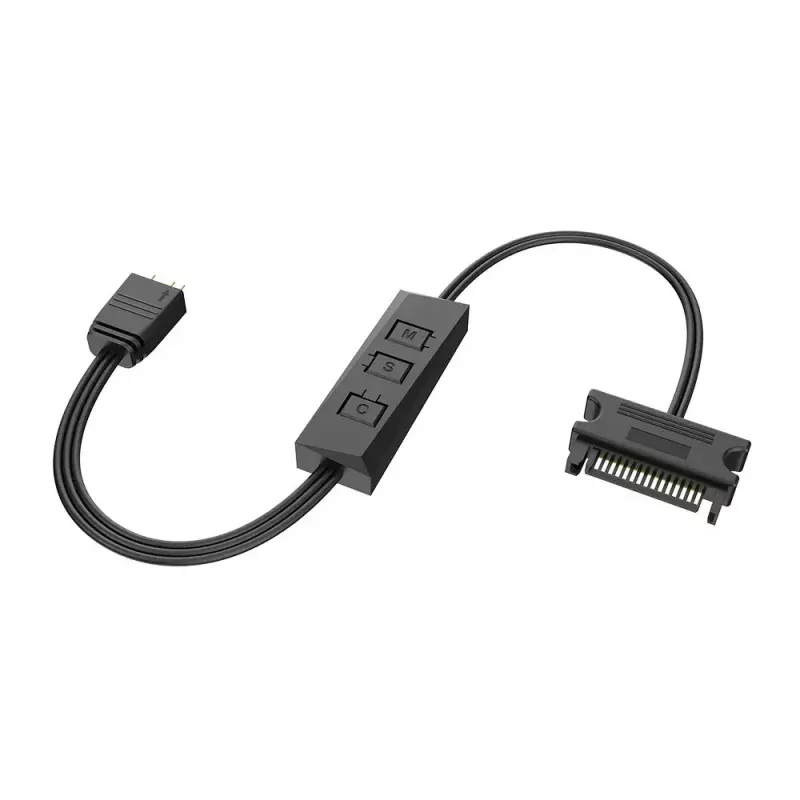

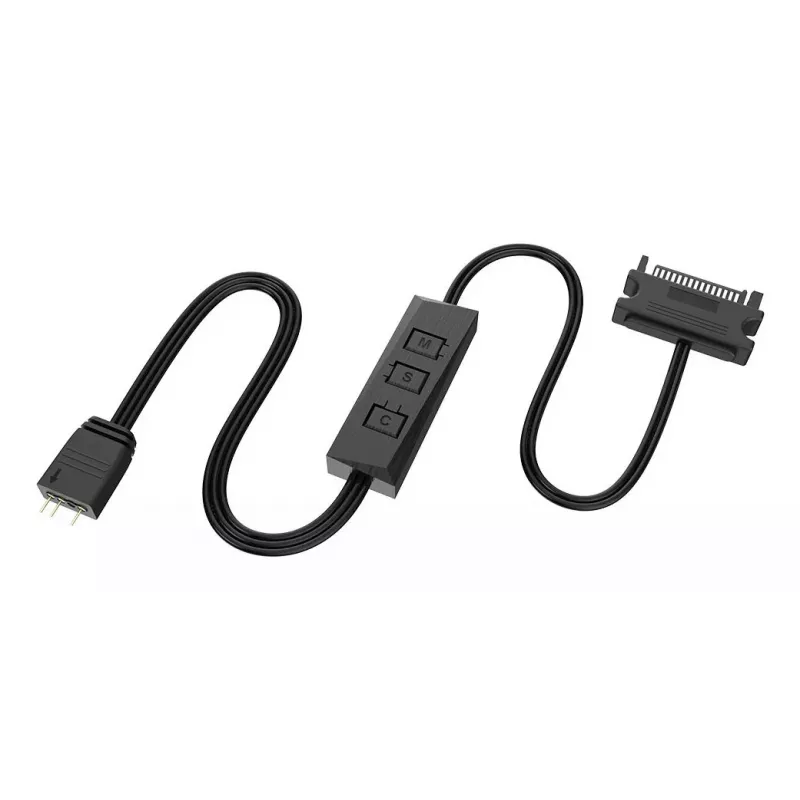

3-pin addressable RGB LED controller cable for Akasa Vegas Black (AK-RLC-01) allows direct control of aRGB LED strips and devices at 5V, with support up to 2A. The compact controller cable provides mode, speed and colour adjustment via three dedicated buttons and is designed for concealed installation to preserve a clean look inside a PC case.

Advantages

The controller cable offers simple on-device controls for changing lighting mode, animation speed and colour without the need for additional software or external controllers. Its small form factor makes it easy to hide behind a case panel or behind components, keeping the system interior tidy while maintaining full control of the aRGB lighting.

Suitable for

• Addressable 3-pin 5V aRGB LED strips and accessories
• PC builds where space for an external controller is limited
• Users who prefer physical buttons for on-the-fly lighting adjustments

Key specifications

• Connector: 3‑pin addressable RGB (3-pin aRGB, 5V)
• Maximum output: 2 A at 5 V
• Control: Mode, speed and colour buttons (on-cable)
• Compatibility: Standard 5V addressable RGB devices
• Design: Compact cable/controller for concealment

How to use

Connect the 3‑pin plug to the 5V addressable RGB header or device following correct pin alignment. Use the three buttons on the cable to cycle through lighting modes, adjust animation speed and change colour. Ensure the total current draw of connected aRGB devices does not exceed the 2 A/5 V rating.

Recommendations

Place the compact controller cable in a concealed location near the aRGB devices, avoid exposing the controller to liquids or excessive heat, and verify connector orientation before powering the system to prevent damage.
