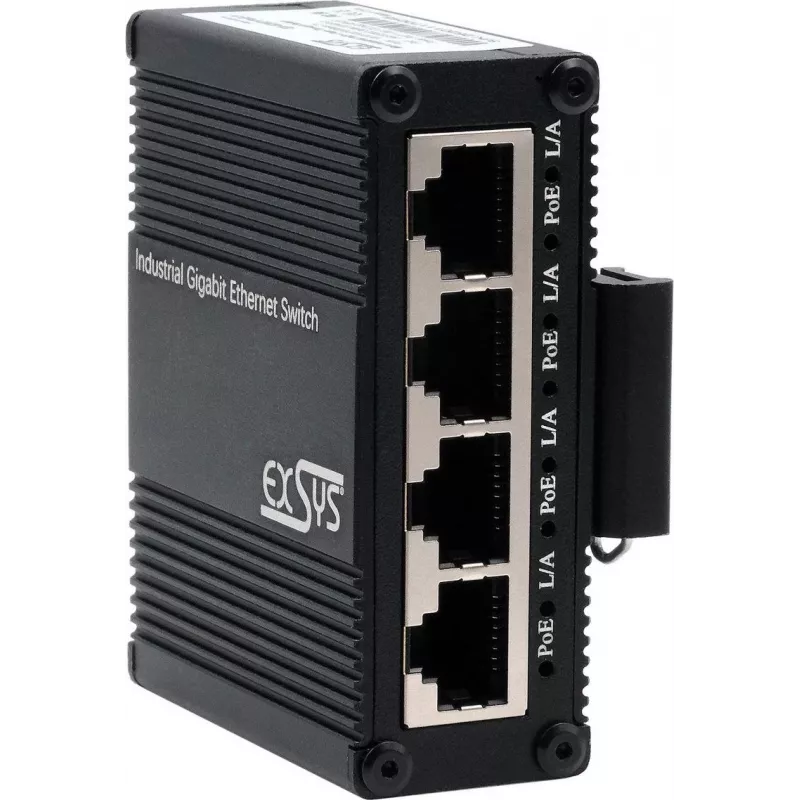

EXSYS EX-62021PoE-P 5-Port Industrial Gigabit Micro Switch with PoE Pass-Through, Unmanaged

The EXSYS EX-62021PoE-P is a compact and robust 5-port industrial Gigabit micro switch designed for harsh environments. Featuring PoE pass-through capability, it simplifies deployment in remote or space-constrained locations by powering devices directly via Ethernet. Its unmanaged operation ensures plug-and-play connectivity without configuration overhead.

Advantages

This switch offers reliable, high-speed network expansion in industrial settings. The PoE pass-through allows one port to receive power and another to deliver up to 30W to a connected device, eliminating the need for separate power cabling. With an IP30 metal housing and wide temperature range (-40°C to +75°C), it withstands dust, vibration, and extreme conditions.

Suitable for

• Industrial automation and control systems
• Surveillance and security networks (IP cameras)
• Outdoor or remote installations requiring PoE
• Transportation and energy sector applications

Key specifications

• 5 x 10/100/1000Base-T Gigabit Ethernet ports
• 1 PoE-in port (802.3af/at) and 1 PoE-out port (max 30W)
• Unmanaged, plug-and-play operation
• DIN-rail and wall-mount capable
• Switching capacity: 10 Gbps non-blocking
• MAC address table: 2K entries
• Jumbo frame support up to 9K bytes
• Power input: PoE or DC 12-57V via terminal block
• Operating temperature: -40°C to +75°C
• Storage temperature: -40°C to +85°C
• Humidity: 5% to 95% non-condensing
• Certifications: CE, FCC, RoHS

Recommendations

For optimal performance, use with a PoE+ injector or switch that supplies sufficient power for both the switch and the connected PoE-out device. Ensure proper ventilation and mounting according to the manual.
