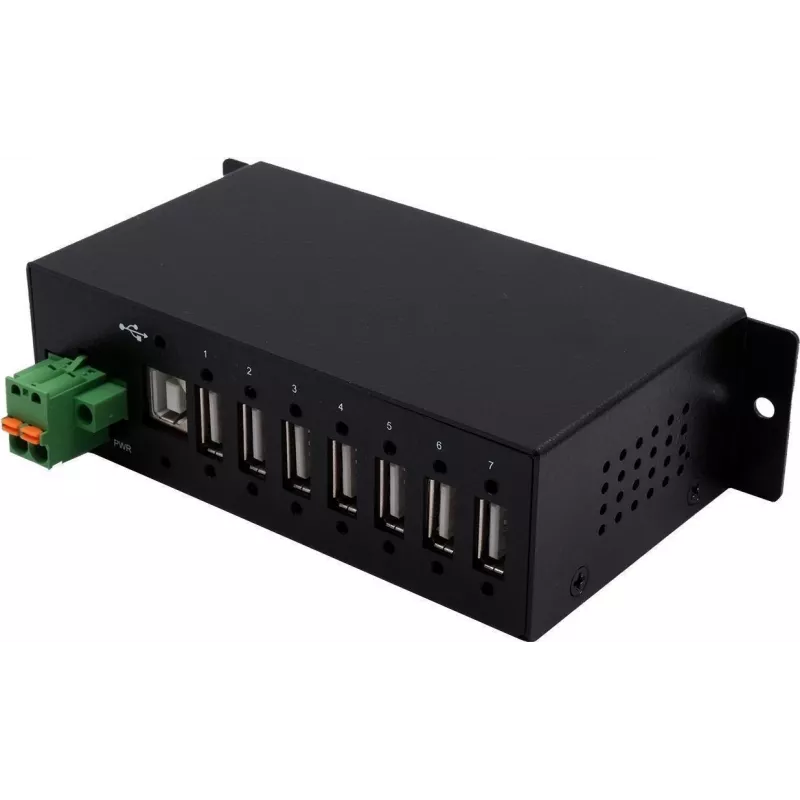

EXSYS EX-1179HMVS 7-Port USB 2.0 Industrial Metal Hub with DIN-Rail Mount, 480 Mbit/s, ESD Protection, -40 to 85°C

In a busy factory floor, a control cabinet needs to connect multiple USB devices—sensors, scanners, or configuration tools—to a single industrial PC. The EXSYS EX-1179HMVS 7-Port USB 2.0 Hub provides a rugged metal solution that mounts on a DIN rail or wall, expanding one USB Type-B upstream port into seven Type-A downstream ports. With 480 Mbit/s High-Speed data transfer and per-port overcurrent protection, it keeps your production line running smoothly even in harsh environments.

Key specifications

• USB Standard: USB 2.0 (High-Speed, 480 Mbit/s)
• Upstream Port: 1x USB 2.0 Type-B
• Downstream Ports: 7x USB 2.0 Type-A
• Power Mode: Bus-powered or self-powered via 5V DC terminal block / DC jack
• Mounting: DIN rail or wall mount
• ESD Protection: 15 kV air, 8 kV contact
• Operating Temperature: -40°C to 85°C
• Housing Material: Metal
• Colour: Black
• OS Compatibility: Windows, macOS, Linux
• Plug & Play, Hot Swappable
• Overcurrent Protection per port
• LED Indicators: Power, Port Status

Why choose it

This hub is built for industrial reliability. Its metal housing and wide temperature range withstand vibration, dust, and extreme conditions. ESD protection safeguards connected devices from static discharge, while per-port overcurrent protection prevents damage from power surges. The flexible power options allow operation from USB bus power for low-power devices or external 5V DC for high-power peripherals. DIN-rail and wall-mount options simplify installation in control cabinets.

Ideal use cases

• Industrial automation and control systems
• Manufacturing and production lines
• Kiosks and digital signage
• Laboratory equipment connectivity
• Embedded systems and IoT gateways

Good to know

The EX-1179HMVS is plug-and-play across Windows, macOS, and Linux, requiring no drivers. It supports hot swapping, so you can connect or disconnect devices without rebooting. For self-powered operation, a 5V DC power supply is required (not included). The hub's compact design and robust construction make it a dependable choice for long-term deployment in demanding settings.
