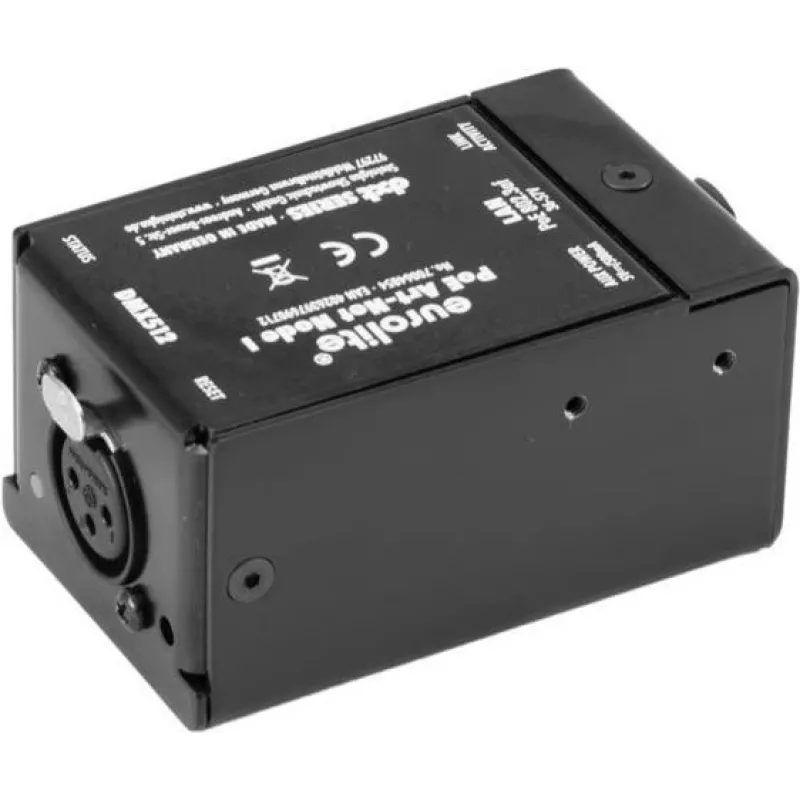

EUROLITE DXT PoE Art-Net Node I 1-Universe DMX Converter 70064854

Transform a single Ethernet port into a professional DMX512 universe with the EUROLITE DXT PoE Art-Net Node I. Powered by an ARM Cortex-M4 processor, this compact converter delivers reliable Art-Net and sACN (E1.31) to DMX translation in a rugged metal housing, with zero external power required thanks to PoE support.

Overview

The DXT PoE Art-Net Node I is a compact, single-universe Art-Net/sACN to DMX converter designed for fixed installations, rental setups, and touring applications. It receives lighting control data over Ethernet via Art-Net or sACN protocols and converts it to a standard DMX512 signal on a 3-pin XLR output. Configuration is handled entirely through a built-in web interface, eliminating the need for proprietary software or drivers. The unit can be powered via Power over Ethernet (IEEE 802.3af) or an included USB-C cable connected to a 5V DC supply, offering flexible installation options.

What stands out

• Single DMX universe (512 channels) over Art-Net or sACN
• Power over Ethernet (PoE) support – no separate PSU needed
• Rugged metal housing with multiple mounting options (wall, desktop, truss)
• Intuitive web-based configuration and firmware updates
• LED indicators for power, network link/activity, and DMX status

Technical details

• DMX output: 1x 3-pin XLR female
• Network: 1x RJ45 Ethernet (10/100 Mbps)
• Protocols: Art-Net, sACN (E1.31)
• Processor: ARM Cortex-M4
• Power input: PoE (802.3af) or USB-C (5V DC)
• Power consumption: max. 2 W
• Operating temperature: 0–40 °C
• Dimensions (W x H x D): 80 x 44 x 105 mm
• Weight: 0.3 kg

Our verdict

The EUROLITE DXT PoE Art-Net Node I is a reliable, no-fuss solution for adding a DMX universe to any Art-Net or sACN network. Its PoE capability and web-based setup make it ideal for both permanent installs and rapid deployment on the road.
