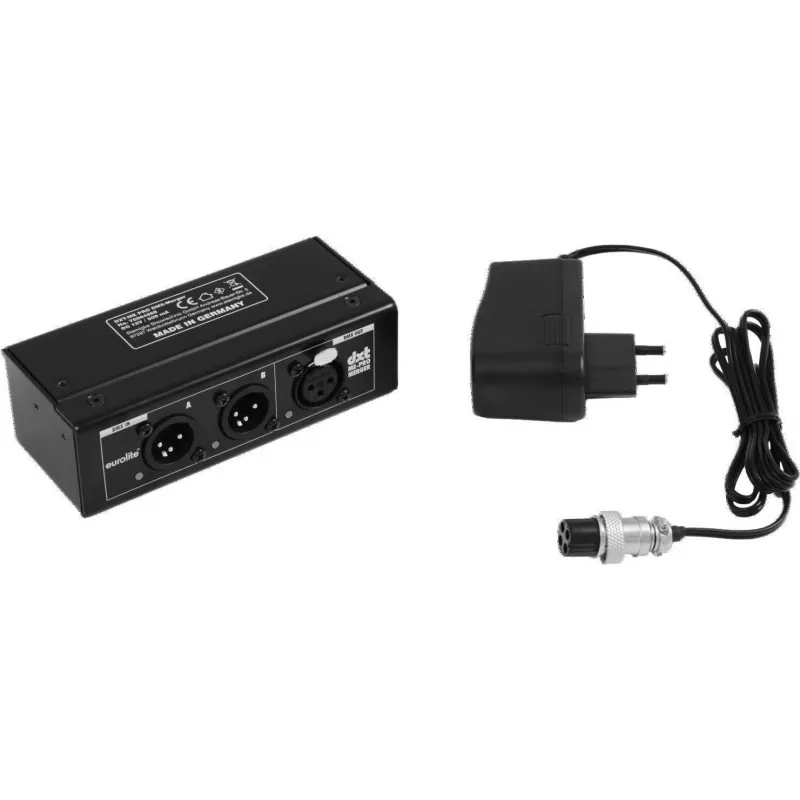

EUROLITE DXT-ME PRO DMX Merger 2x3-Pin XLR In to 1x3-Pin XLR Out, HTP/LTP/Merge Modes, 512 Channels, Metal Housing, 9-12V DC 70064868

The DXT-ME PRO solves a problem every lighting technician knows: two DMX sources fighting for one universe. Instead of swapping cables or adding another console, this merger combines two DMX512 signals into a single output with selectable HTP, LTP, or Merge logic. Its compact metal chassis and DIP-switch configuration make it a reliable backstage tool for theatres, clubs, and touring rigs.

Highlights

• Two 3-pin XLR female inputs, one 3-pin XLR male output
• Three merging modes: HTP (highest takes precedence), LTP (latest takes precedence), Merge (A+B)
• Full 512-channel DMX512 support per input and output
• DIP switches for quick mode selection without software
• LED indicators for power and DMX activity on each port
• Rugged metal housing for stage use
• External 9-12 V DC power adapter included

In daily use

Set the DIP switches to HTP when you want the brighter of two console levels to win, LTP when the most recent command should dominate, or Merge to combine both signals. The LEDs show at a glance which input is active and whether DMX is passing through. The compact unit can sit on a desk or be clamped to a truss with an optional bracket.

Full specifications

• DMX inputs: 2 x 3-pin XLR female
• DMX output: 1 x 3-pin XLR male
• DMX channels: 512 per input/output
• Merging modes: HTP, LTP, Merge (A+B)
• Control: DIP switches
• Indicators: Power, DMX In A, DMX In B, DMX Out
• Power supply: 9-12 V DC, 300 mA (external adapter included)
• Power connector: DC jack
• Housing: metal
• Operating temperature: 0-40 °C
• Relative humidity: 0-90 % non-condensing
• DMX standard: DMX512

Final note

When two consoles must share one rig, the DXT-ME PRO keeps the signal clean and the show running.
