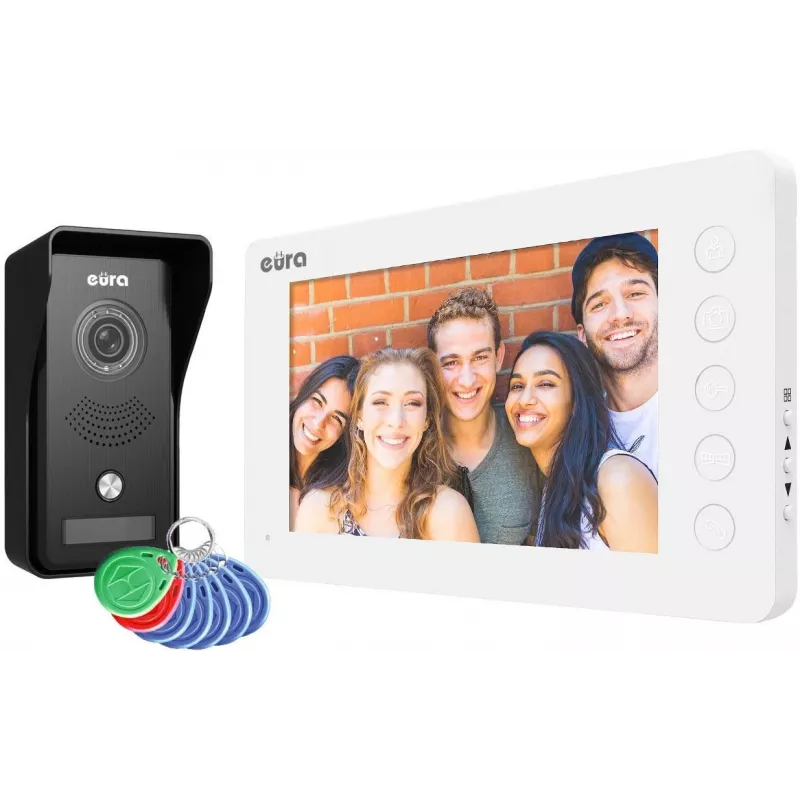

EURA VDP-76A3 7-inch Wired Video Door Phone with Monitor, White

The EURA VDP-76A3 is a complete video door phone system designed for residential and small commercial use. It includes a 7-inch TFT-LCD color monitor and an outdoor panel with a CMOS camera and infrared night vision. The monitor is surface-mounted and features a sleek white finish, while the outdoor panel is made of durable aluminum alloy with an IP44 rating. This system supports intercom, gate control, and wicket control, making it a versatile solution for secure entry management.

Advantages

Easy to install and operate, the EURA VDP-76A3 provides clear audio and video communication with visitors. The 7-inch display offers a bright and sharp image, and the infrared LEDs ensure visibility even in low light. The system supports two external panels or cameras, allowing coverage of multiple entry points. With separate outputs for gate and wicket control, you can manage access conveniently from the monitor.

Suitable for

• Single-family homes
• Apartment buildings
• Small offices
• Gated communities

Key specifications

• Display: 7-inch TFT-LCD, 800x480 pixels
• Camera: CMOS sensor, 700 TVL resolution, infrared night vision
• Monitor inputs: 2 (for external panels/cameras)
• Gate control: 1 output
• Wicket control: 1 output
• Installation: Surface mount for both monitor and external panel
• Power supply: DC 12V via included adapter
• Power consumption: approx. 7W (operating), 1W (standby)
• Operating temperature: monitor 0°C to +40°C, external panel -20°C to +50°C
• External panel material: Aluminum alloy
• IP rating: IP44 (external panel)

Recommendations

For optimal performance, ensure the outdoor panel is installed in a sheltered location to maintain the IP44 rating. The system is compatible with standard 2-wire or 4-wire installations. Always use the provided power adapter to avoid damage.
