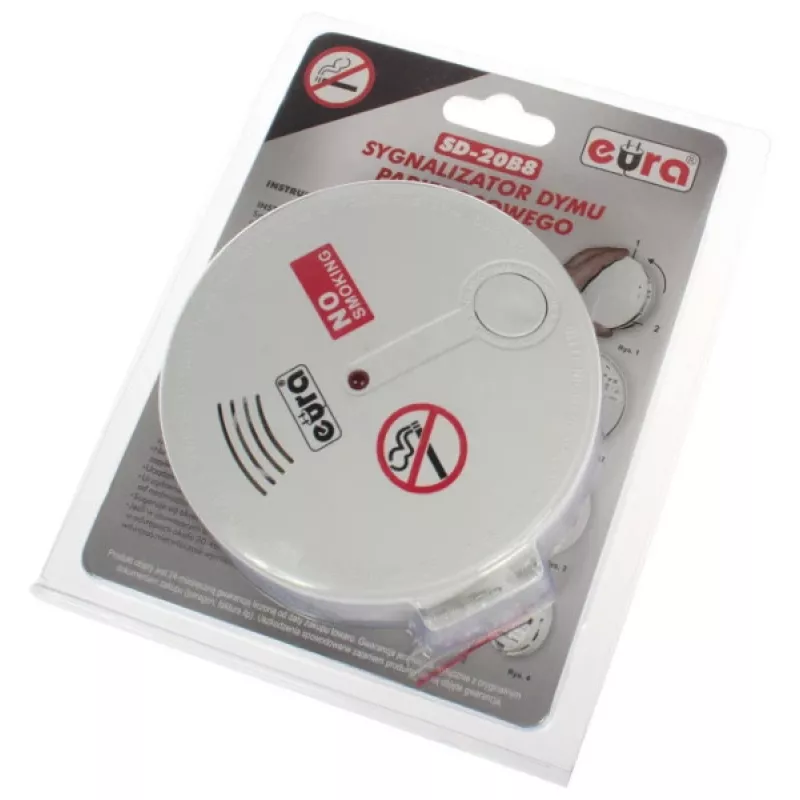

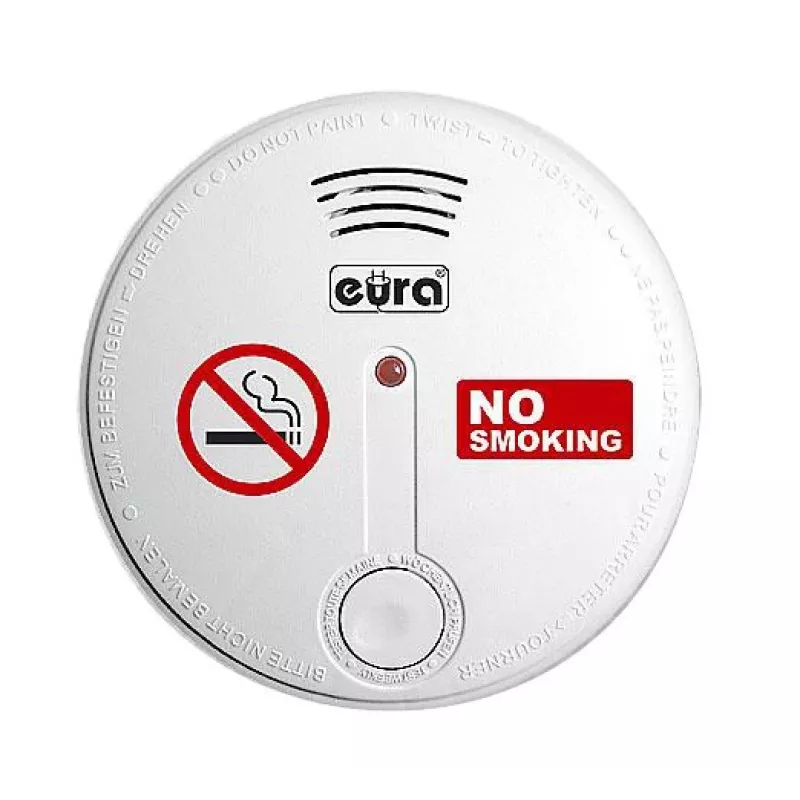

EURA SD-20B8 Photoelectric Smoke Detector, White, 9V Battery

The EURA SD-20B8 is a reliable photoelectric smoke detector designed for early fire detection in residential and light commercial environments. Using an advanced optical chamber, it quickly senses smoke particles from smoldering fires, providing an audible alarm of ≥85 dB at 3 meters and a visual LED indicator. Powered by a standard 9V DC battery (6F22 type), it offers easy installation and maintenance. The detector is EN 14604 certified, ensuring compliance with European safety standards.

Advantages

• Photoelectric sensor reduces false alarms from cooking or steam.
• Loud alarm and flashing LED ensure clear warning.
• Low battery indicator and test button for simple upkeep.
• Compact white design blends with any ceiling.

Suitable for

• Bedrooms, living rooms, hallways
• Apartments, houses, small offices
• Areas up to 20 m² per detector

Key specifications

• Detection method: Photoelectric (optical)
• Power source: 9V DC battery (6F22)
• Alarm volume: ≥85 dB at 3 m
• Operating temperature: 0°C to +50°C
• Operating humidity: 10% to 90% RH
• Standby current: <10 µA
• Alarm current: <15 mA
• Low battery indicator: Yes
• Test button: Yes
• Alarm indication: Acoustic siren & visual LED
• Certification: EN 14604
• Housing material: ABS plastic
• Colour: White
• Mounting type: Ceiling mount
• Battery life: Up to 1 year
• Coverage area: Up to 20 m²
• Installation type: Standalone

Recommendations

Install at least one smoke detector per floor and near sleeping areas. Test weekly and replace battery annually or when low battery signal sounds. For optimal protection, interconnect multiple detectors (if supported) or use as standalone units.
