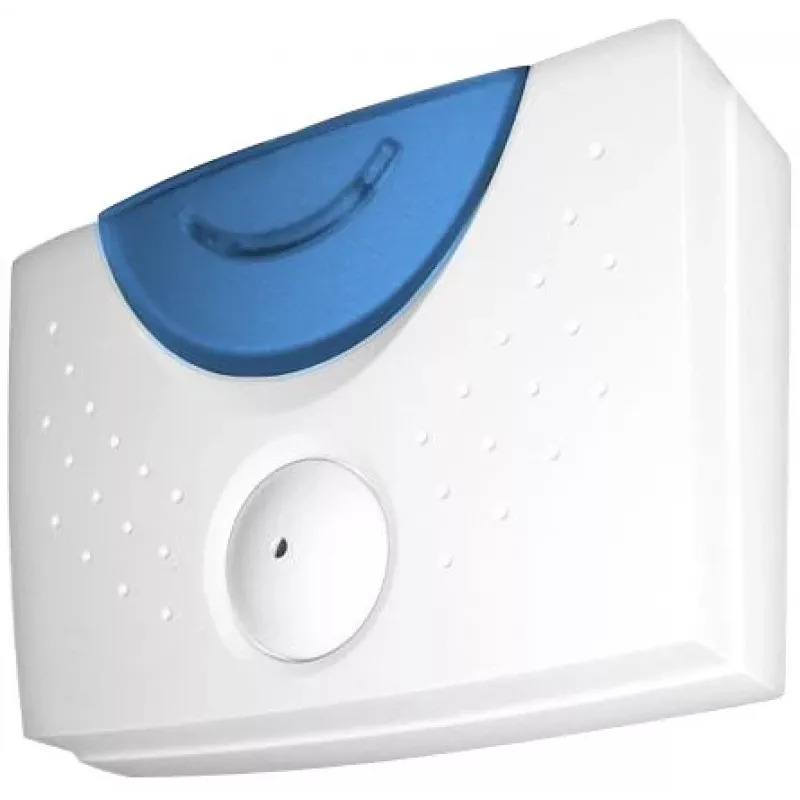

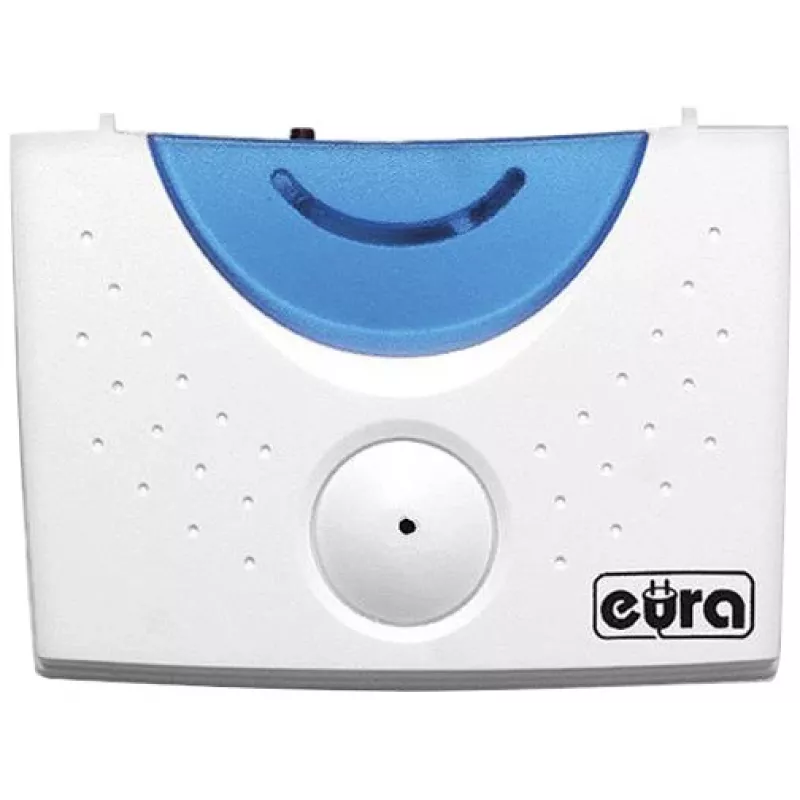

EURA ED-30A3 (RL-9811) Wireless Doorbell with PIR Motion Sensor, 32 Melodies, 100m Range, IP44

The EURA ED-30A3 (RL-9811) is a reliable wireless doorbell system featuring a PIR motion sensor for automatic detection. Ideal for homes, offices, and shops, it offers a range of up to 100 meters and 32 selectable melodies.

Advantages

Easy installation with no wiring required for the sensor. The PIR sensor detects movement up to 8 meters away with a 110° angle, ensuring you never miss a visitor. The receiver plugs directly into a wall socket and offers 3 volume levels.

Suitable for

• Home entrances
• Office reception areas
• Retail stores
• Warehouses

Key specifications

• Detection Method: PIR Motion Sensor
• Wireless Technology: RF 433 MHz
• Wireless Range: Up to 100 meters (open area)
• PIR Detection Angle: 110°
• PIR Detection Range: Up to 8 meters
• Number of Chimes/Melodies: 32
• Volume Levels: 3
• Receiver Power Source: AC 230V / 50Hz (Plug-in)
• Sensor Power Source: 3x 1.5V AA Batteries
• Sensor Ingress Protection (IP) Rating: IP44
• Operating Temperature Range: -20°C to +50°C
• Receiver Dimensions (L x W x H): 115 x 70 x 30 mm
• Sensor Dimensions (L x W x H): 90 x 60 x 40 mm
• Mounting Type: Wall-mount (sensor), Wall-socket plug-in (receiver)

Recommendations

For best performance, install the sensor at a height of 1.5-2 meters and avoid direct sunlight or heat sources. Test the wireless range before permanent mounting.
