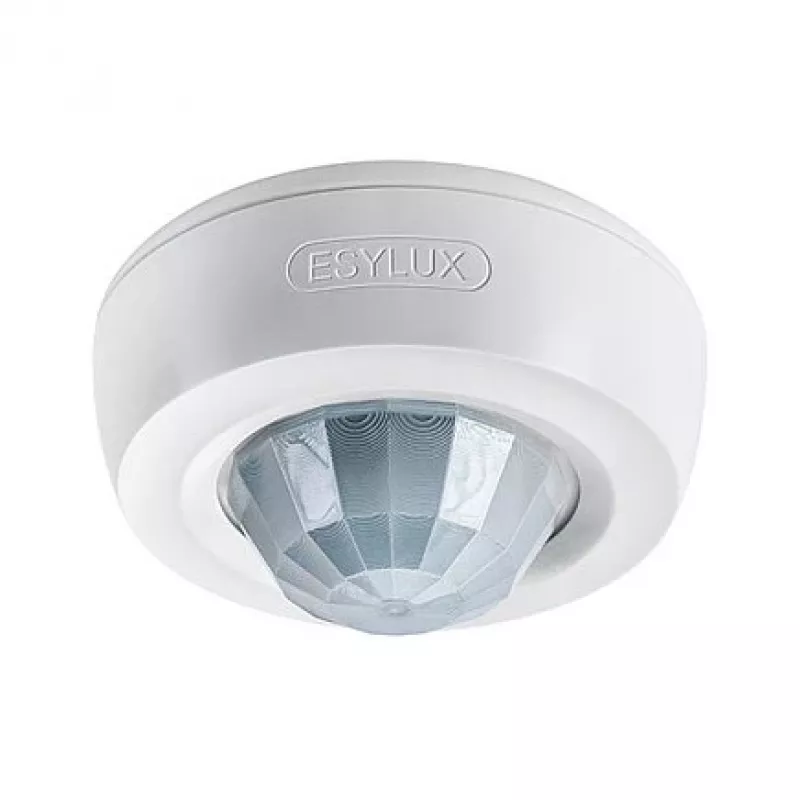

ESYLUX MD 360i/24 Basic Ceiling Motion Detector 360° Surface-Mounted White

The ESYLUX MD 360i/24 Basic is a high-quality passive infrared (PIR) ceiling motion detector designed for surface mounting. With a 360° detection angle and a 24 m diameter range (at 3 m mounting height), it provides reliable presence and motion detection for indoor and outdoor applications. The detector is finished in white (RAL 9010) and features a robust, UV-stabilised polycarbonate housing with IP54 protection.

Advantages

Energy-efficient automatic lighting control with adjustable time delay (10 s to 60 min) and twilight threshold (5–2000 lux). The potential-free relay output allows integration into various control systems. Easy installation via surface mounting and simple configuration via built-in potentiometers or optional remote control.

Suitable for

• Corridors, stairwells, and hallways

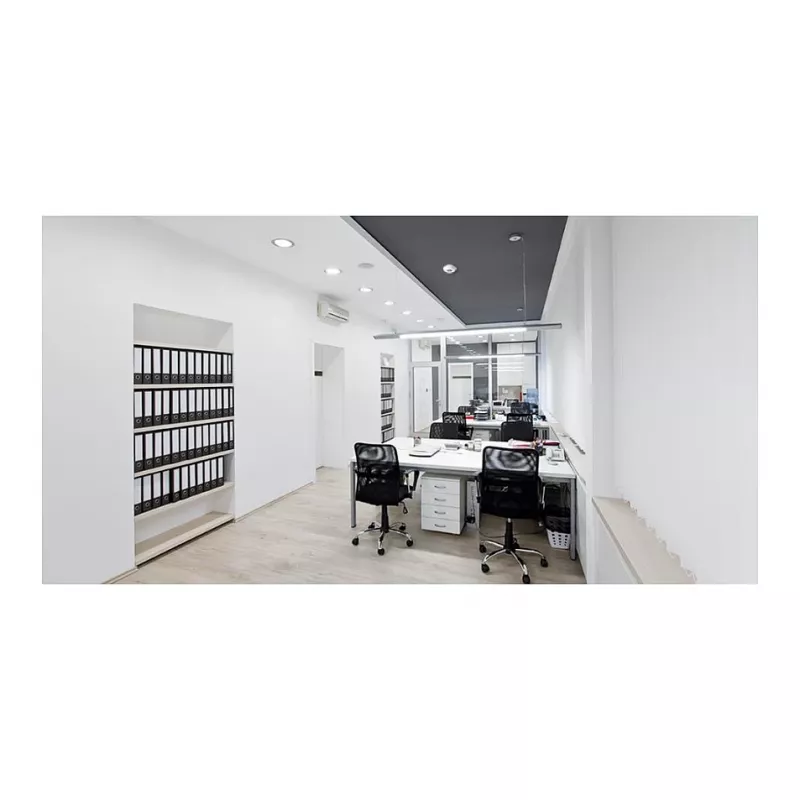

• Office spaces and meeting rooms
• Warehouses and storage areas
• Outdoor covered areas (IP54)

Key specifications

• Detection angle: 360°
• Detection range (diameter): 24 m at 3 m mounting height
• Mounting type: Ceiling, surface-mounted (AP)
• Sensor type: Passive infrared (PIR)
• Operating voltage: 230 V AC, 50 Hz
• Switching capacity: 2300 W (resistive) / 500 W (LED)
• Time setting: 10 s – 60 min
• Twilight setting: 5 – 2000 lux
• Protection class: IP54
• Operating temperature: -25 °C to +50 °C
• Power consumption: approx. 0.5 W
• Housing material: UV-stabilised polycarbonate
• Colour: White (RAL 9010)
• Halogen-free: Yes

Recommendations

For optimal performance, mount at a height of 2.5–3 m. Use the optional remote control for convenient adjustment. Suitable for both indoor and outdoor use where IP54 protection is sufficient.
