Ernitec ELECTRA-M10-OUTDOOR-200 network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey

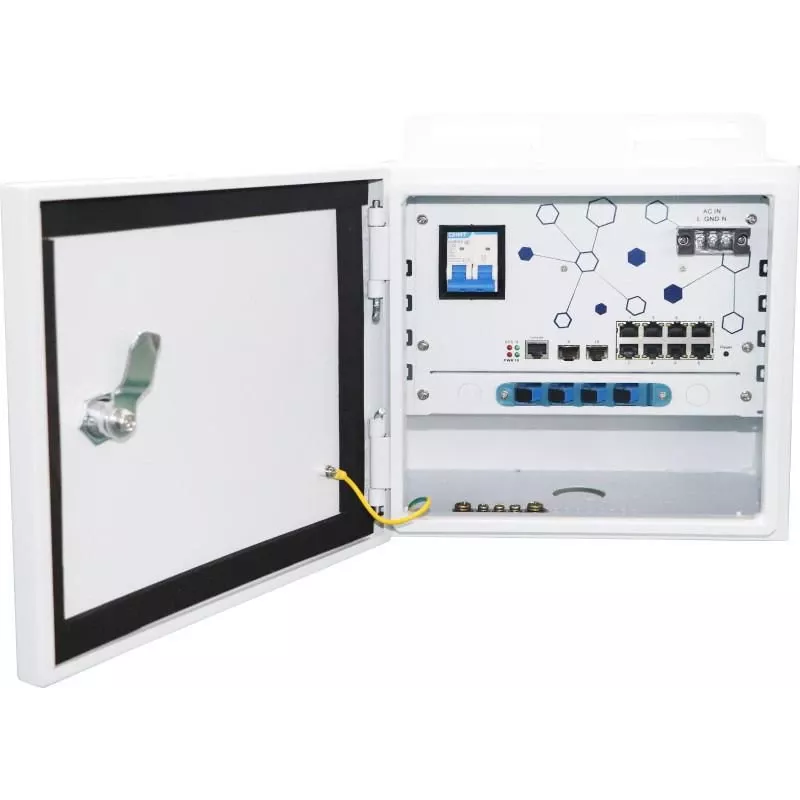

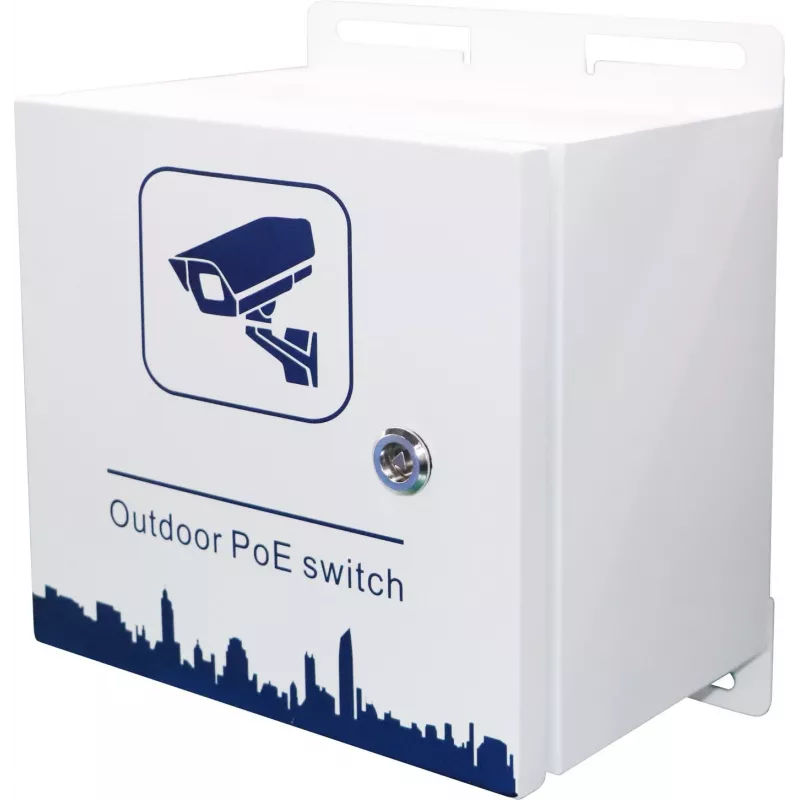

Ernitec Electra-M10-Outdoor is a managed industrial PoE switch in a water-resistant IP66 housing designed for outdoor surveillance and industrial networking. The enclosure can be mounted on a wall or pole and contains a 200W industrial power supply, an air-breaker, surge protection, an optical fiber tray and a cooling fan. The device provides eight 10/100/1000Base-T PoE ports and two 1000Base-X SFP interfaces and supports L2 management features for integration into complex networks.

Advantages

The unit combines outdoor-rated protection with built-in power and network protection components, reducing the need for additional external equipment. It offers PoE management including total power control, single-port PoE on/off and port output priority, as well as integrated surge, ESD protection and a lightning arrester. Support for IGMP v1/v2/v3 and MLD and a range of security functions enable stable multicast handling and access control in surveillance deployments.

Suitable for

• Outdoor video surveillance and security monitoring
• Road and traffic monitoring systems
• Industrial network deployments requiring PoE and environmental protection

Key specifications

• Enclosure protection rating: IP66 (water-resistant)
• Integrated industrial power supply: 200 W
• Ports: 8 × 10/100/1000Base-T PoE (802.3af/at), 2 × 1000Base-X SFP
• PoE management: total power control, per-port PoE on/off, port output priority
• Built-in protections: surge protection, ESD protection, integrated lightning arrester
• Management: Layer 2 management functions, remote monitoring and troubleshooting
• Multicast support: IGMP v1/v2/v3 and MLD

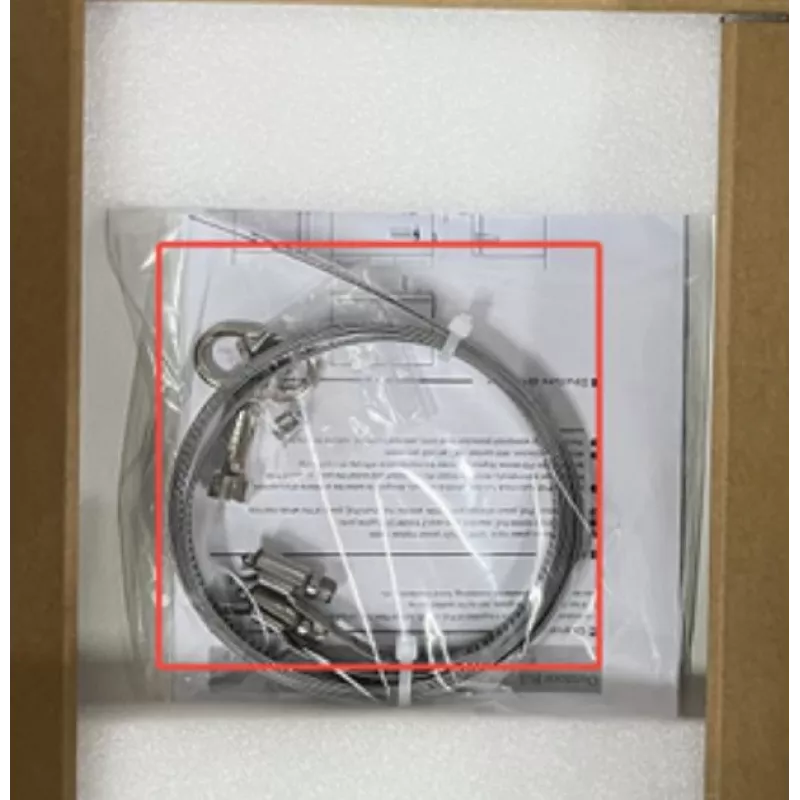

• Mounting: wall or pole mountable enclosure

How to use

Mount the IP66 enclosure on a suitable wall or pole location and connect incoming fiber or copper uplink to the SFP or copper ports. Connect PoE-powered devices to the 10/100/1000Base-T PoE ports and ensure the 200 W internal power supply is connected to mains. Configure Layer 2 settings, PoE power allocation and security/authentication options via the device management interface and verify surge protection and grounding according to site requirements.

Recommendations

Use the Electra-M10-Outdoor in environments where weather-resistant housing and integrated power/ surge protection reduce installation complexity. For surveillance applications using multicast streams, enable IGMP/MLD features and configure port priorities and PoE budgets to match camera power requirements.
