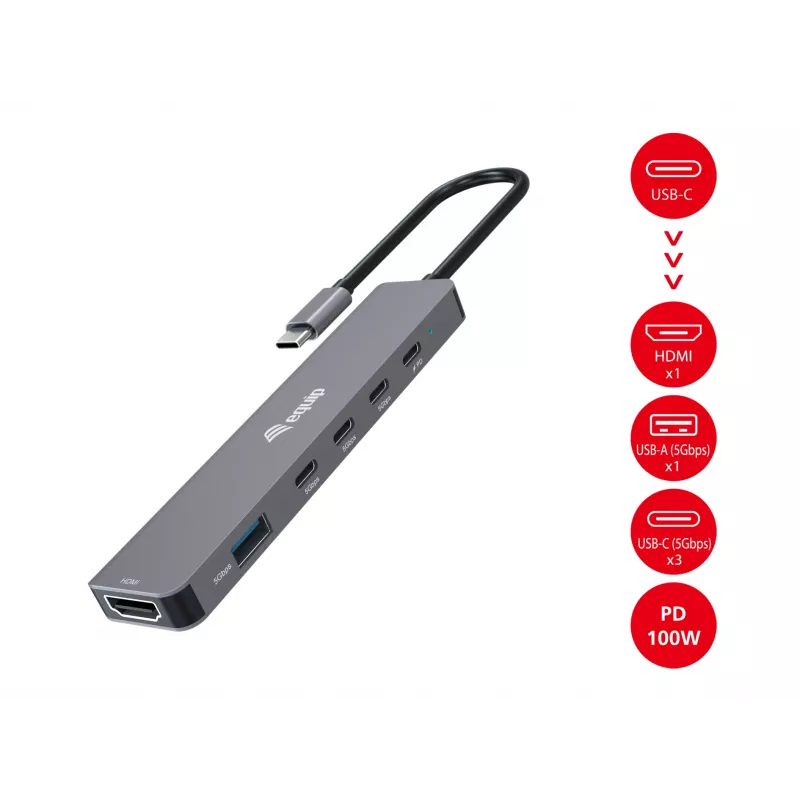

Equip USB-C 6 in 1 Multifunctional Adapter, HDMI 4K/30Hz, USB-C x 4 , USB-A x 1, 5Gbps, 100W USB PD

The Equip 133500 USB-C 6-in-1 Multifunctional Adapter increases the connectivity of laptops, tablets and smartphones with a single USB-C port. This compact wired adapter combines HDMI output, multiple USB-C ports, and a USB-A data port in a slim aluminium housing with a 25 cm cable, enabling display extension, device connection and power delivery from one accessory.

Advantages

The adapter supports HDMI output up to 4K (3840 x 2160) at 30 Hz and requires a USB-C host with DisplayPort Alternate Mode. It provides one USB 3.2 Gen 1 (USB-A) port with up to 5 Gbps data transfer and three additional USB-C ports for peripherals, plus a USB-C PD charging port delivering up to 100 W. The aluminium casing and compact dimensions make it suitable for travel and everyday use.

Suitable for

• Extending or mirroring a laptop or tablet display to an external monitor or TV (4K/30Hz)
• Connecting USB-A peripherals such as flash drives and keyboards
• Using multiple USB-C accessories and external drives
• Charging a host device or powering connected peripherals via USB Power Delivery (up to 100 W)

Key specifications

• Model: Equip 133500, MPN: 133500, EAN: 4015867242957
• Host interface: USB 3.2 Gen 1 (Type-C, wired)
• Ports: 1 × HDMI (up to 4K/30Hz), 1 × USB-A (USB 3.2 Gen 1, 5 Gbps), 4 × USB-C (includes PD charge port, DP Alt Mode required for video)
• Power Delivery: up to 100 W (USB PD 3.0 compliant)
• Maximum digital resolution: 3840 × 2160 (4K) @ 30 Hz
• Cable length: 0.25 m; Material: aluminium casing; Colour: grey
• Dimensions (W×D×H): 113.3 × 28 × 10 mm

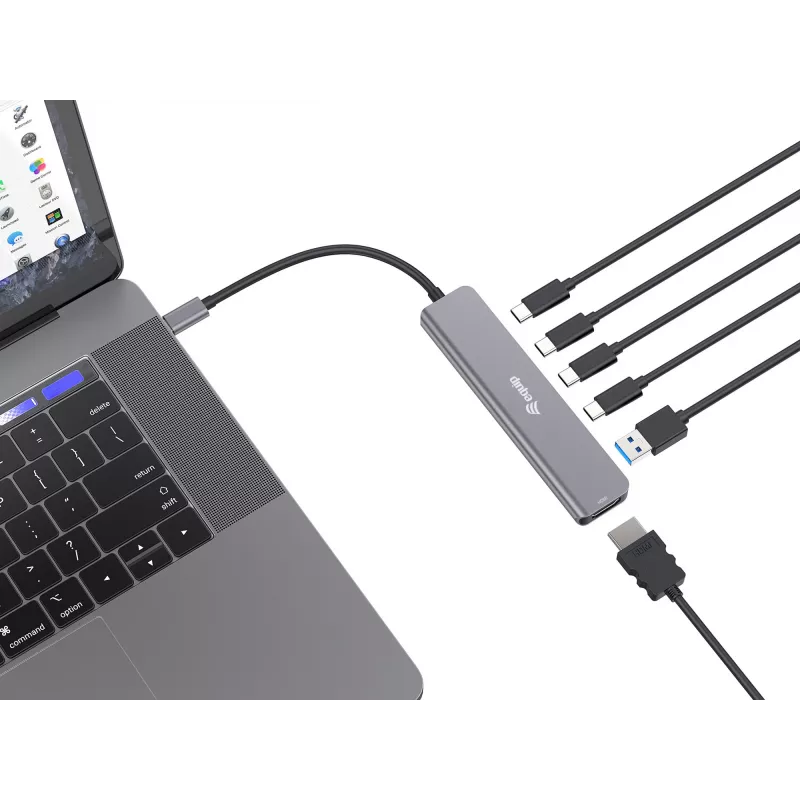

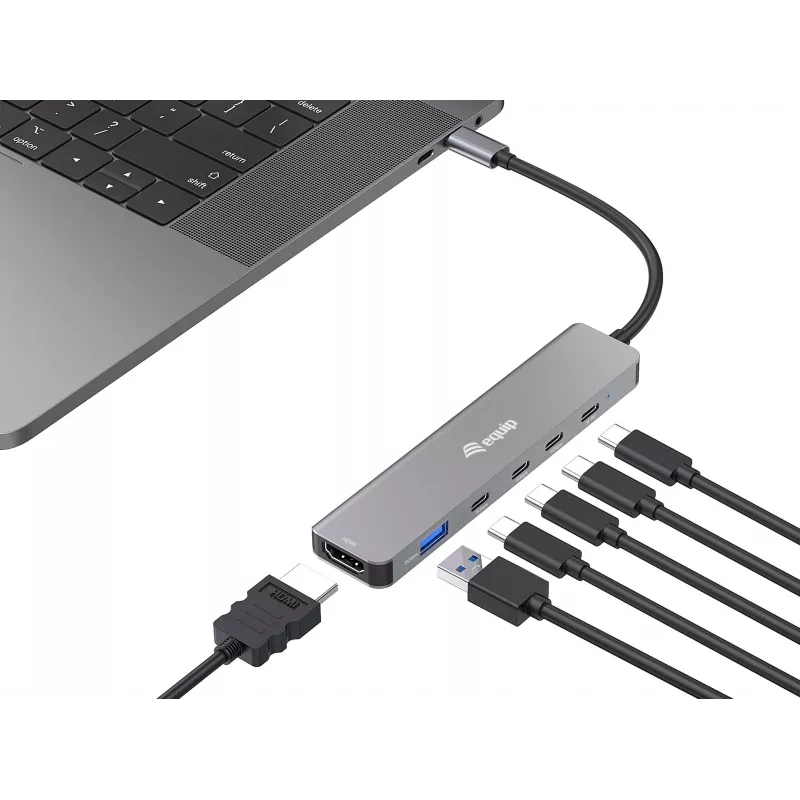

How to use

Connect the adapter's USB-C male connector to a compatible USB-C port on your laptop, tablet or smartphone that supports DisplayPort Alternate Mode if you intend to use the HDMI output. Attach an HDMI cable from the adapter to an external monitor or TV for video output. Plug USB-A or USB-C peripherals into the corresponding ports for data transfer. To charge the host device or supply power to connected devices, connect a USB-C PD charger to the adapter's power input; the adapter supports up to 100 W PD.

Recommendations

For video output, ensure the host device's USB-C port supports DP Alt Mode. Use high-quality HDMI and PD-certified USB-C cables to maintain stable 4K/30Hz video and full power delivery. Avoid exceeding the total power draw of connected devices relative to the 100 W PD limit.
