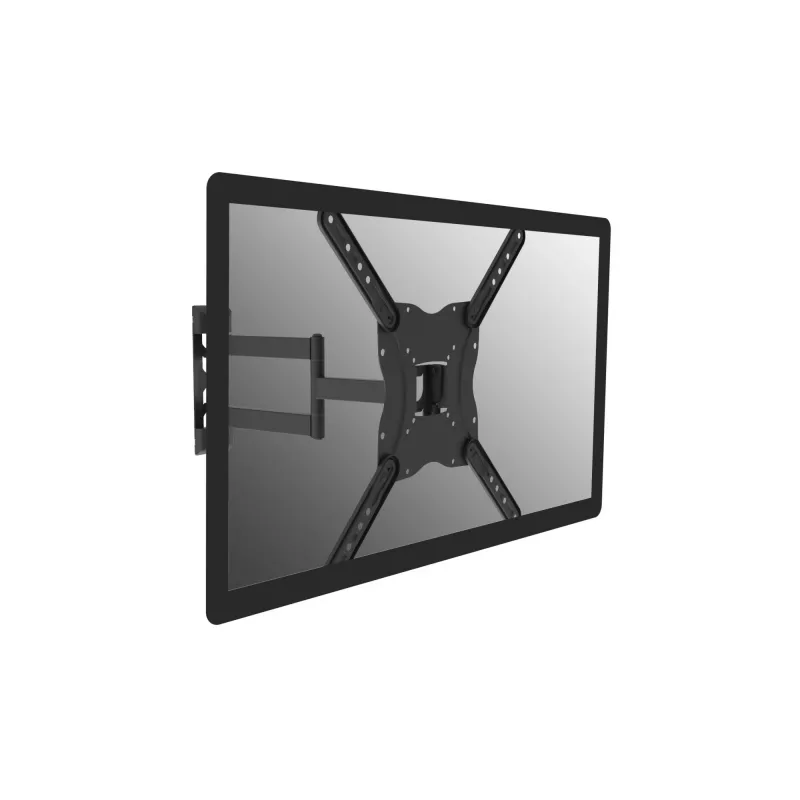

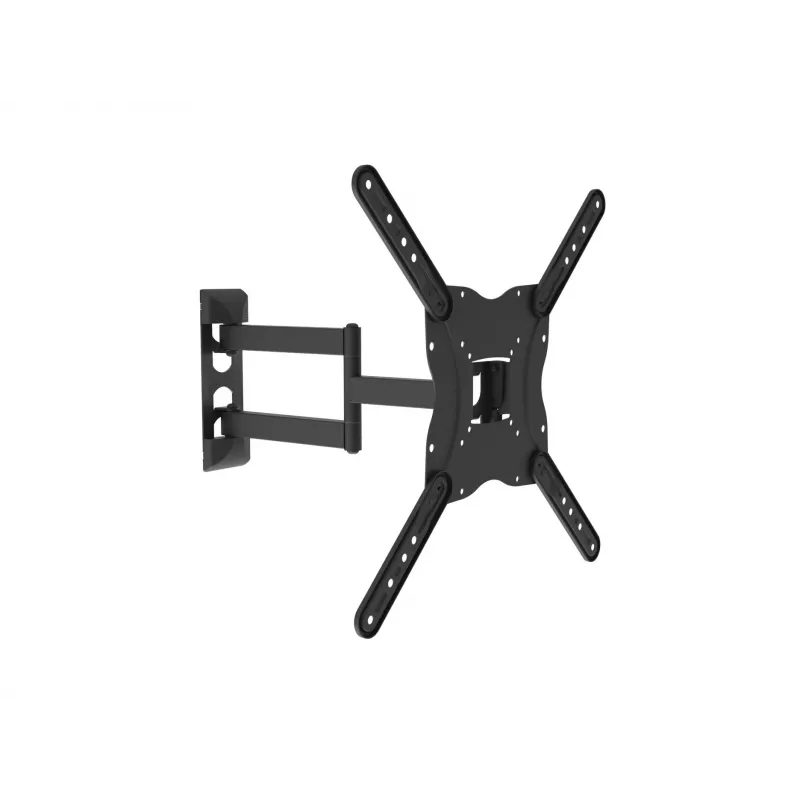

Equip 650407 23 inch-55 inch Articulating TV Wall Mount Bracket

The Equip 650407 TV Wall Mount Bracket is a compact, sturdy articulating mount for LCD and plasma screens from 23" to 55". It supports VESA patterns from 75x75 mm up to 400x400 mm and a maximum load of 30 kg. The mount extends from the wall between 6.5 cm and 21.2 cm and offers a tilt range of -14° to 5°. Its black finish fits most interiors, and the package includes a graphic guide for straightforward installation on common wall materials such as brick, concrete and wood.

Advantages

This Equip articulating bracket combines a small product weight (2.2 kg) with a robust 30 kg capacity, offering compatibility with a wide range of mid-size TVs. The adjustable extension and tilt allow for flexible positioning, while broad VESA support (75x75 to 400x400 mm) ensures compatibility with most screen models. The included graphic guide simplifies do-it-yourself mounting on brick, concrete or wooden walls.

Suitable for

• Mounting 23"–55" LCD or plasma TVs
• Screens with VESA 75x75 to 400x400 mm
• Installations on brick, concrete or wooden walls
• Rooms where a low-profile or slightly extended wall mount is needed (6.5–21.2 cm)

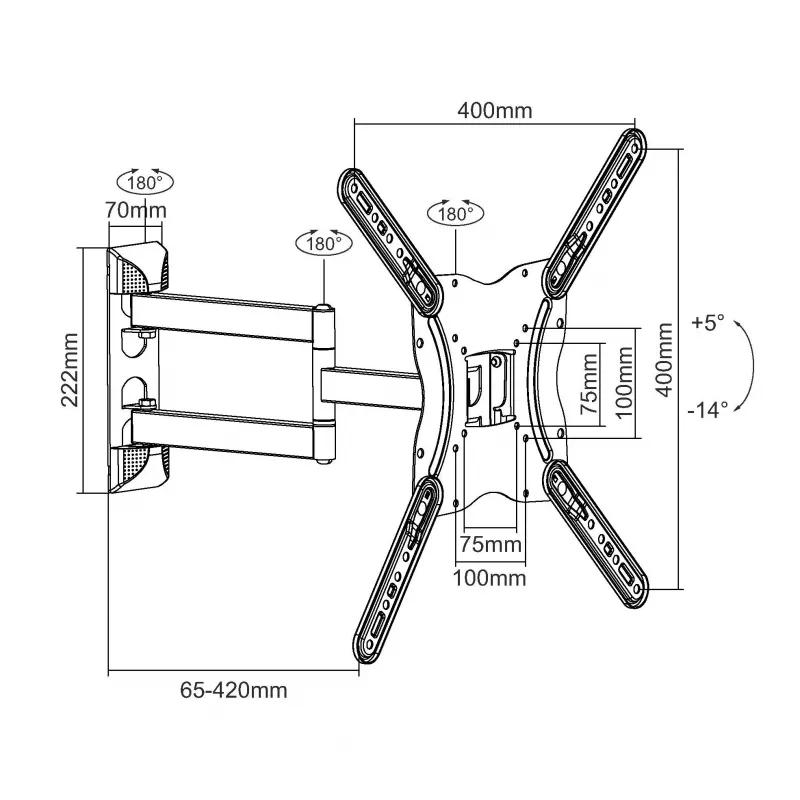

Key specifications

• Model: Equip 650407
• Screen size supported: 23"–55"
• Maximum weight capacity: 30 kg
• VESA compatibility: 75x75 mm to 400x400 mm
• Tilt range: -14° to 5°
• Extension from wall: 6.5 cm – 21.2 cm
• Product weight: 2.2 kg
• Colour: Black
• MPN: 650407
• EAN: 4015867209202

How to use

Choose a suitable mounting location and confirm the wall material and load-bearing capability. Follow the included graphic guide to mark drill points according to the VESA pattern of your TV, fix the bracket to the wall using appropriate anchors for brick, concrete or wood, attach the VESA plate to the TV, and hang the screen on the wall arm. Adjust the extension and tilt to the desired viewing angle and tighten all fasteners securely.

Recommendations

Verify the TV’s weight and VESA pattern before installation, use wall anchors rated for the wall type and the load, and periodically check that all screws and fittings remain tight.
