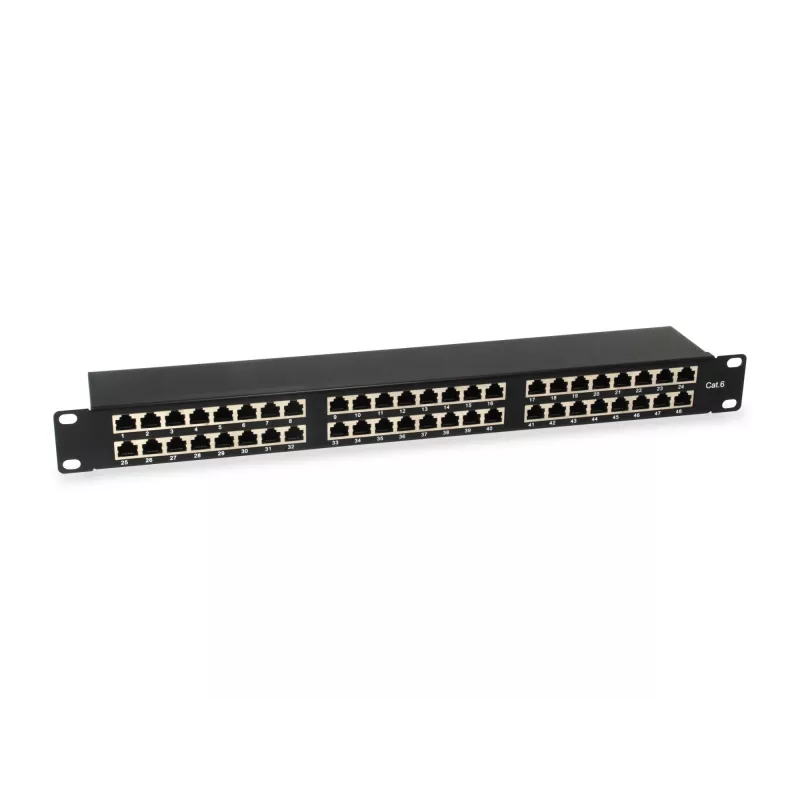

Equip 48-Port Cat.6 Shielded Patch Panel, Black

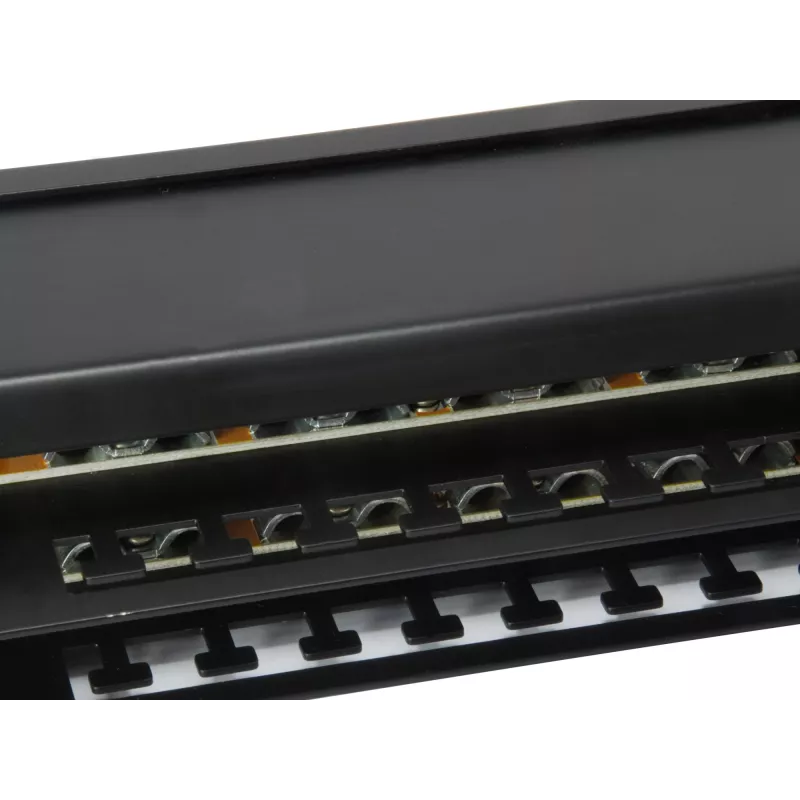

The equip® Patch Panel is a 19" 1U shielded network distribution unit designed for structured cabling installations. It provides 48 shielded RJ45 ports compatible with Cat6 cabling and supports both LSA and 110 termination standards. The panel includes numbered ports for easy identification and integrates a cable management system to improve routing and strain relief while keeping a compact 1U rack footprint (482.6 mm × 44.5 mm × 110.5 mm).

Advantages

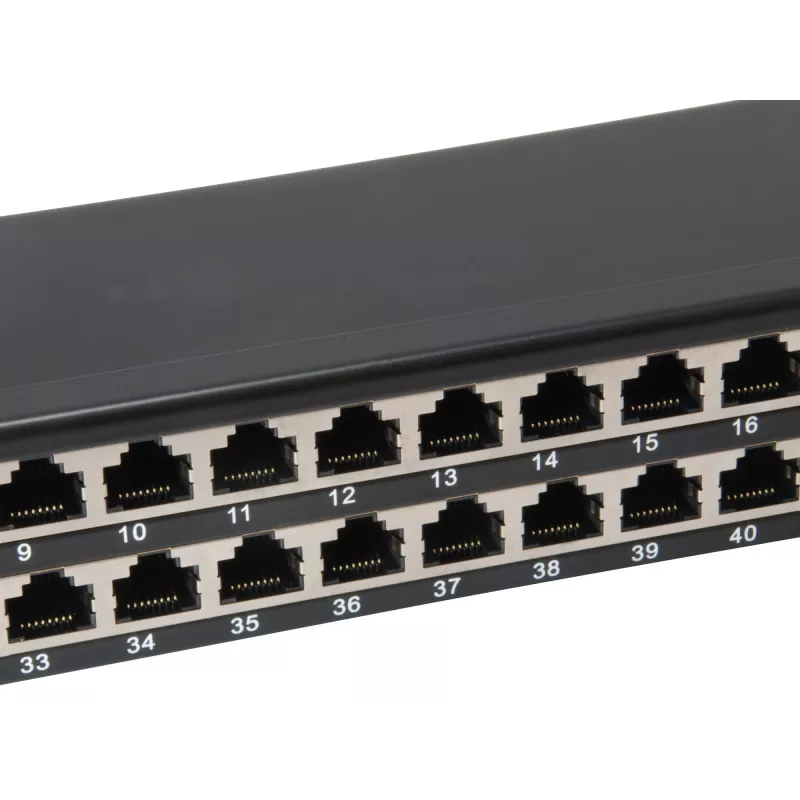

The 48-port equip® Cat.6 shielded patch panel offers a space-saving 1U design with full port shielding to reduce electromagnetic interference when used with shielded patch cords and cabling. Numbered ports simplify installation and maintenance, while the integrated cable management and support for LSA and 110 termination standards provide flexible and reliable connection options for professional network environments.

Suitable for

• Data center rack installations
• Office LAN patching and structured cabling
• Environments requiring shielded Cat6 connections
• Telecommunications cabinets and network closets

Key specifications

• Brand: EQUIP
• Model / MPN: 326449
• EAN: 4015867207154
• Ports: 48 shielded RJ45
• Cable category support: Cat6 (shielded)
• Termination standards: LSA and 110 compatible
• Rack size: 19", 1U
• Colour: Black
• Dimensions (W×H×D): 482.6 × 44.5 × 110.5 mm
• Weight: 1.683 kg

How to use

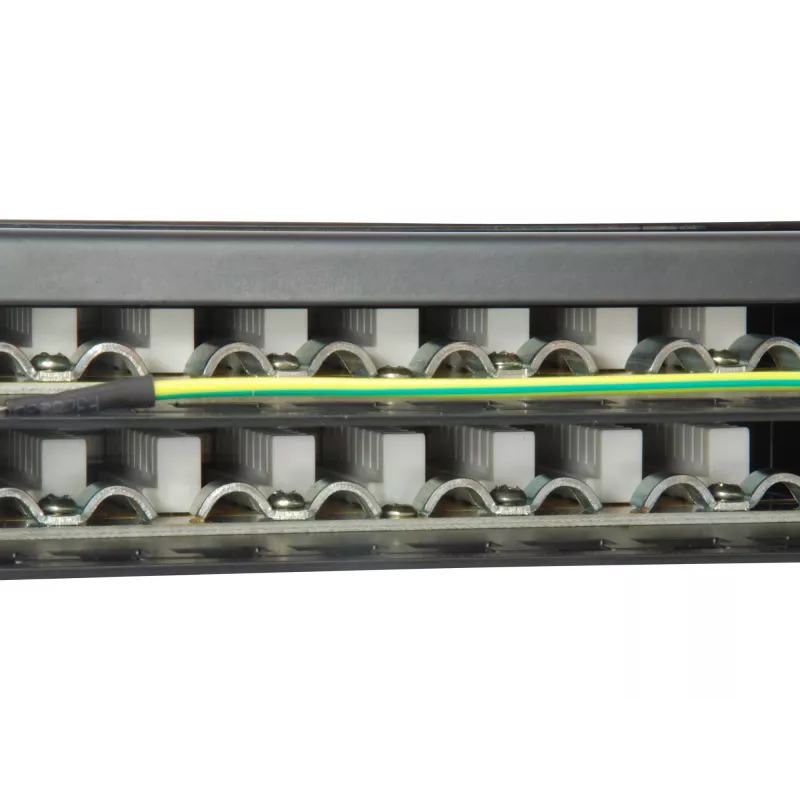

Mount the patch panel into a 19" rack using appropriate screws and cage nuts to secure the 1U unit. Terminate incoming shielded Cat6 cables to the rear LSA/110 blocks following standard pinouts and grounding practices. Connect shielded RJ45 patch cords to the front ports for device connections, and route cables through the integrated cable management to maintain strain relief and organized cabling. Label or refer to the printed port numbers for mapping connections.

Recommendations

Use equip® shielded Cat6 patch cords and ensure proper grounding of the panel and cable shields to achieve optimal shielding performance. Keep cable bends within manufacturer-recommended radii and avoid excessive cable tension to maintain signal integrity.
