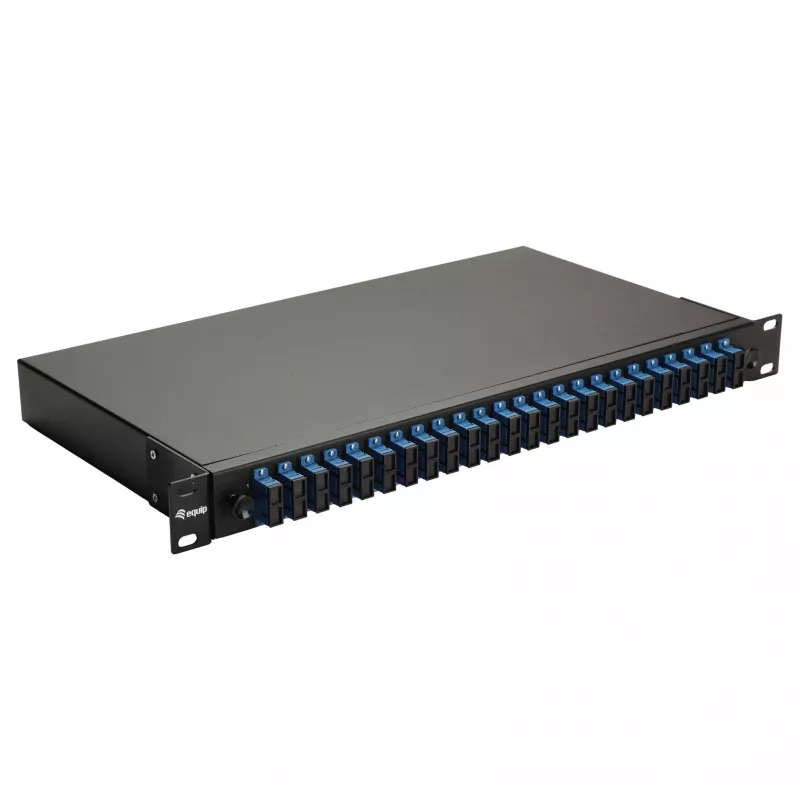

Equip 24-Port Fiber Optic Splice Box, SC Duplex, OS2, 1U, Equipped, Black

This 24-port splice box offers a complete, rack-ready solution for fibre management in data centres and telecom networks. With SC duplex adaptors and factory-fitted 2-metre OS2 pigtails, it streamlines splicing and patching in a single 1U unit.

Overview

The Equip splice box is a passive optical distribution panel designed for 19-inch racks. It combines a sturdy cold-rolled steel housing with a black RAL 9005 finish, providing a neat and secure environment for protecting fibre splices. Supplied with two slide-out splice trays, each capable of holding 12 splices, it simplifies installation and future maintenance. Whether used in data centres, telecommunication exchanges or FTTx deployments, this panel offers reliable fibre organisation and excellent performance.

What stands out

• Complete package: includes 24 SC duplex couplers and 24 SC/APC pigtails (G.657.A1, 9/125 µm) — ready to splice.
• High-density 1U design with 24 ports, ideal for space-constrained racks.
• Robust construction: cold-rolled steel chassis with black anti-corrosion coating.
• Four rear cable entry ports with glands simplify routing and strain relief.
• Low insertion loss below 0.3 dB ensures excellent signal integrity.

Technical details

• Rack units: 1U, 19-inch rack mount
• Ports: 24 x SC duplex
• Fibre type: OS2 single-mode (9/125 µm)
• Pigtails: 24 x SC/APC, G.657.A1, 2 m

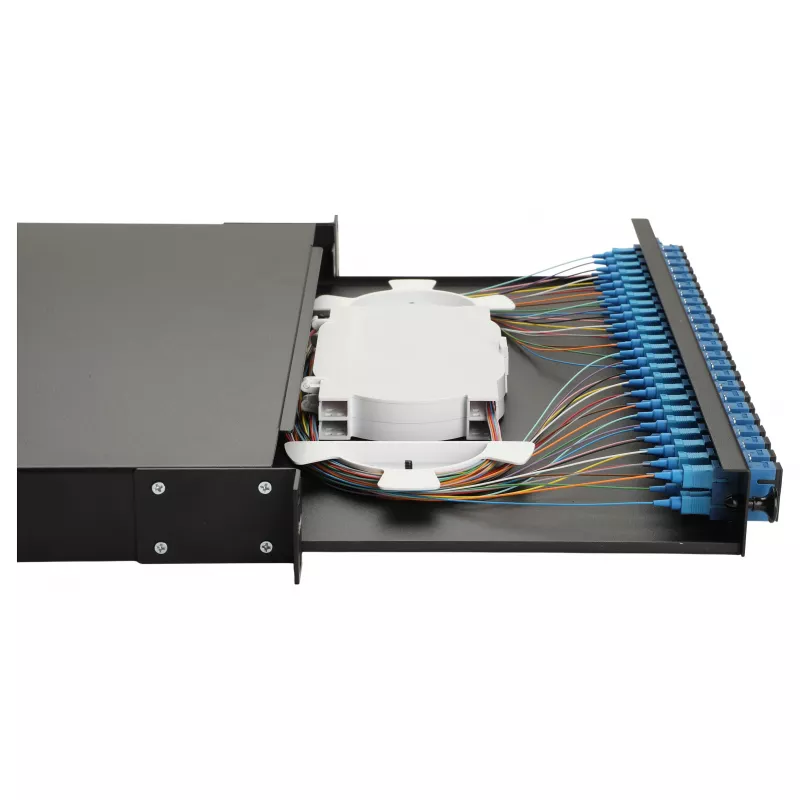

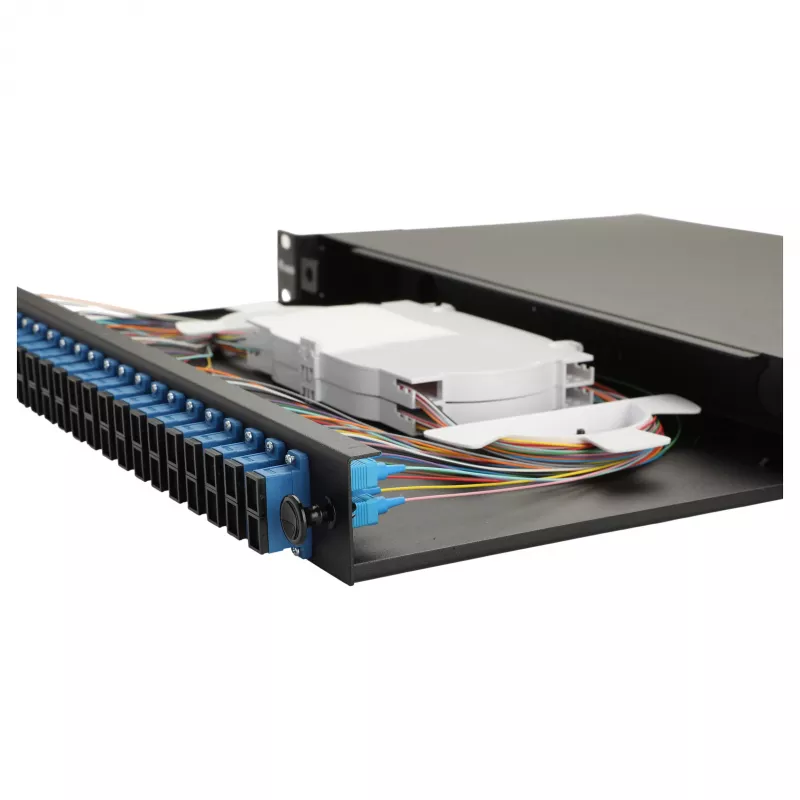

• Splice capacity: 24 splices (2 trays x 12)
• Housing: cold-rolled steel, black (RAL 9005)
• Accessories included: cable glands, splice protectors, mounting screws
• Compliance: RoHS, REACH

Our verdict

For network installers seeking a dependable, fully equipped fibre optic splice box, this Equip unit delivers impressive density and build quality. The inclusion of high-grade pigtails and SC duplex adaptors means you can mount and splice immediately, saving both time and material costs.
