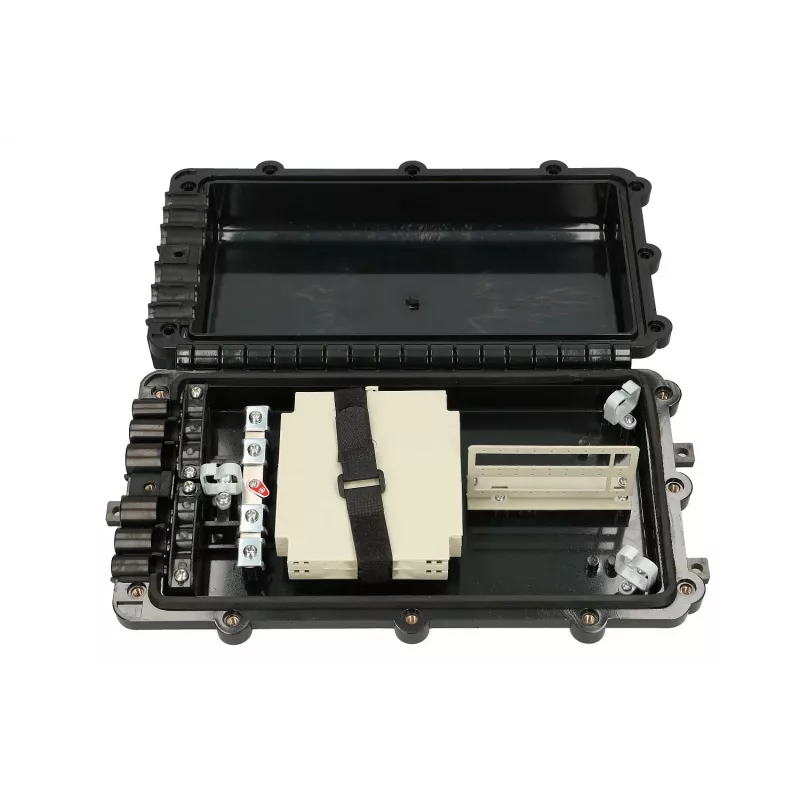

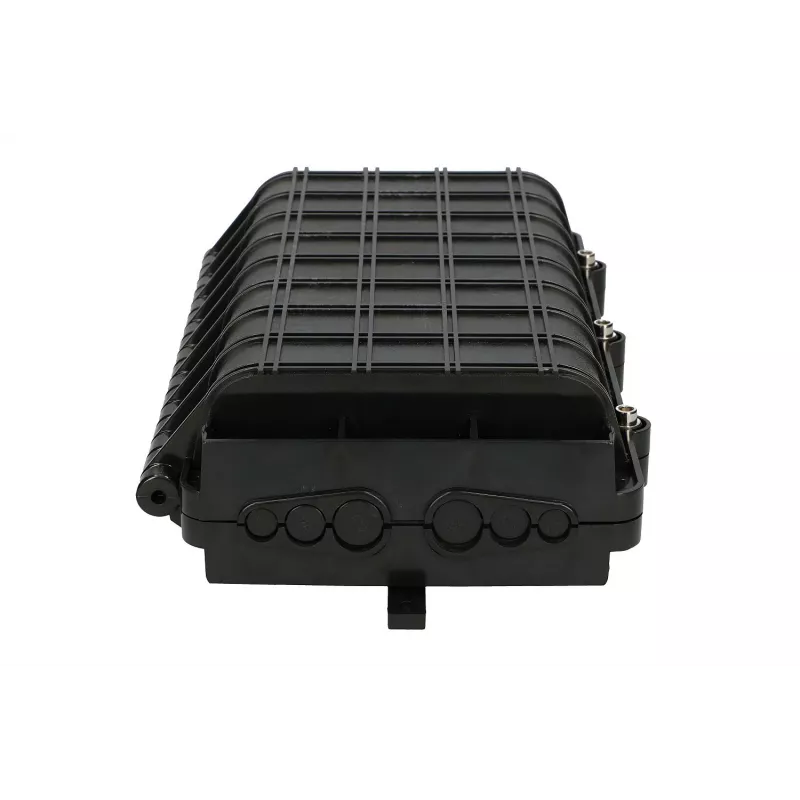

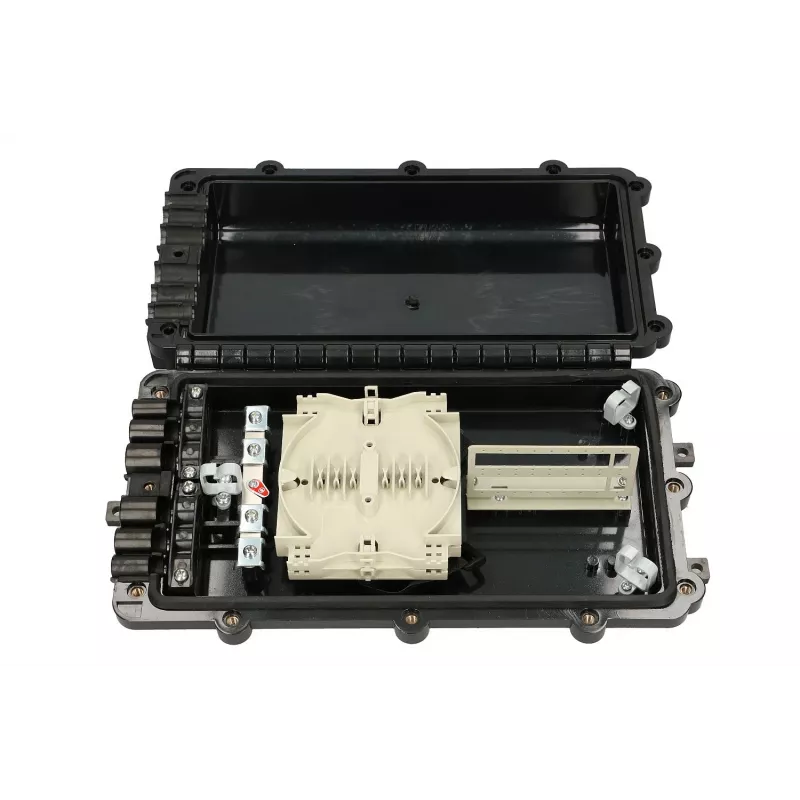

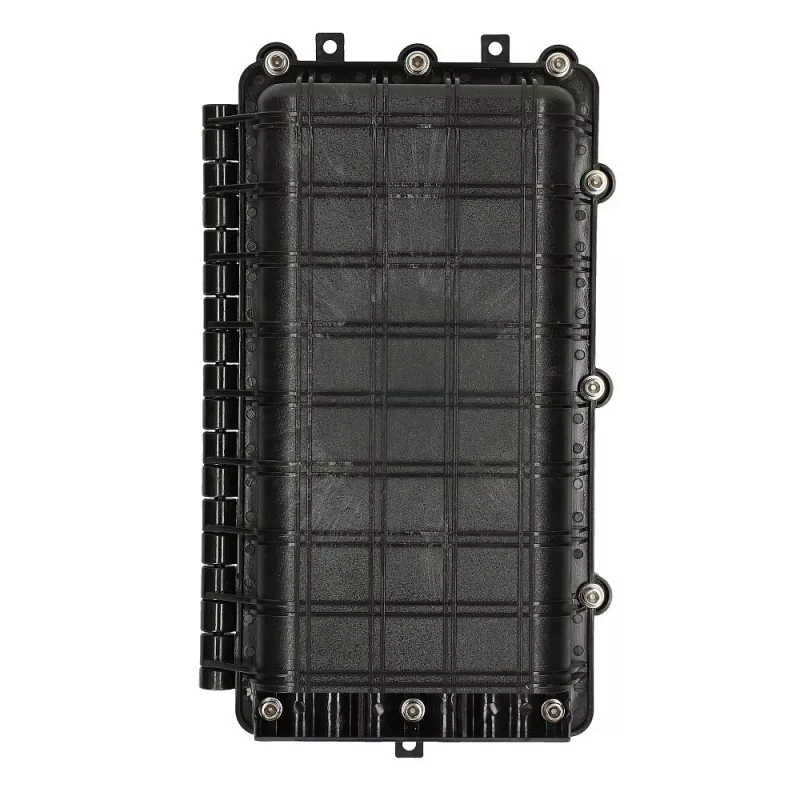

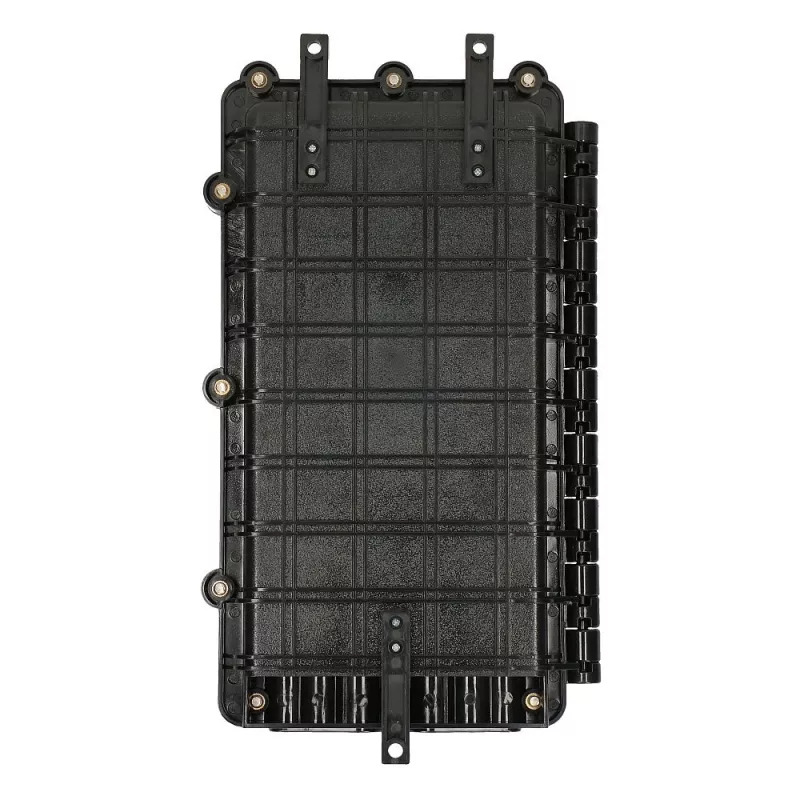

Outdoor fiber optic splice closure Extralink Jerry 2 trays 24-core, ABS/PVC housing, black

Extralink Jerry outdoor fiber optic splice closure is designed for protected fiber management in outdoor and indoor network deployments. The enclosure accommodates two splice trays and supports up to 24 optical fibers. Constructed from ABS and PVC with a black finish, the unit provides weather-resistant protection for splices and adapters while enabling organized routing and termination of fibers in FTTX, access networks and other telecommunications infrastructure.

Advantages

The compact, lightweight design simplifies installation on walls or poles and reduces handling effort. The enclosure supports a commutation field compatible with SC simplex or LC duplex adapters, allowing flexible termination options. Materials chosen for the housing deliver resistance to environmental factors typical for external installations, while internal trays keep splices secured and organized for easier maintenance and troubleshooting.

Suitable for

Key specifications

How to use

Open the closure according to the manufacturer’s access points and secure it to the chosen mounting surface. Route the incoming and outgoing fiber cables through the provided entry ports, ensuring sufficient slack for splice management. Prepare fibers, perform splicing in the splice trays and place splices into the tray protection holders. Install adapters in the commutation field as required for SC simplex or LC duplex terminations, then close and seal the housing to restore environmental protection.

Recommendations

Ensure cable entries are sealed with appropriate grommets or sealing materials to maintain weather resistance. Follow fiber bend-radius guidelines while routing inside the closure and secure splice trays to prevent movement. For outdoor deployments, periodically inspect seals and adapter interfaces and perform maintenance in dry conditions to preserve performance and longevity.
