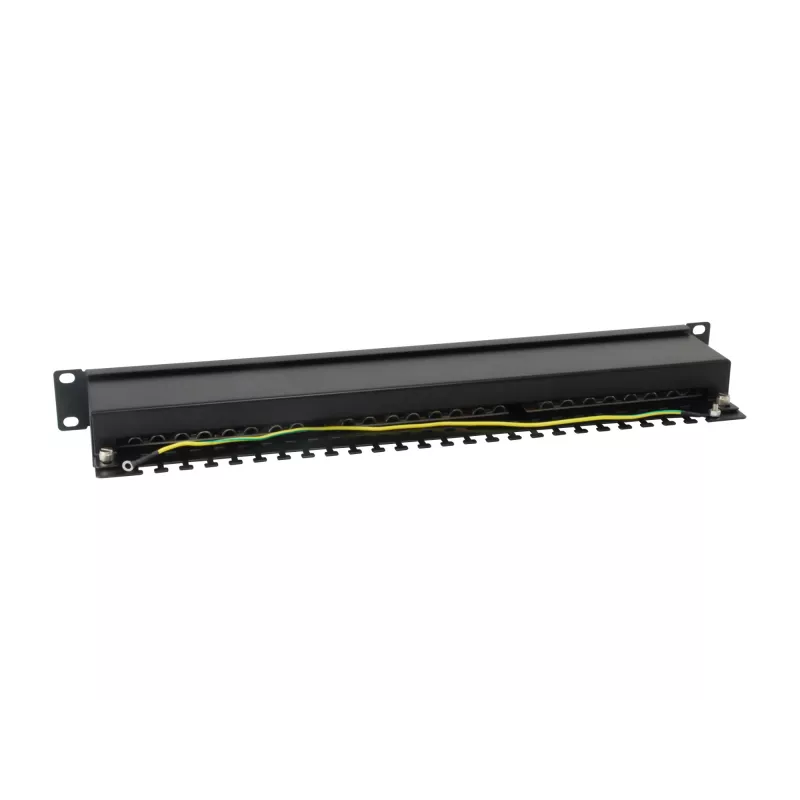

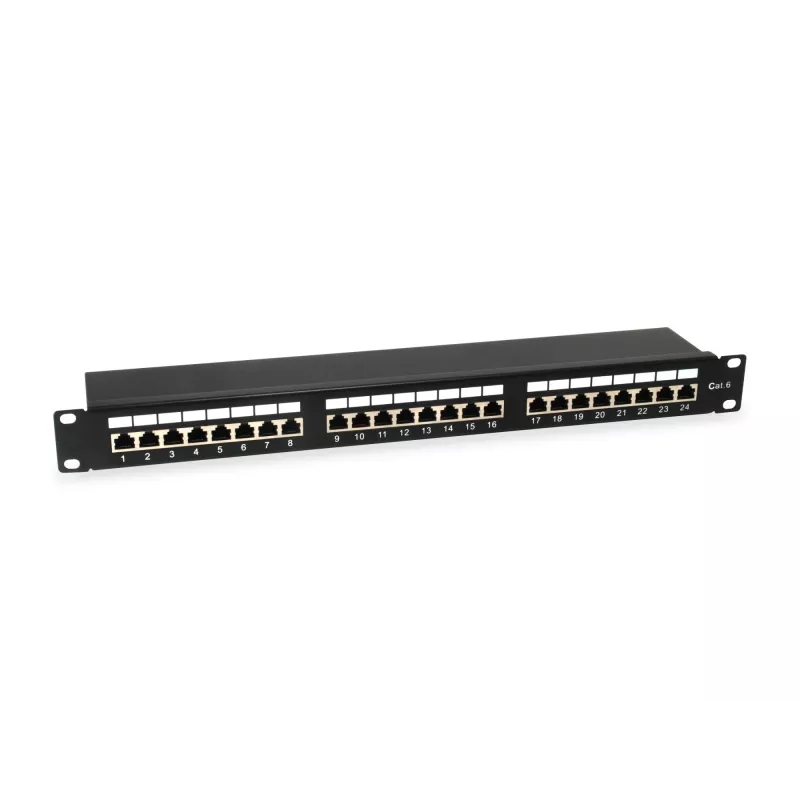

Equip 24-Port Cat.6 Shielded Patch Panel, Light Grey

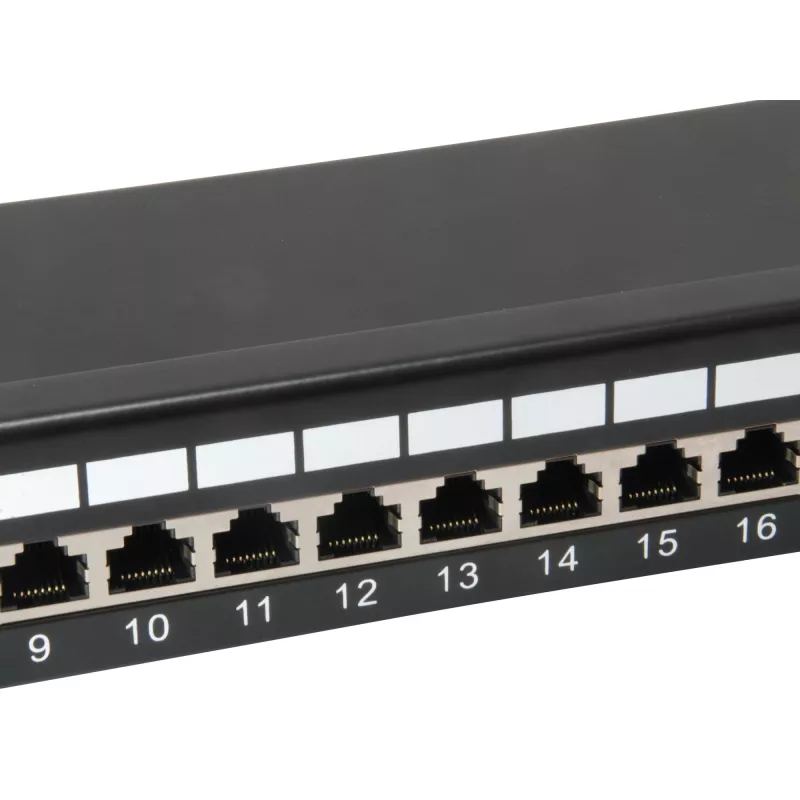

The equip® Patch Panel is a 19" 1U network distribution unit designed for organized rack installations and Gigabit Ethernet applications. It provides 24 shielded RJ45 ports compatible with Cat6 cabling and supports both LSA and 110 termination standards. Each port is numbered for easy identification, and the panel integrates a cable management system to improve routing and strain relief in patching environments.

Advantages

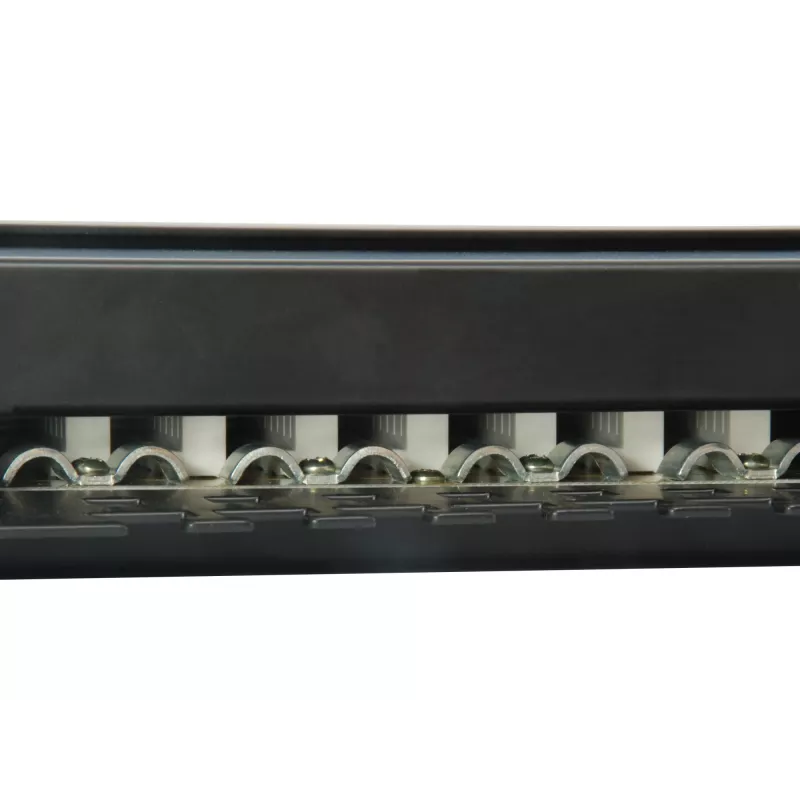

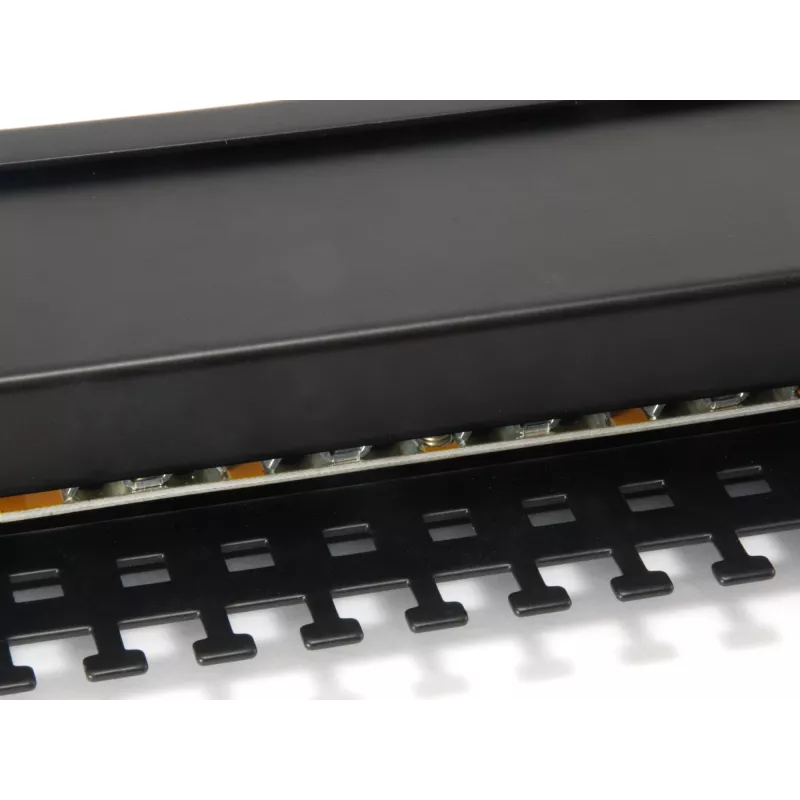

The patch panel offers 24 shielded RJ45 ports in a compact 1U rack format, ensuring compatibility with shielded Cat6 cabling and reducing electromagnetic interference. Integrated cable management improves cable routing and strain relief, while numbered ports simplify identification and maintenance. The unit is suitable for use with equip® shielded patch cords and cabling accessories to help maintain consistent performance across the network.

Suitable for

• 17" and 19" rack-mounted network patching in server rooms and wiring closets
• Gigabit Ethernet Cat6 shielded cabling installations
• Structured cabling systems requiring LSA or 110 termination

Key specifications

• Manufacturer: EQUIP
• Model / MPN: 326425
• EAN: 4015867207147
• Ports: 24 shielded RJ45
• Cable category: Cat6 (shielded)
• Rack size: 19", 1U
• Termination standards: LSA and 110
• Dimensions (W×H×D): 482.6 × 44.5 × 110.5 mm
• Weight: 1.5 kg
• Colour: Black / Light Grey front (product listing name indicates light grey)

How to use

Mount the patch panel in a 19" equipment rack occupying a single U of rack space. Terminate incoming shielded Cat6 cables using either LSA or 110 termination methods according to site cabling standards. Connect shielded patch cords to the numbered RJ45 ports to link switches, patch panels, and equipment. Ensure the panel's cable management features are used to route and secure cables, and maintain the cable shield continuity by following grounding practices for shielded installations.

Recommendations

For optimal performance, pair the patch panel with equip® shielded Cat6 patch cords and maintain proper grounding for all shielded components. Use the integrated cable management to avoid bends and strain, and label both ends of critical links for easier troubleshooting and maintenance.
