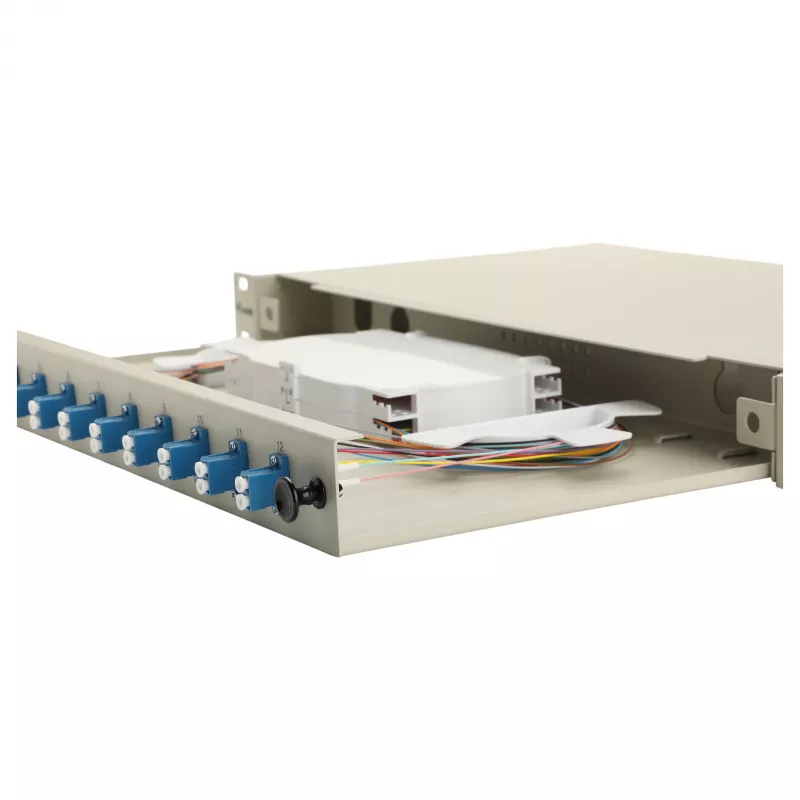

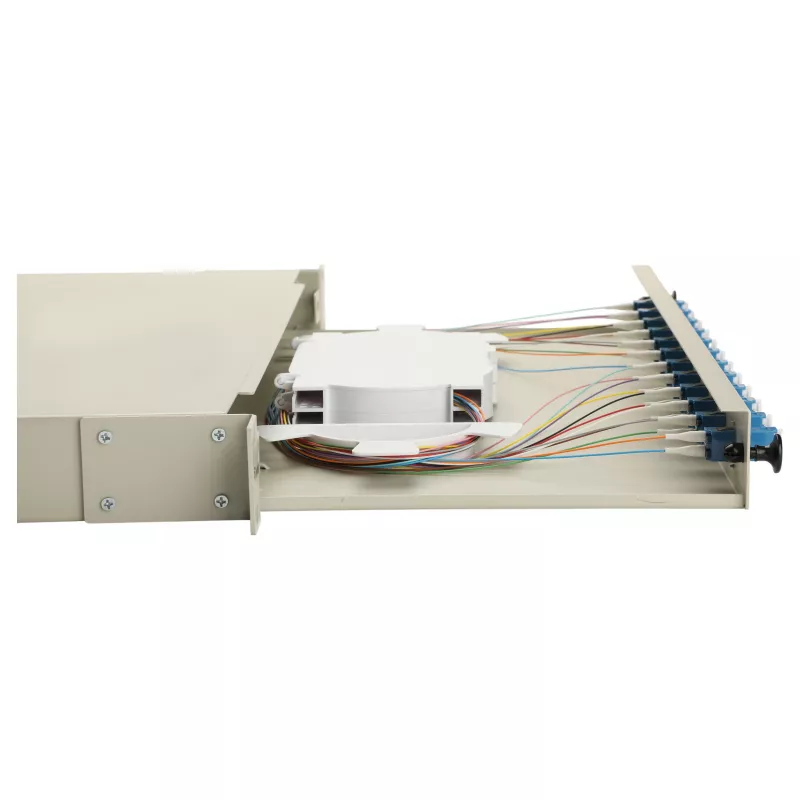

Equip 12-Port LC Duplex OS2 Fiber Optic Splice Box, 1U Rackmount, Grey

The Equip 12-Port Fiber Optic Splice Box is a complete, rack-ready solution for managing and protecting fiber optic splices in professional network environments. Designed for 19-inch racks, this 1U unit arrives pre-equipped with 12 LC duplex adapters, supporting up to 24 fibers in single-mode OS2 applications. Its sturdy steel construction and grey finish make it a reliable choice for data centers, server rooms, and enterprise cabling systems.

Advantages

This splice box saves installation time with its factory-installed adapters, eliminating the need for separate component ordering. The 1U low-profile design optimizes rack space while providing ample capacity for splicing and patching. Its robust steel housing ensures long-term durability and protection for delicate fiber connections.

Suitable for

• Data center fiber distribution
• Local area network (LAN) backbone wiring
• Telecommunications and ISP infrastructure
• FTTH and building distribution frames

Key specifications

• Product Type: Fiber Optic Splice Box
• Form Factor: Rackmount, 1U, 19-inch width
• Port Quantity: 12 x LC Duplex
• Fiber Mode: Single-mode, OS2
• Total Fiber Capacity: 24 fibers
• Max Splice Capacity: 24 splices
• Material: Steel (grey)
• Pre-equipped with LC Duplex adapters and splice trays
• Cable Entry: Rear
• Mounting: Front panel screws
• Application Environment: Indoor
• Compliance: RoHS, CE

Recommendations

For optimal performance, use this splice box with OS2 grade fiber optic cables and maintain proper bend radii. Ensure splices are securely placed in the included trays before closing the box. Regular cleaning of the LC connectors is recommended to minimize insertion loss.
