Equip 12-Port Fiber Optic Splice Box, SC Duplex, OS2, 1U, Fully Equipped, Black (591909)

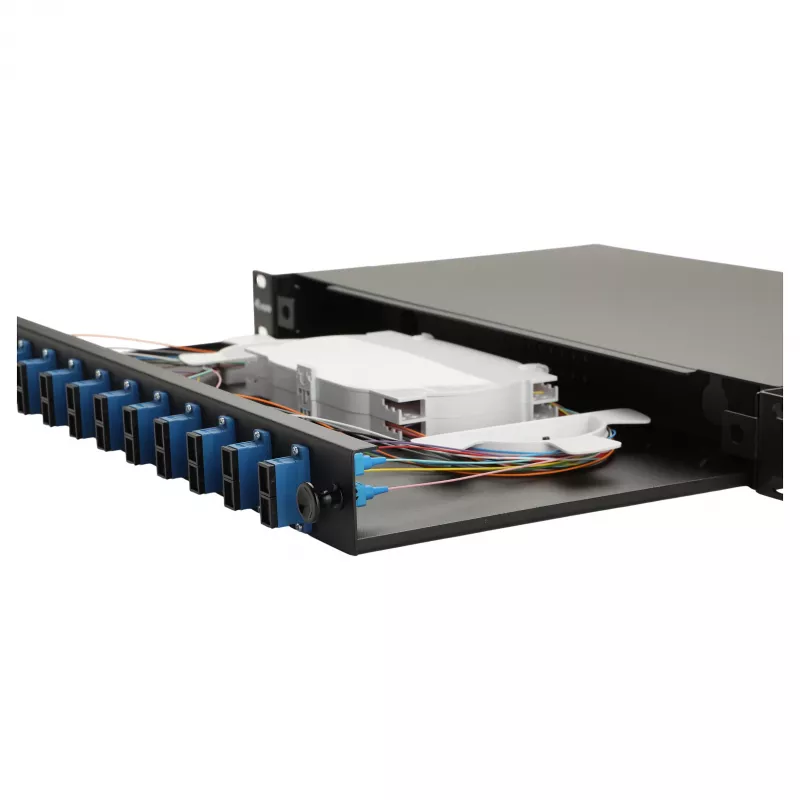

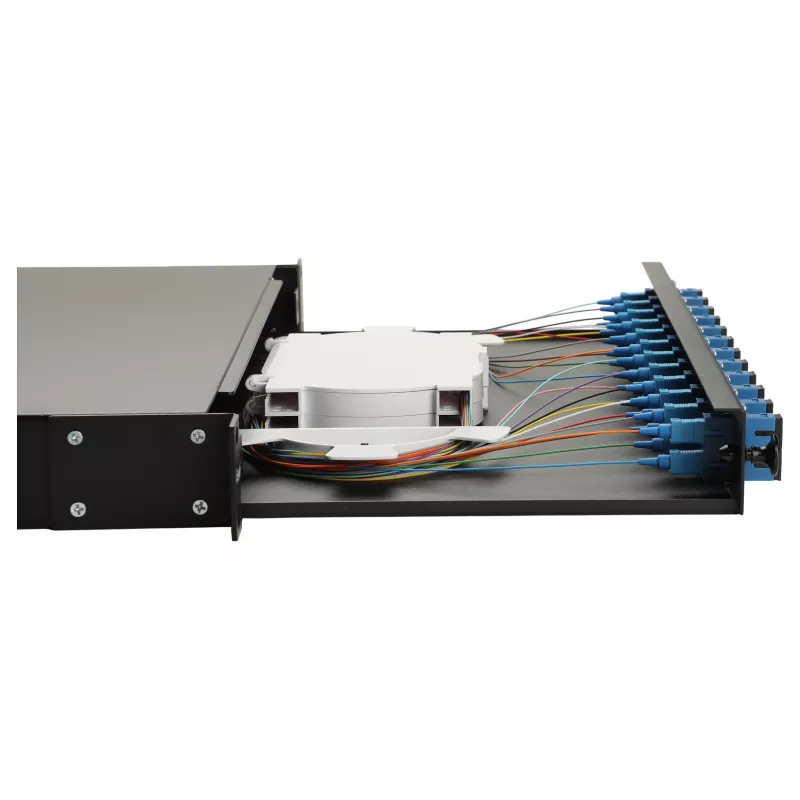

This Equip 12-Port Fiber Optic Splice Box is a complete 1U rack-mountable solution for splicing and terminating single-mode OS2 cables. Pre-equipped with SC duplex adapters and factory-installed pigtails, it delivers instant, reliable connectivity for structured cabling and FTTH networks, eliminating the need for additional components.

Advantages

The integrated design saves installation time and effort — no separate adapter panels or splicing kits are required. The sturdy steel housing protects delicate fiber splices and terminations, while the compact 19-inch form factor fits seamlessly into standard server racks and telecom cabinets. Low insertion loss and full IP20 protection ensure consistent performance in demanding environments.

Suitable for

• Data center fiber distribution frames
• Telecom rooms and network cabinets
• FTTH/FTTX termination points
• LAN and WAN infrastructure
• Industrial and enterprise cabling systems

Key specifications

• Ports: 12 x SC Duplex
• Fiber mode: OS2 single-mode
• Rack height: 1U (19-inch)
• Pigtails: SC/UPC, OS2, 1.5 m
• Splice tray capacity: up to 24 fibers
• Housing material: steel, black finish
• Dimensions: 19-inch rackmount, 1U height
• Protection class: IP20
• Standards: TIA/EIA-568-C.3, ISO/IEC 11801

Recommendations

Pair this splice box with standard OS2 patch cords for a complete fiber patching solution. For easier fiber management, use the rear cable entries and secure excess fiber with the included accessories.
