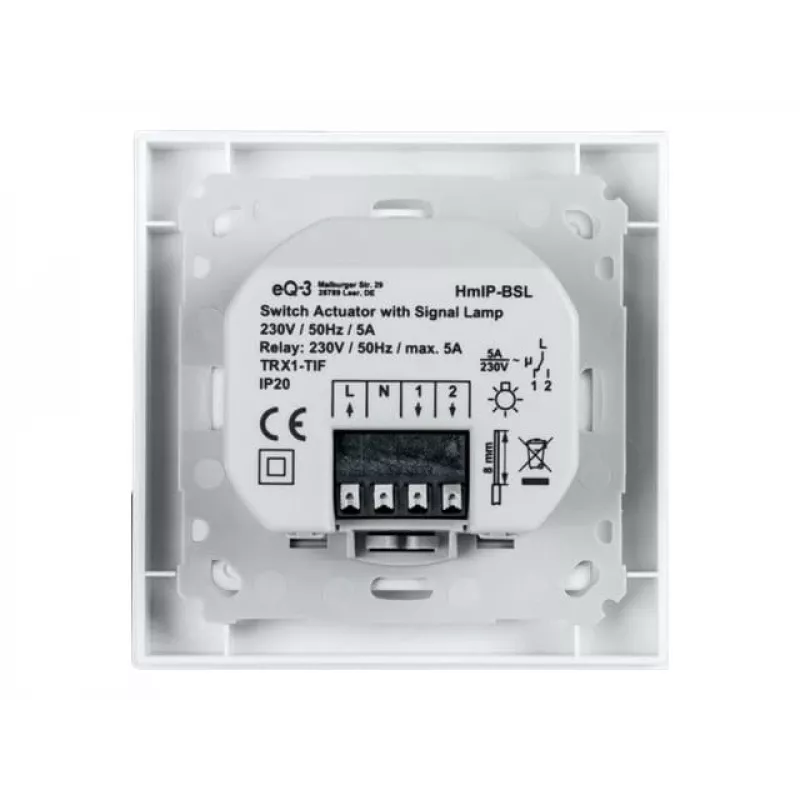

Light switch Homematic IP HmIP-BSL White Buttons IP20 230V 5A

The Light switch Homematic IP HmIP-BSL White Buttons IP20 230V 5A is a compact indoor smart switch designed for controlling lighting circuits in modern homes. Finished in white with tactile buttons, it fits standard mounting dimensions of 86 mm x 86 mm x 52 mm and connects to a 230 V mains supply. The device supports a maximum continuous current of 5 A and carries an IP20 protection rating suitable for dry indoor environments.

Advantages

The Homematic IP HmIP-BSL combines a discreet visual design with straightforward manual control via physical buttons. Its compact footprint allows installation in typical wall boxes while maintaining a low profile. As an indoor device with IP20 protection and a 230 V rating, it is compatible with common residential electrical systems and supports lighting loads up to 5 A. The product’s simple mechanical operation ensures immediate response without a learning curve for basic on/off or scene control.

Suitable for

• Switching indoor lighting circuits in homes, apartments and offices
• Integration into smart home setups that use Homematic IP devices
• Replacing or upgrading conventional wall switches where a compact, button-style control is desired
• Controlling LED, incandescent or low-voltage lighting through appropriate wired configurations and compatible drivers

Key specifications

• Protection rating: IP20, for indoor/dry location use
• Rated voltage: 230 V AC
• Maximum current: 5 A continuous
• Dimensions: 86 mm x 86 mm x 52 mm
• Finish: white housing with tactile buttons

How to use

Install the switch into a suitable flush-mounted wall box and connect the live and switched live conductors according to local wiring regulations; a qualified electrician should perform the installation. After mains connection, operate the buttons to toggle lighting loads or to trigger predefined scenes if integrated into a Homematic IP system. Ensure the total connected load does not exceed the 5 A rating and verify compatibility with any connected LED drivers or transformers.

Recommendations

Use this switch only in dry indoor environments. For loads with inrush currents or electronic drivers, confirm compatibility and derating requirements—especially when controlling LED drivers or inductive loads. Follow local electrical codes and have wiring carried out by a certified electrician.
