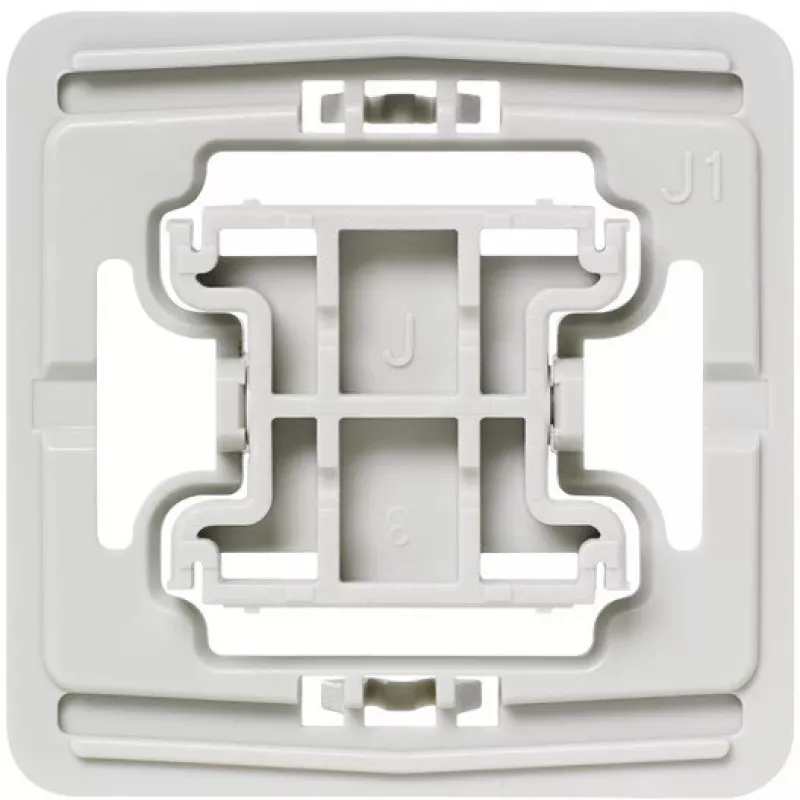

Mountable White Homematic IP EQ3-ADA-J1 enclosure, 60×60×26 mm

Mountable White Homematic IP EQ3-ADA-J1 enclosure is a compact housing designed to protect and organize small electronic modules and smart-home components. With external dimensions of 60×60×26 mm, the enclosure offers a space-saving solution for installations in distribution cabinets, next to DIN-rail mounted equipment or on flat surfaces such as walls. The white finish provides a neutral appearance that integrates with typical interior and technical environments.

Advantages

The enclosure provides a rigid protective shell that prevents accidental contact with electronics and helps keep wiring tidy. Its mountable form factor allows secure attachment near DIN-rail assemblies or direct surface mounting, enabling flexible placement inside cabinets or on walls. The compact size reduces occupied space while accommodating small control units, sensors, or interface modules. The white color and clean lines support discreet installation in both residential and technical spaces.

Suitable for (tasks / use cases)

• Housing small smart-home control modules and interface boards
• Protecting sensor electronics and relay modules in distribution cabinets
• Surface mounting of compact controllers on walls or panels
• Tidy enclosure for prototype electronics or retrofit installations

Key specifications

• External dimensions: 60 × 60 × 26 mm
• Color: white
• Mounting options: surface mount and mounting adjacent to DIN-rail installations
• Material: rigid plastic (suitable for housing low-voltage electronics)
• Form factor: compact, rectangular enclosure for small PCBs and modules

How to use

Open the enclosure according to the product's removable cover design, place the electronic module or PCB inside and route any necessary cables through the available entry points or knockouts. Secure the circuit board with the intended internal fixing points or non-permanent mounts if required. Close the cover to restore the protective barrier and attach the enclosure to a flat surface using screws or mount it adjacent to DIN-rail equipment where space allows. Ensure ventilation and cable strain relief are addressed during installation.

Recommendations

Use the enclosure for low-voltage, non-heat-generating modules and avoid placing power-dissipating components without additional ventilation. Check compatibility of PCB size and connector positions before final mounting. For installations inside distribution cabinets, position the enclosure to allow safe cable routing and service access.
