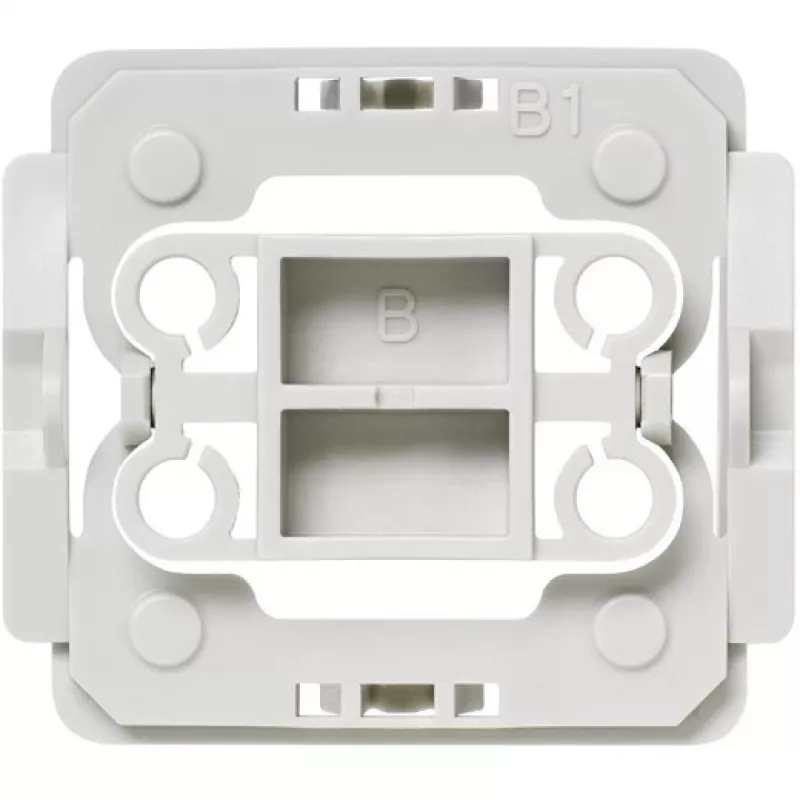

Mountable White Homematic IP EQ3-ADA-B1 — 58×18×52 mm enclosure

Mountable White Homematic IP EQ3-ADA-B1 — 58×18×52 mm enclosure is a compact protective housing from Homematic IP designed for mounting applications. Its clean white finish and low-profile dimensions (58 mm wide, 18 mm deep, 52 mm high) provide a discreet solution for protecting small electronic modules and components in automation installations. The enclosure is intended to be fixed to flat surfaces or positioned near DIN rails where space is limited, offering basic mechanical protection and a tidy appearance for wiring and small assemblies.

Advantages

This mountable enclosure offers a compact footprint and lightweight construction that simplify installation in confined spaces. The neutral white color integrates with most indoor environments without attracting attention. The low-profile design reduces protrusion from mounting surfaces while still providing enough internal volume for many standard small modules. Materials and design focus on ease of mounting and secure housing of electronics to prevent accidental contact and to keep wiring organized.

Suitable for

• Housing small automation modules and adapters
• Wall-mounted sensor or control module installations
• Projects requiring discreet and low-profile mounting
• Protecting wiring terminations and small PCB assemblies

Key specifications

• Color: white
• External dimensions: 58 × 18 × 52 mm (width × depth × height)
• Mounting type: surface-mount / mountable adjacent to DIN rail
• Application: enclosure for small electronic modules and components
• Design: low-profile, lightweight housing for tidy installations

How to use

Open the enclosure according to the manufacturer's removable cover or fastening method, place the module or PCB inside ensuring correct orientation and clearance, and secure the electronics with the recommended screws or clips. Route cables through any provided entry points or cable glands and close the enclosure to secure the contents. Mount the enclosure on a flat surface using screws or adhesive recommended for the mounting surface, or position it adjacent to a DIN rail where appropriate. Ensure adequate ventilation and avoid placing heat-generating components in cramped conditions without checking manufacturer thermal limits.

Recommendations

Verify that the internal dimensions and available mounting points suit your specific module before installation. Use appropriate cable strain relief and observe safe wiring practices. For installations near heat sources or in humid environments, consider additional protection or alternative enclosures rated for those conditions.
