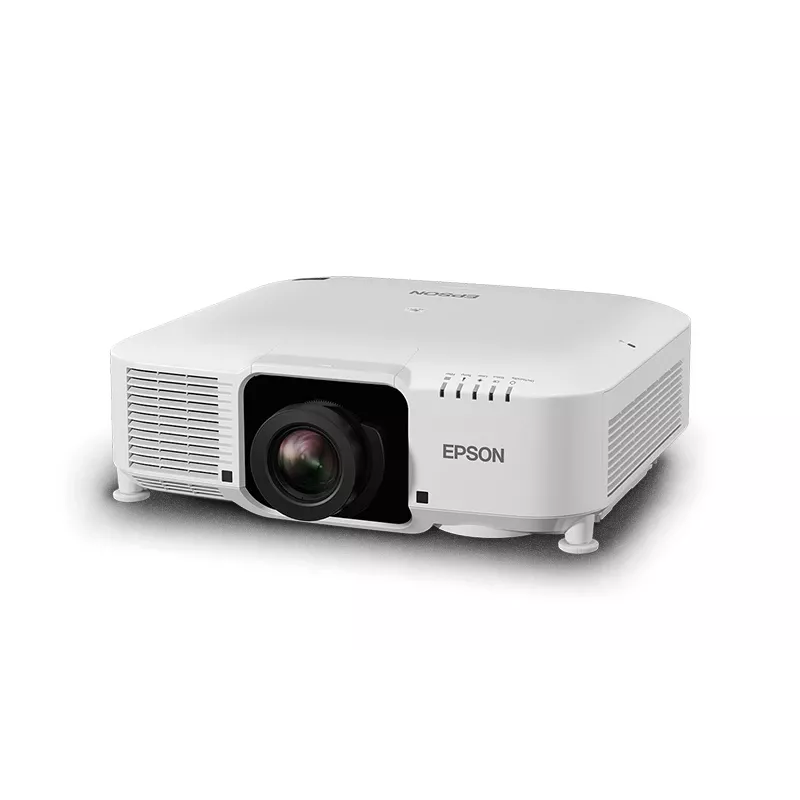

Epson EB-PU1007W Large venue projector 7000 ANSI lumens 3LCD WUXGA (1920x1200) White

The EB-PU1007W is a compact, interchangeable-lens installation projector delivering 7,000 ANSI lumens of brightness and WUXGA (1920x1200) resolution with 4K enhancement and HDR. Sold as a body only unit, it uses 3LCD technology and a long-life laser light source to produce bright, true-to-life images for large venues, lecture theatres, museums and meeting rooms. The projector supports a wide throw ratio range (0.35–10.11:1) and is compatible with Epson’s lens family, allowing flexible placement including ultra-short-throw setups.

Advantages

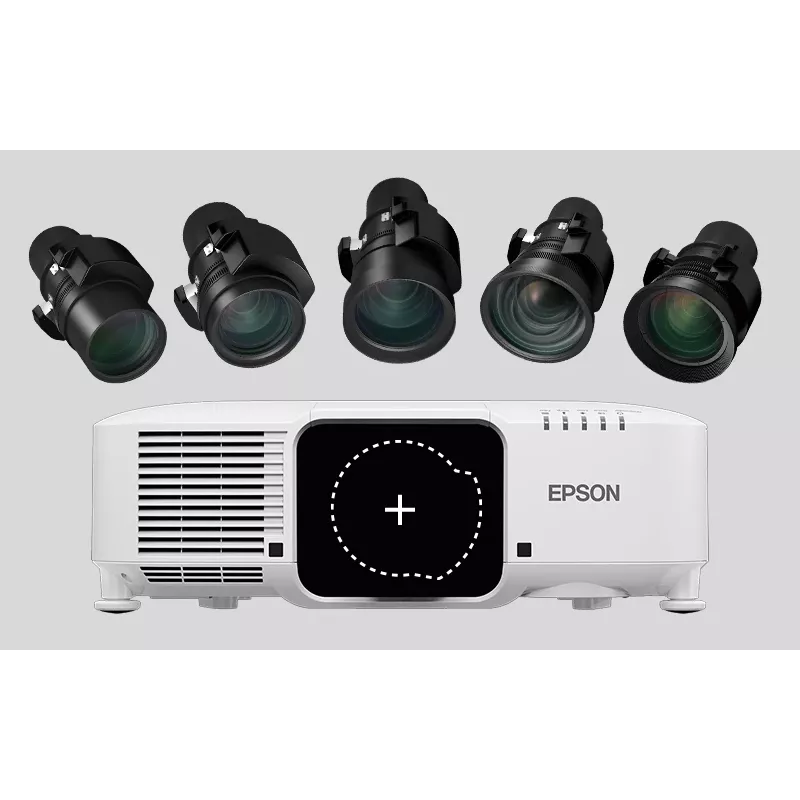

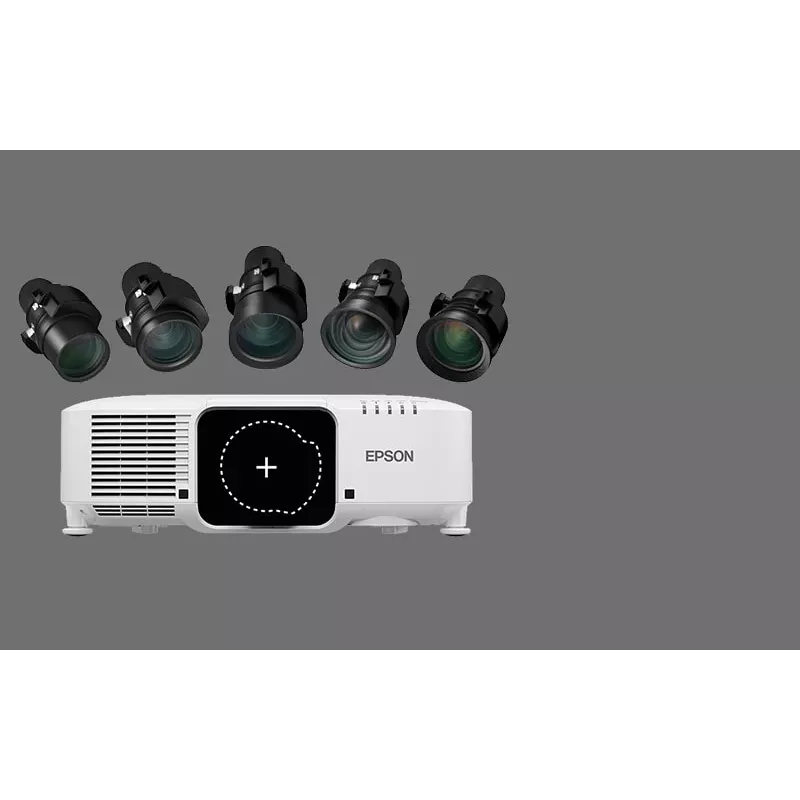

The EB-PU1007W combines high brightness and WUXGA resolution to reproduce clear whites, vivid details and deep blacks while supporting advanced installation features such as edge blending, stacking and projection mapping. Its compact and lightweight body simplifies transport and storage and can be integrated unobtrusively into different environments. Interchangeable lens support provides adaptability for varied projection distances and applications, and optional accessories like an external camera module enable PC-free geometry correction. NFC and Epson software tools streamline multi-projector setup and diagnostics.

Suitable for

• Large venues and auditoriums
• Museums and visitor attractions
• Lecture theatres and classrooms
• Corporate meeting rooms and presentation spaces
• Multi-projector installations requiring edge blending or stacking

Key specifications

• Brightness: 7,000 ANSI lumens
• Native resolution: WUXGA (1920x1200) with 4K enhancement
• Projection technology: 3LCD
• Light source: Laser (long-life, up to 20,000 h; up to 30,000 h in economy mode)
• Throw ratio: 0.35 – 10.11:1
• Weight: 16.3 kg
• Colour: White (also available in black)
• MPN: V11HA34940, EAN: 8715946697215

How to use

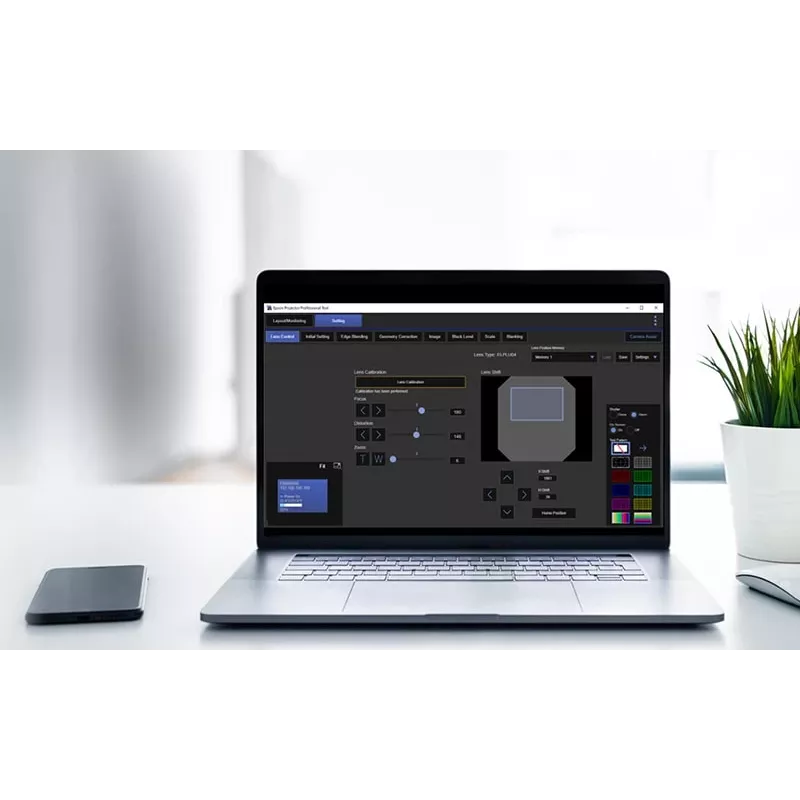

Install the EB-PU1007W using a compatible interchangeable lens chosen to match the desired throw distance and screen size; the projector is supplied as body only so select and mount an Epson lens suitable for the environment. Use Epson Projector Professional Tool for alignment, edge blending and projection mapping tasks. For stacked installations, attach the optional external camera module (ELPEC01) to perform geometry correction without a PC. Use NFC and Epson Projector Config Tool to simplify multi-projector setup, network configuration and diagnostics.

Recommendations

For consistent image quality in high-brightness venues, operate the laser light source in the recommended mode for your environment and schedule periodic cleaning and firmware updates. Choose lenses and projection modes (such as Cinema or Dynamic) according to content type, and use Epson’s installation tools for precise alignment in multi-projector systems.
