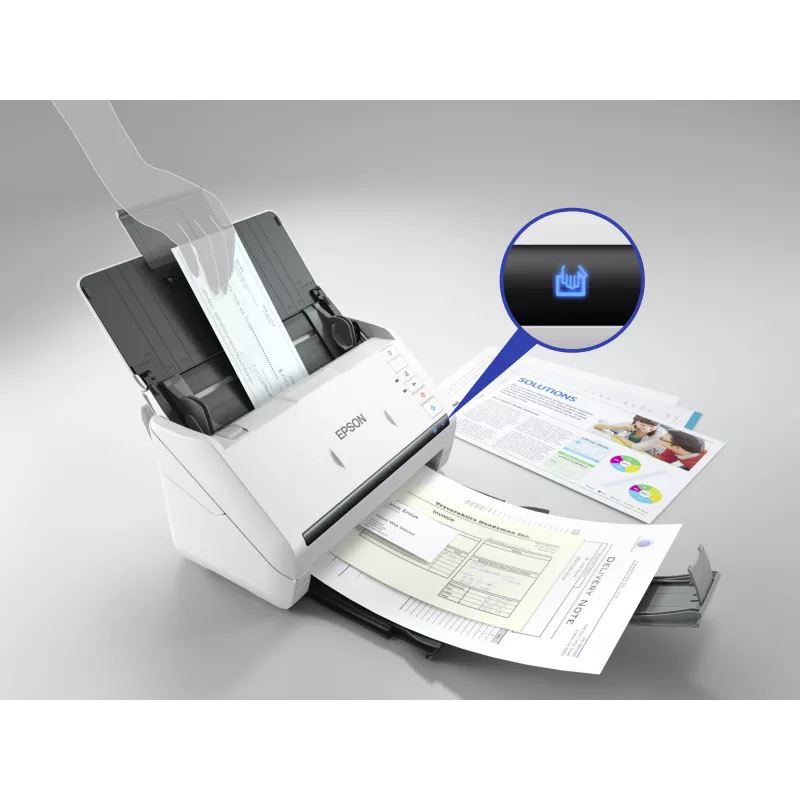

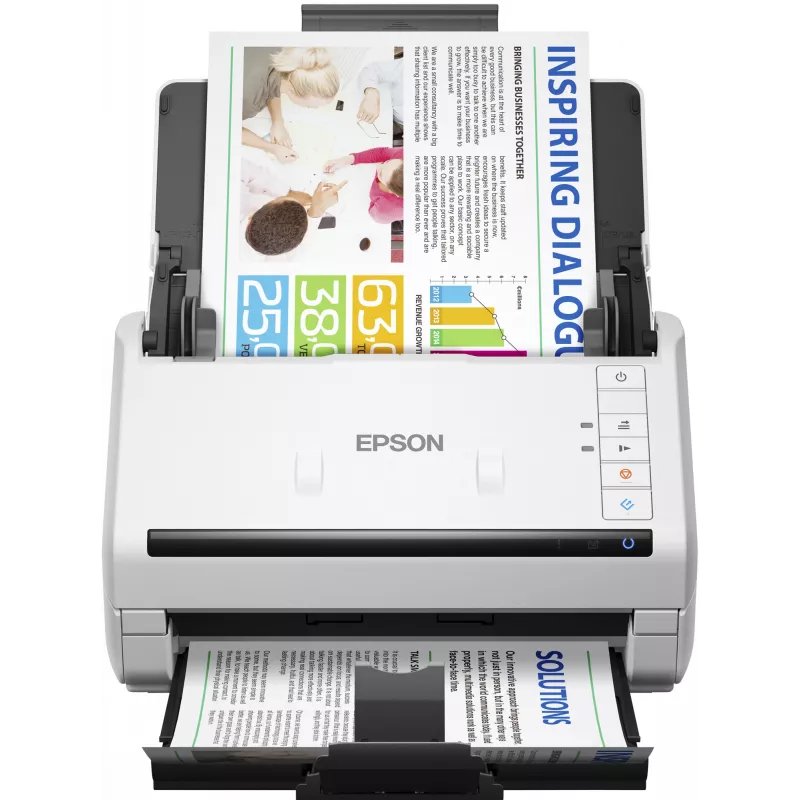

Epson DS-770 II Sheet-fed scanner 600 x 600 DPI A4 White

The Epson WorkForce DS-770II sheet-fed scanner combines high-speed scanning with intelligent features designed to preserve data integrity and simplify integration into business workflows. It supports an ADF capacity of 100 pages and can scan at speeds up to 45 ppm (90 ipm) in duplex, handling a wide range of media types and sizes up to a maximum scan length of 6096 mm and an optical resolution of 600 x 600 dpi.

Advantages

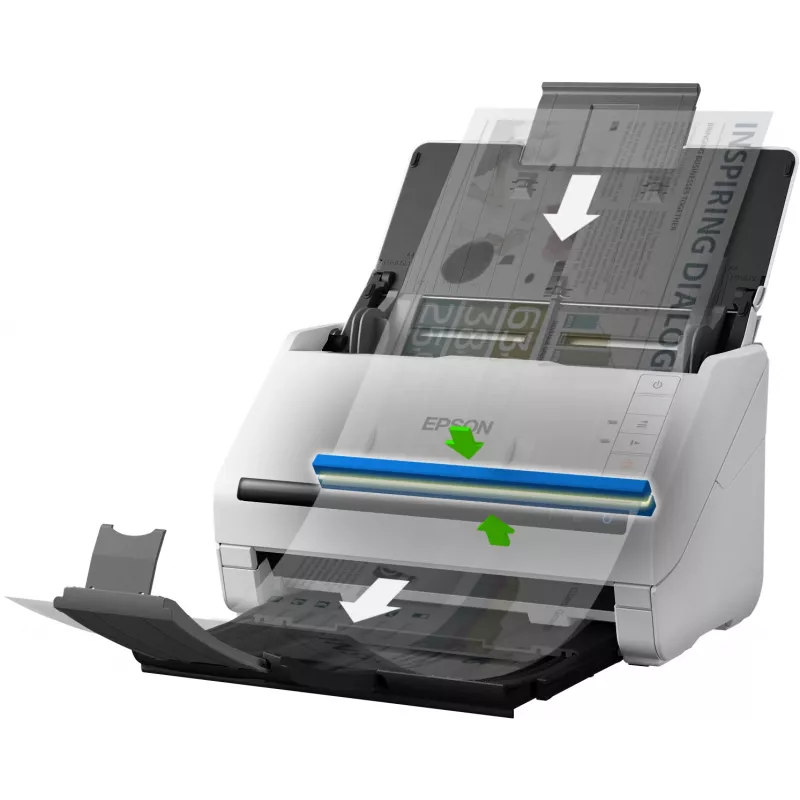

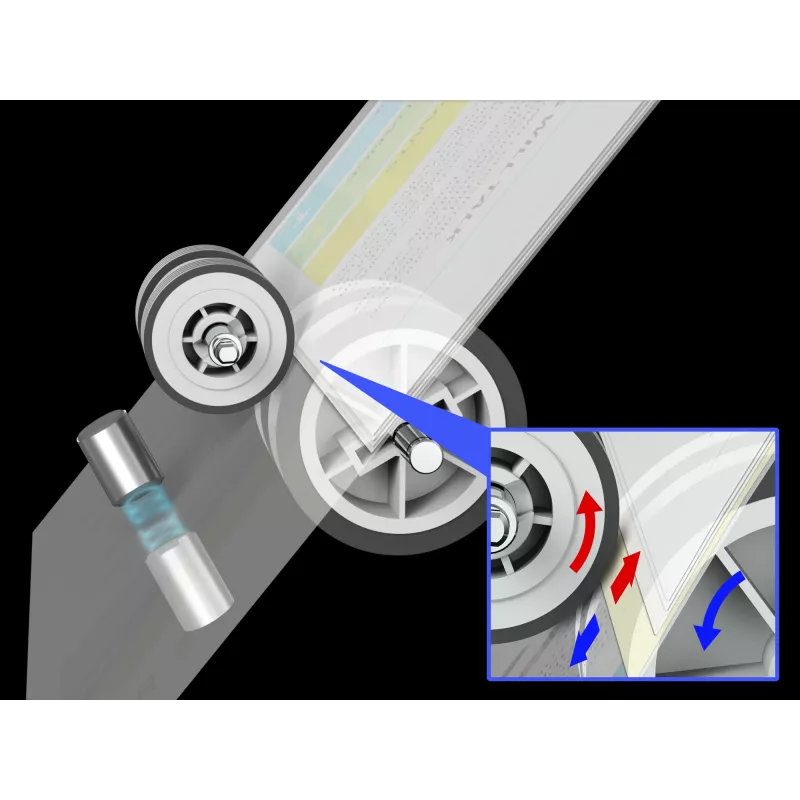

Intelligent functions such as slow mode for fragile or crumpled documents, an Active Separation Roller System to reduce double feeds, and Double Feed Detection Skip (DFDS) improve scanning reliability and reduce interruptions. Single-pass duplex scanning and support for media from 27 gsm paper up to 413 gsm card stock allow versatile handling of documents including plastic cards, postcards and longer originals. High-speed USB 3.0 connectivity and TWAIN/WIA/ISIS driver support ensure compatibility with document management systems, while Epson Scan 2.0 and Document Capture Pro provide image enhancement and easy document storage.

Suitable for

• High-volume office scanning and digitisation workflows
• Document archiving and indexing for corporate records
• Processing mixed media such as receipts, passports (with flatbed kit), plastic cards and envelopes
• Integration with document management systems and automated batch scanning

Key specifications

• Model: Epson WorkForce DS-770II (B11B262401)
• Scan speed: up to 45 ppm / 90 ipm (duplex)
• Optical resolution: 600 x 600 dpi
• Maximum scan size: 215.9 x 6096 mm
• ADF capacity: 100 sheets
• Daily duty cycle: up to 7,000 pages
• Media range: paper from 27 gsm to 413 gsm; supports plastic cards and postcards
• Connectivity: USB 3.0; TWAIN, WIA, ISIS drivers
• Built-in display: Yes
• Duplex scanning: Yes (single-pass)
• Weight: 3.7 kg
• Colour: White

How to use

Load documents into the 100-sheet ADF or attach the optional flatbed conversion kit for items such as passports, books or stamps. Use the built-in display to select scan profiles or start scanning from a connected PC with Epson Scan 2.0 or Document Capture Pro. For best results, group similar document sizes when using Auto Scan Mode so batches are processed consistently; the scanner will perform single-pass duplex capture and apply image enhancement such as de-skew and auto-rotate automatically if enabled.

Recommendations

For reliable long-term operation, use standard office paper within the specified weight range, avoid feeding heavily creased or stuck-together documents without first separating them, and update scanner drivers to maintain compatibility with document management systems. Use the flatbed conversion kit for fragile, oversized or bound materials.
