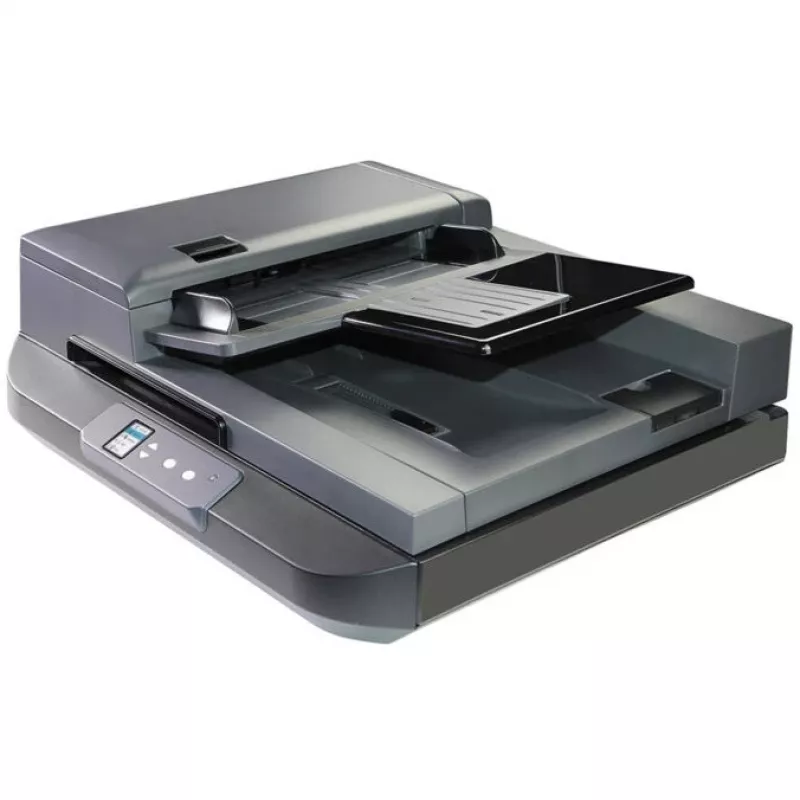

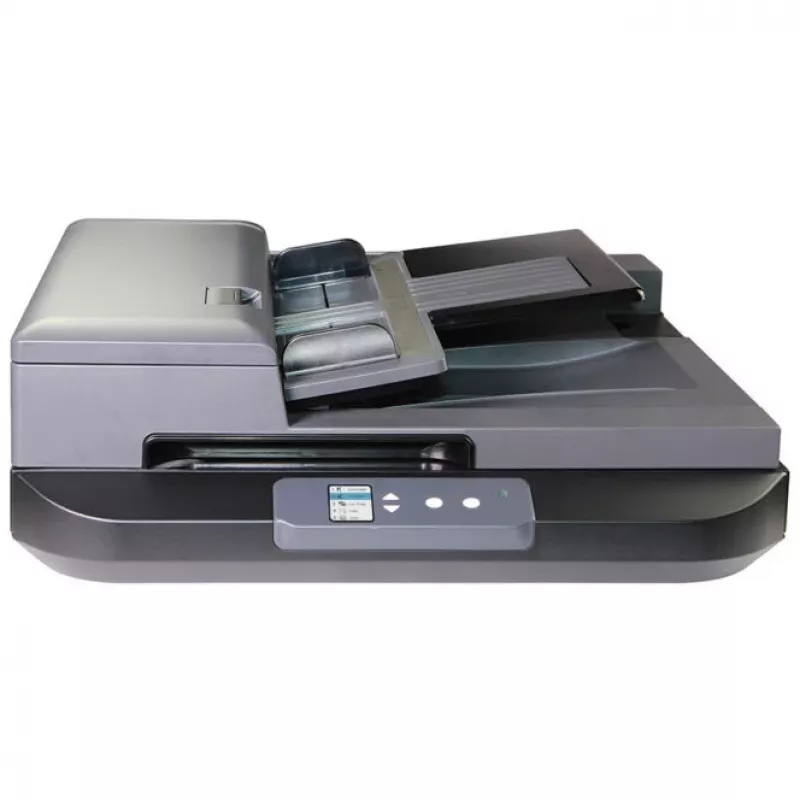

Flatbed & ADF scanner Avision AD5800 — 1200 x 1200 DPI, A4, 100-sheet ADF, duplex, LCD, white

The Avision AD5800 is a combined flatbed and automatic document feeder (ADF) scanner designed for busy offices that need high-volume, reliable scanning. It supports A4 media, offers an optical resolution of 1200 x 1200 DPI and a 100-sheet ADF with duplex capability. The scanner includes a 1.77" LCD, CMOS CIS sensor, LED illumination and a daily duty cycle up to 15,000 sheets, making it suitable for mixed-media digitization such as plain paper and business cards.

Advantages

The AD5800 delivers fast color, grayscale and monochrome scanning at speeds up to 80 pages per minute and features two reading heads for true duplex scanning in a single pass, reducing processing time. Ultrasonic double-feed detection improves feed reliability, while the long-document mode supports pages up to 240" (609.6 cm). A built-in 1.77" LCD and Button Manager V2 software simplify destination selection and one-touch workflows, and bundled drivers (TWAIN/ISIS) plus AVScan and PaperPort provide image processing and document management tools.

Suitable for

• High-volume office scanning and digitization
• Healthcare records and insurance documents (long-document support)
• Document management workflows requiring searchable PDFs and cloud upload
• Mixed-media scanning (A4 pages, business cards, plain paper)

Key specifications

• Scanner type: Flatbed + ADF (automatic document feeder)
• Optical resolution: 1200 x 1200 DPI
• ADF capacity: 100-sheet
• Duplex scanning: Two reading heads (single-pass duplex)
• Maximum scan size: up to 297 x 432 mm; long-document up to 240" (609.6 cm)
• Sensor type: CMOS CIS
• Colour depth: 48-bit (supports color, grayscale, monochrome)
• Daily duty cycle: up to 15,000 sheets
• Built-in display: 1.77" LCD
• Memory: 1024 MB internal
• Interface: USB
• Power supply: USB 50 W
• Scanning noise level: 62 dB
• Supported media: A4, business card, plain paper

How to use

Place documents in the 100-sheet ADF or on the flatbed for single pages or bound material. Use the built-in 1.77" LCD to select a destination preset or configure scan settings on the computer via bundled Button Manager V2. Press the Scan button to start; scanned images can be sent to a folder, e-mail, image-editing application, or cloud services such as Google Drive, Evernote, Dropbox and SharePoint. For long documents, load the page carefully and select the long-document scan option in the software.

Recommendations

For reliable results, use recommended paper sizes and thicknesses, remove staples or paper clips before scanning, enable ultrasonic double-feed detection for mixed batches, and periodically clean the CIS sensor and rollers following the manufacturer’s maintenance instructions.
