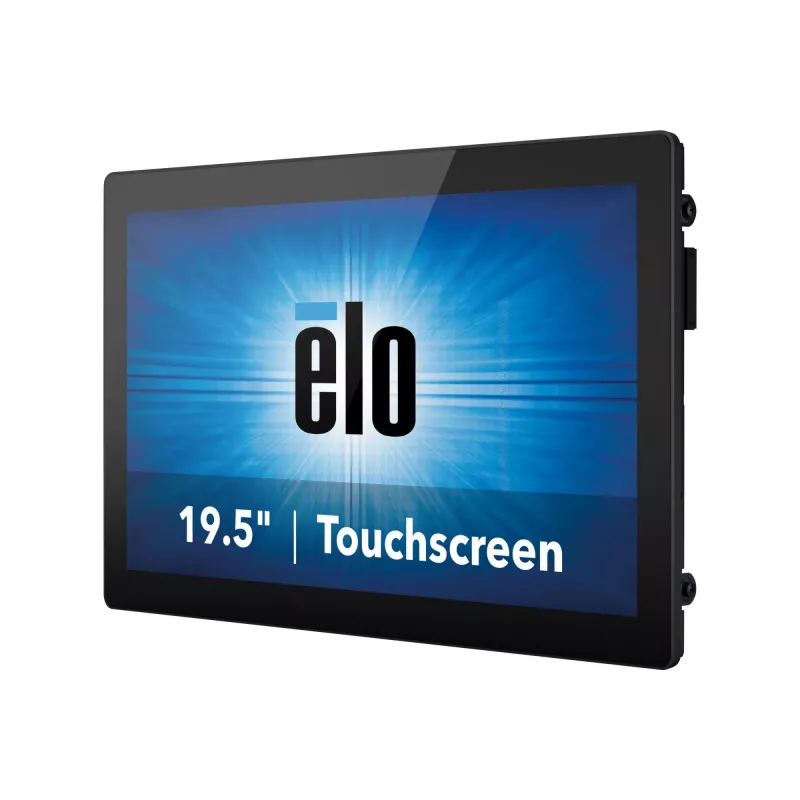

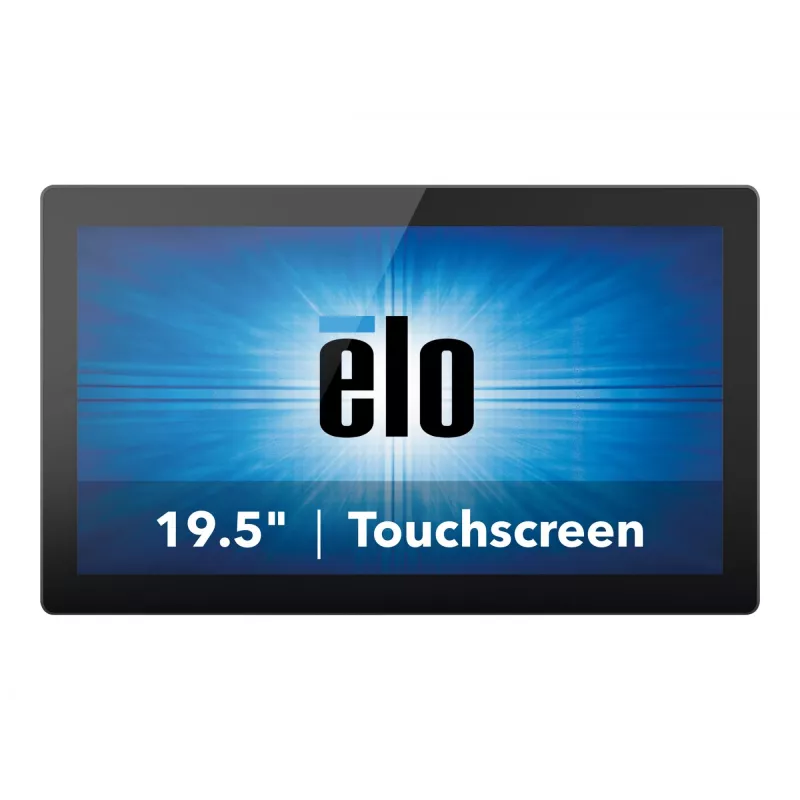

Monitor 2094L 19.5 inch FHD LCD WVA HDMI VGA USB Touch

The Elo 2094L 19.5-inch open-frame FHD LCD touchscreen features a slim profile and narrow outside dimensions enabled by an energy-efficient LED backlight. Designed for touch applications, the display provides stable, drift-free operation with high image clarity and light transmission. The wide viewing-angle WVA panel supports vivid images and consistent color in both portrait and landscape orientations, making the 2094L suitable for kiosks, retail self-service, casino and amusement, and industrial automation. Input options include HDMI, VGA and USB; power brick is not included.

Advantages

The open-frame design is sealed against dirt, dust and liquids and can achieve an IP65 rating on the front when using projected capacitive (PCAP) units, simplifying integration into enclosures. Elo controls design and tooling to provide long-term availability and backwards compatibility. Multiple touch technologies are offered, including IntelliTouch® single-touch SAW and TouchPro™ projected capacitive (PCAP) two-glass (2GS) multi-touch with zero-bezel construction. The TouchPro PCAP supports up to 10-touch tablet-like interaction and two-touch thru-glass operation while supporting single or dual latex gloves and cloth gloves. The product is commercial-grade with a three-year standard warranty and undergoes extensive reliability testing to meet a high MTBF.

Suitable for

• Kiosks and self-service terminals
• Casino and amusement displays
• Retail point-of-sale and customer-facing screens
• Industrial automation HMIs

Key specifications

• Display diagonal: 19.5"
• Resolution: 1920 x 1080 (FHD)
• Panel type: WVA, wide viewing angle (178°/178°)
• Backlight: LED (energy-saving)
• Touch technologies: IntelliTouch® (SAW) single-touch; TouchPro™ PCAP 2GS multi-touch (up to 10-touch, two-touch thru-glass)
• Video inputs: HDMI, VGA, DisplayPort (as available)
• Interface: USB for touch
• Response time: 20 ms
• Contrast ratio: 3000:1 (typical)
• Aspect ratio: 16:9
• Color: Black
• VESA mounting: Yes

How to use

Install the open-frame 2094L into the final enclosure or mounting bracket using the VESA-compatible mounting points or the case mounting features provided by the unit. Connect video from a supported source via HDMI, VGA or DisplayPort and connect the USB cable to enable touch functionality. Select the appropriate touch mode and drivers for the chosen technology (IntelliTouch or TouchPro PCAP) and install Elo drivers or OS-native drivers as required. If using a PCAP unit and sealing the front, ensure front-side sealing is completed to meet IP65 requirements before final installation.

Recommendations

The display is intended for commercial and industrial environments; use Elo-approved drivers and follow enclosure sealing guidelines for touch technology chosen. Avoid exposing the unit to unsealed moisture or contaminants; when using thru-glass touch, verify glass thickness compatibility and glove requirements for proper touch performance.
