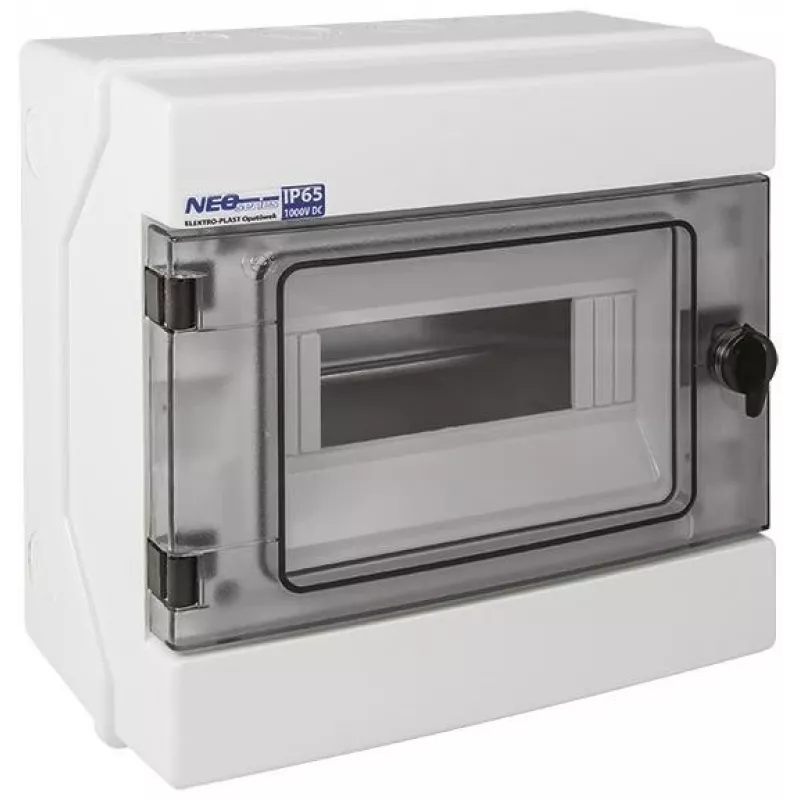

ELEKTRO-PLAST OPATÓWEK Modular Hermetic Distribution Enclosure 1x8 Surface-Mounted (N+PE) IP65 RH-8

The ELEKTRO-PLAST OPATÓWEK RH-8 is a high-quality modular hermetic distribution enclosure designed for reliable electrical distribution in demanding environments. With an IP65 rating, it is dust-tight and protected against water jets, making it suitable for both indoor and outdoor use. The enclosure features a transparent polycarbonate door for easy visual inspection and is made from durable ABS material with UV resistance.

Advantages

This enclosure offers robust protection against environmental factors, ensuring long-lasting performance. The transparent door allows quick status checks without opening, while the pre-marked knockouts simplify cable entry. It includes neutral (N) and protective earth (PE) terminals for safe and compliant installations.

Suitable for

• Industrial electrical distribution
• Outdoor power supply systems
• Solar photovoltaic (PV) installations (1000V DC rated)
• Commercial and residential building services

Key specifications

• Product Type: Modular Distribution Enclosure
• Mounting Type: Surface-mounted
• Ingress Protection: IP65
• Number of Modules (DIN): 8
• Number of Rows: 1
• Rated AC Voltage: 500V AC
• Rated DC Voltage: 1000V DC
• Terminals: Neutral (N) and Protective Earth (PE)
• Enclosure Material: ABS (Acrylonitrile Butadiene Styrene)
• Door Material: Polycarbonate (Transparent)
• Colour: Light Grey (RAL 7035)
• Impact Resistance: IK07
• Glow Wire Test Temperature: 650°C
• Operating Temperature Range: -25°C to +60°C
• UV Resistance: Yes
• Standards Compliance: EN 62208, CE
• Application Environment: Indoor and Outdoor
• Cable Entry: Pre-marked knockouts

Recommendations

For optimal performance, ensure proper sealing of unused knockouts and follow local electrical codes during installation. This enclosure is ideal for systems requiring high DC voltage ratings, such as solar combiner boxes.
