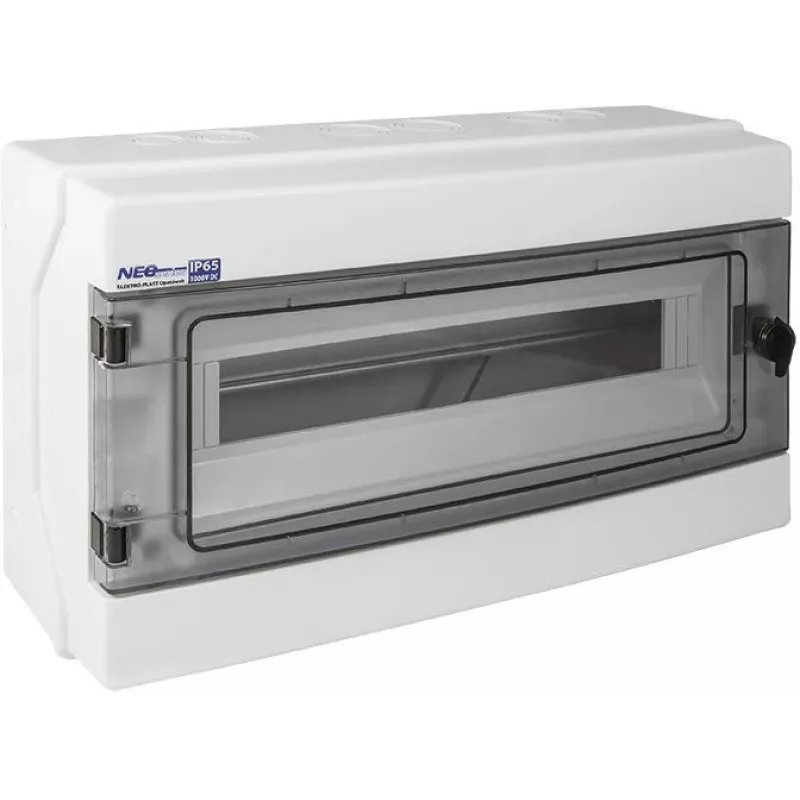

ELEKTRO-PLAST OPATÓWEK Hermetic Modular Distribution Board (500V AC, 1000V DC) 1x18 Surface-mounted (N+PE) IP65 RH-18

The ELEKTRO-PLAST OPATÓWEK RH-18 is a high-quality hermetic modular distribution board designed for reliable electrical distribution in demanding environments. With an IP65 rating, it offers complete protection against dust and water jets, making it suitable for outdoor and industrial applications. The board accommodates up to 18 modules in a single row and includes integrated neutral (N) and protective earth (PE) terminals.

Advantages

This distribution board ensures safe and organized electrical distribution with its robust ABS enclosure and transparent polycarbonate door. The IP65 protection guarantees operation in wet or dusty conditions, while the IK08 impact resistance provides durability against mechanical shocks. The board is halogen-free and UV-resistant, ensuring long service life and safety.

Suitable for

• Outdoor electrical installations
• Industrial environments requiring high ingress protection
• Residential and commercial buildings where surface-mounted distribution is needed
• Applications requiring up to 18 modules in a single row

Key specifications

• Enclosure Type: Modular Distribution Board
• Mounting Type: Surface-mounted
• Ingress Protection: IP65
• Number of Modules: 18
• Number of Rows: 1
• Rated AC Voltage: 500V AC
• Rated DC Voltage: 1000V DC
• Terminal Blocks: Neutral (N) and Protective Earth (PE)
• Enclosure Material: ABS
• Door Material: Polycarbonate (PC), Transparent (Tinted)
• Color: Grey (RAL 7035)
• Impact Resistance: IK08
• Glow Wire Test Temperature: 650°C
• Operating Temperature Range: -25°C to +60°C
• Insulation Class: Class II
• UV Resistance: Yes
• Halogen-Free: Yes
• Standards Compliance: EN 62208, EN 60670-24
• Sealable: Yes

Recommendations

For optimal performance, ensure proper sealing after installation. This board is ideal for use with compatible cable glands and accessories. Always follow local electrical codes and regulations.
