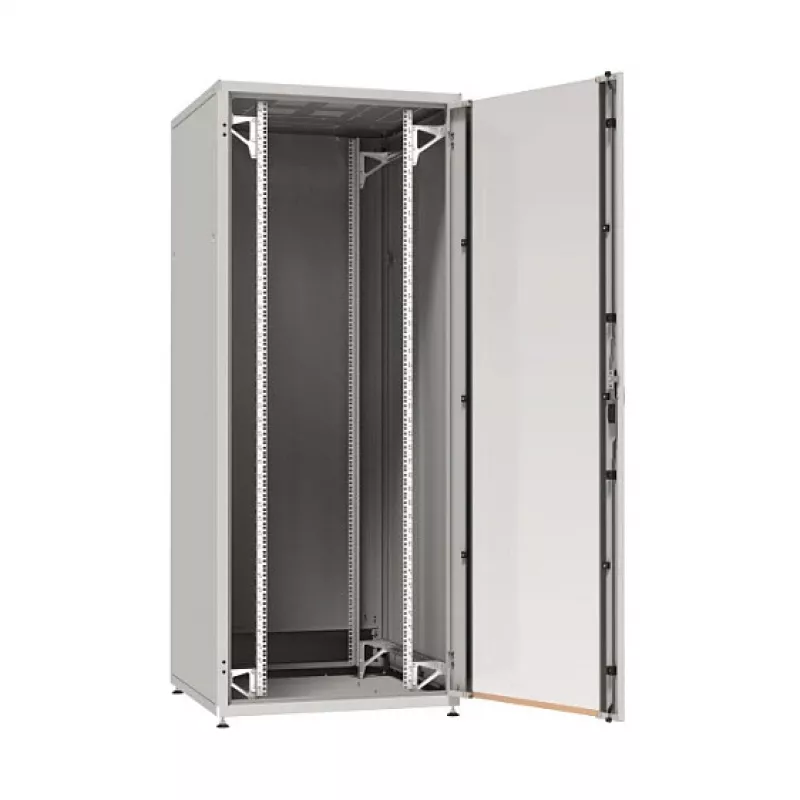

EFB PRO-4282GR.G1SV 19 inch Network Cabinet 42U 800x1200mm RAL7035

The EFB PRO-4282GR.G1SV is a high-quality 19-inch network cabinet from the PRO series, designed for professional data center and server room environments. With 42U of rack space, 800mm width, and 1200mm depth, it offers ample room for servers, switches, and networking equipment. The cabinet features a light grey RAL 7035 finish and is built from robust steel with a welded frame for maximum stability.

Advantages

This network cabinet provides exceptional static load capacity of up to 1000 kg, ensuring safe installation of heavy equipment. The front safety glass door with security lock and the rear perforated steel door with lock offer both visibility and ventilation while maintaining security. Removable and lockable side panels allow easy access for maintenance. Depth-adjustable mounting rails provide flexibility for various equipment depths.

Suitable for

• Data centers and server rooms requiring high-density rack mounting
• IT infrastructure for enterprise networks and telecommunications
• Installation of 19-inch rack-mountable servers, switches, patch panels, and UPS systems

Key specifications

• Rack Units: 42U
• Rack Standard: 19 inch (48.3 cm)
• Cabinet Width: 800 mm
• Cabinet Depth: 1200 mm
• Cabinet Height: 2000 mm
• Colour: RAL 7035 (Light Grey)
• Material: Steel
• Front Door: Safety glass with security lock
• Rear Door: Perforated steel with security lock
• Side Panels: Removable and lockable
• Static Load Capacity: 1000 kg
• Protection Class: IP20

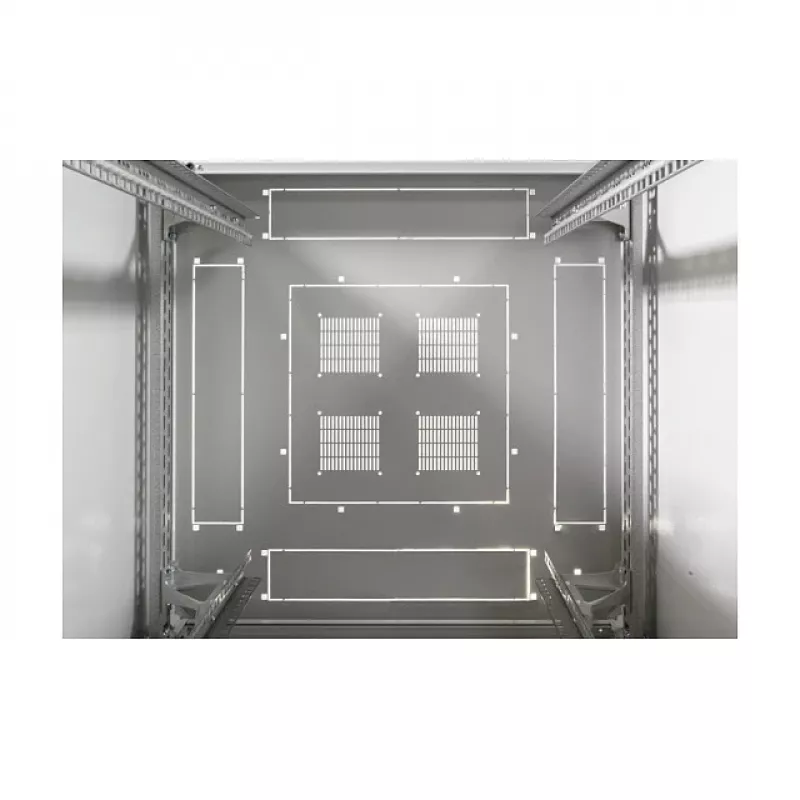

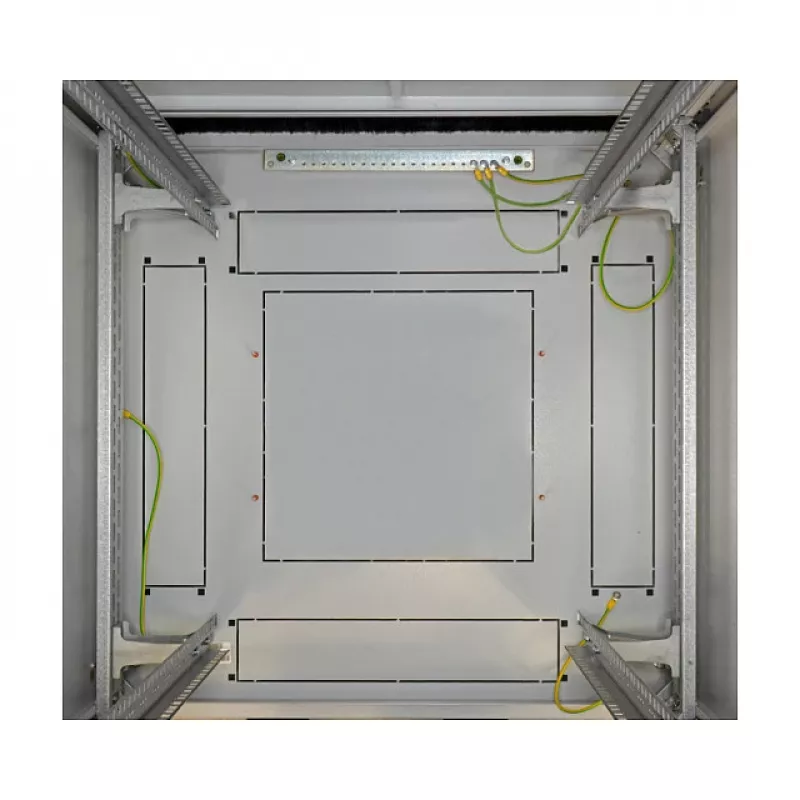

• Cable Entry: Top and bottom with brush strips
• Mounting Rails: Front and rear, depth-adjustable
• Construction: Welded frame, pre-assembled
• Ventilation: Passive via perforated doors
• Included Accessories: Leveling feet, 4x castors, 20x cage nuts
• Compliance: RoHS, CE

Recommendations

For optimal cable management, consider using EFB patch panels and cable management accessories. Ensure adequate ventilation in the installation area to maintain proper airflow through the cabinet.
