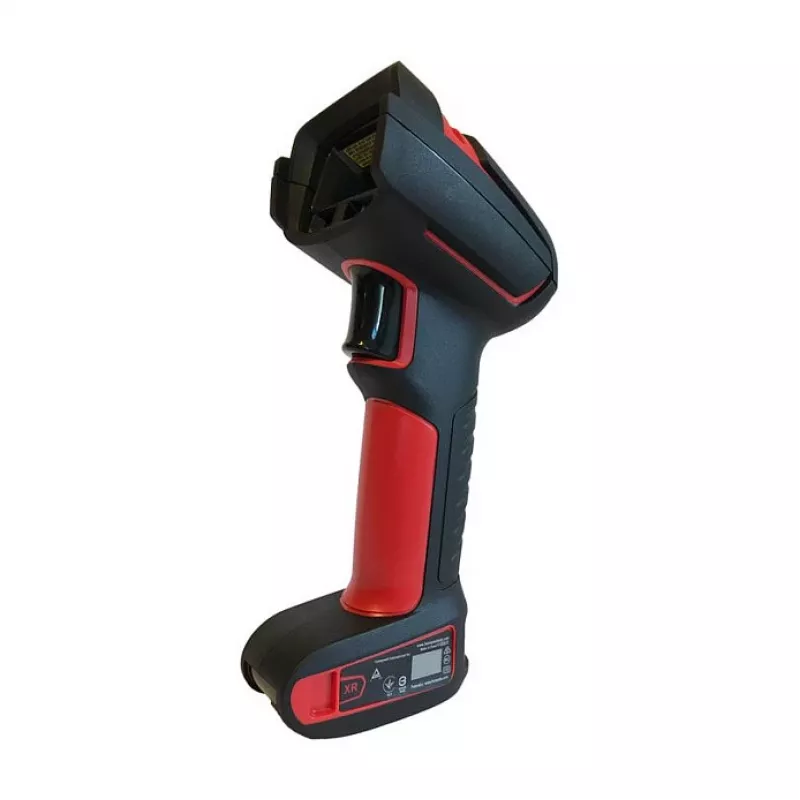

Honeywell Granit XP 1990iXLR-3 Kit Tethered 1D/2D XLR Focus Industrial Barcode Scanner with RS-232 Cable

The Honeywell Granit XP 1990iXLR-3 Kit Tethered 1D/2D XLR Focus is a rugged industrial-grade barcode scanner designed for demanding environments. This kit includes the scanner and a tethered RS-232 cable, providing reliable connectivity for high-volume scanning tasks. With advanced imaging technology, it reads 1D and 2D barcodes with exceptional speed and accuracy, even on damaged or poorly printed codes.

Advantages

Built to withstand harsh conditions, the Granit XP 1990iXLR-3 features an IP65 rating and can survive 50 drops from 2 meters to concrete. Its focus lens offers flexible range, making it ideal for scanning both close-up and at a distance. The white LED illumination ensures clear imaging in any lighting.

Suitable for

• Warehouse and logistics operations
• Manufacturing and production lines
• Retail and inventory management
• Transportation and distribution centers

Key specifications

• Scanner Type: Industrial-Grade Corded Area-Imaging Scanner
• Scan Capability: 1D, 2D, PDF417 Barcodes
• Connectivity: RS-232 (Tethered)
• Ruggedness Rating: IP65
• Drop Specification: 2 m (6.5 ft) to concrete (50 drops)
• Operating Temperature: -30°C to 50°C (-22°F to 122°F)
• Imager Resolution: 1280 x 800 pixel array
• Light Source: White LED
• Field of View: Horizontal: 42°, Vertical: 28°
• Motion Tolerance: Up to 610 cm/s (240 in/s) for 13 mil UPC
• Host System Interface: RS-232
• Color: Black, Red
• Included Components: Scanner, USB Cable
• Focus Type: Focus Lens (Flexible Range)
• Minimum Print Contrast: 20%
• ESD Protection: ±20 kV air discharge, ±8 kV contact discharge

Recommendations

For optimal performance, pair this scanner with Honeywell's recommended cables and accessories. Ensure the RS-232 interface is compatible with your host system. Regular cleaning of the scan window will maintain reading accuracy.
