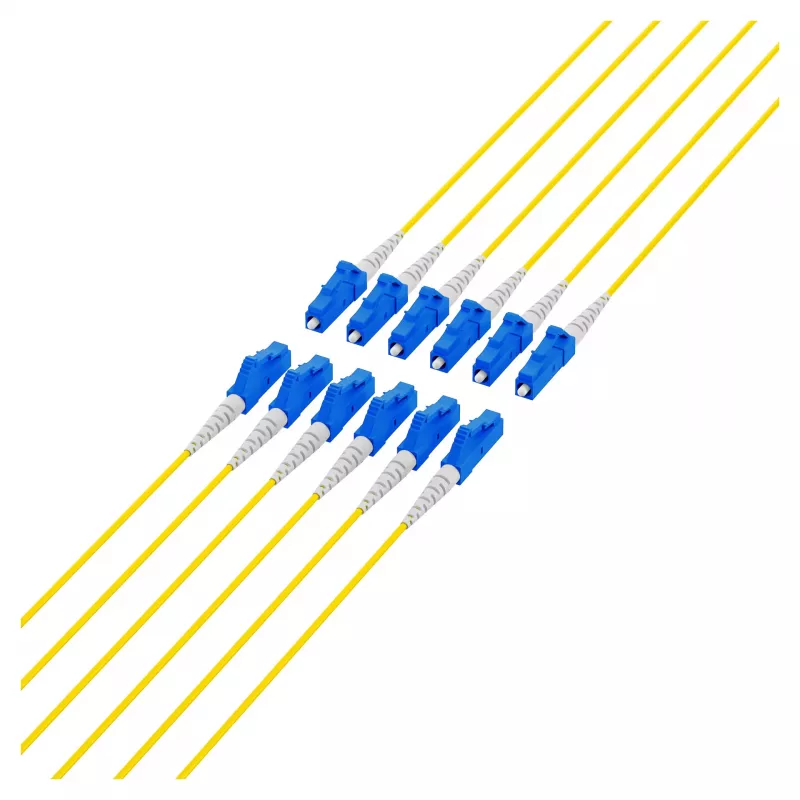

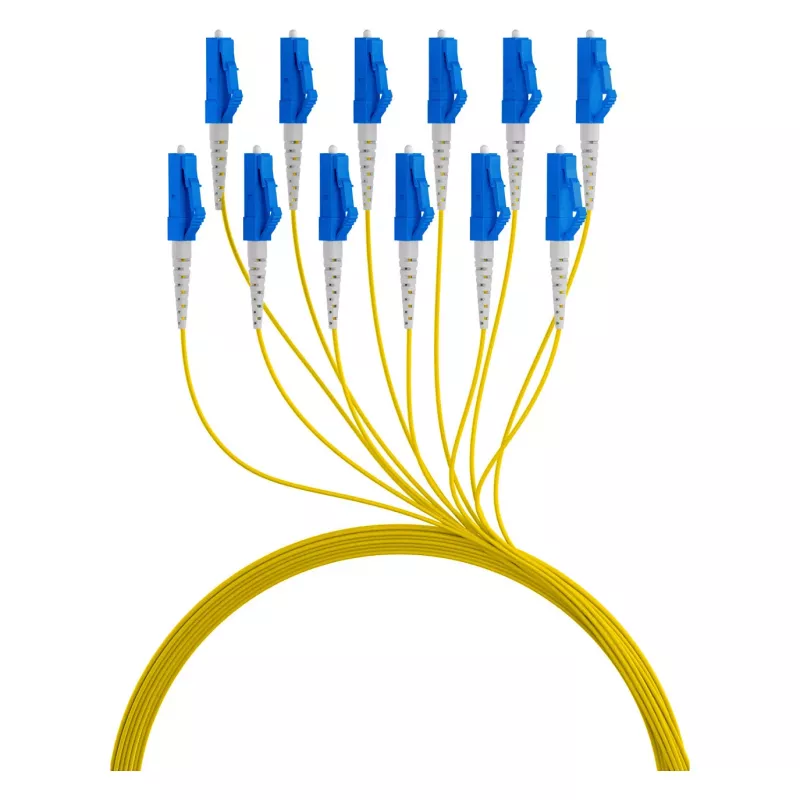

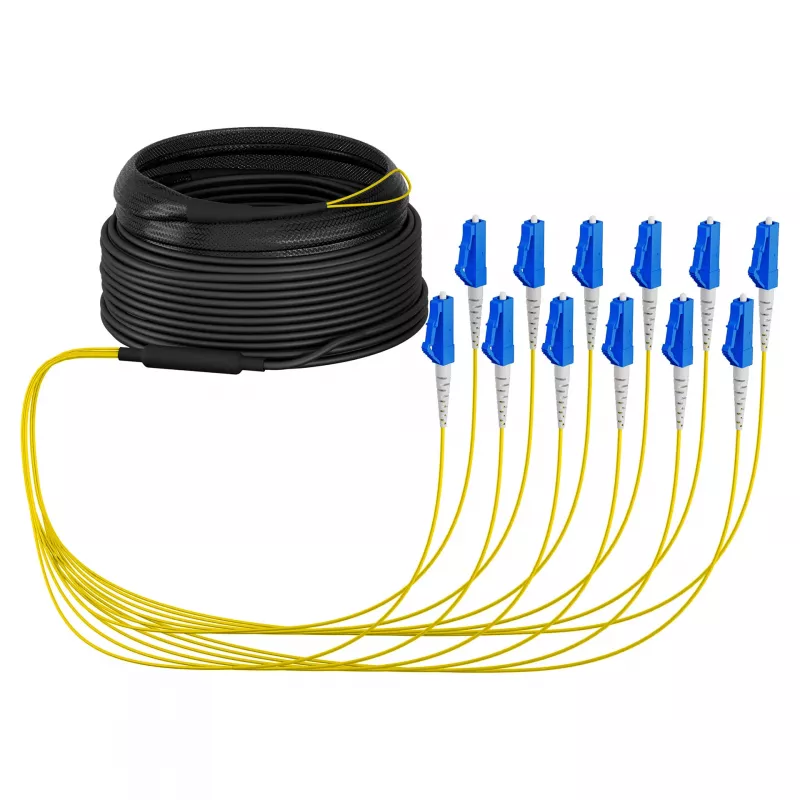

EFB-ELEKTRONIK Trunk Cable U-DQ ZN BH OS2 12E 1x12 LC-LC 40m Dca LSZH

The EFB-ELEKTRONIK Trunk Cable O8342S40OS2 is a high-performance fiber optic trunk cable designed for reliable data transmission in structured cabling systems. With 12 single-mode fibers and LC duplex connectors, this cable ensures low insertion loss and high return loss, making it ideal for backbone and distribution applications.

Advantages

This trunk cable offers exceptional bend insensitivity (G.657.A1/A2), allowing for tight installation spaces without signal degradation. The LSZH (Low Smoke Zero Halogen) jacket ensures safety in public and residential areas, while the Dca fire classification meets European CPR standards. Non-metallic strain relief with aramid yarns provides robust tensile strength.

Suitable for

• Indoor/outdoor backbone cabling in data centers
• Fiber-to-the-home (FTTH) distribution networks
• Telecommunications and enterprise networks
• Structured cabling systems requiring OS2 single-mode performance

Key specifications

• Fiber Type: OS2 Single-mode (9/125 µm)
• Fiber Count: 12 fibers (1x12 configuration)
• Connectors: 12x LC Simplex on both ends
• Cable Length: 40 meters
• Cable Construction: U-DQ ZN BH (Universal, Loose Tube, Non-metallic, Halogen-free)
• Outer Sheath: LSZH, Yellow
• Insertion Loss: ≤0.3 dB per connector
• Return Loss: ≥50 dB
• Operating Temperature: -20°C to 70°C
• CPR Class: Dca

Recommendations

For optimal performance, pair this trunk cable with EFB-ELEKTRONIK patch panels and splice cassettes. Ensure proper cable management to maintain bend radius and avoid stress on connectors.
