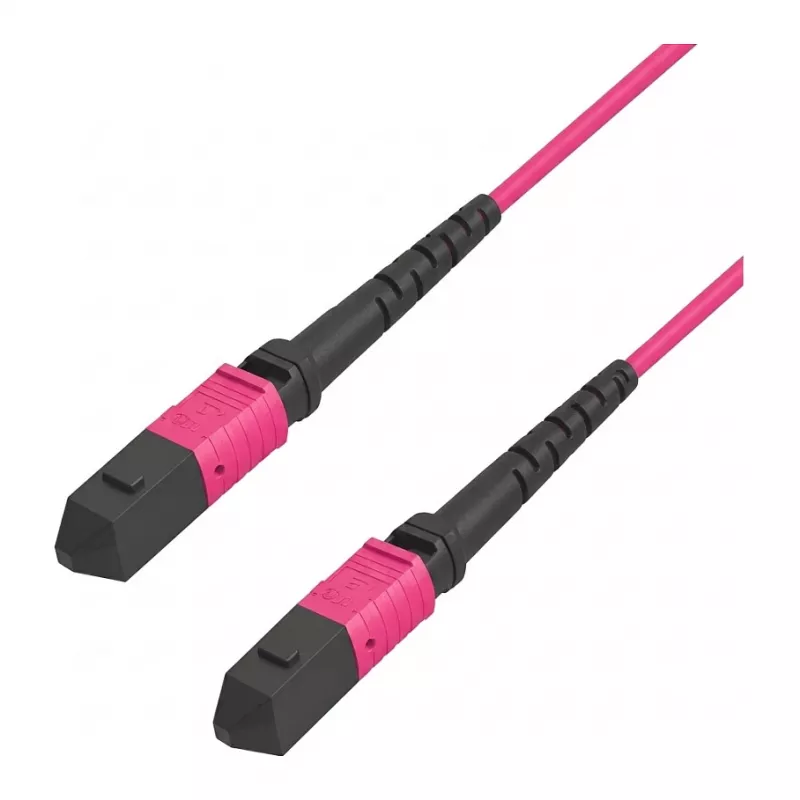

EFB-Elektronik MTP Female to MTP Female 12-Fiber OM4 Multimode Patch Cable, LSZH, Erika Violet, Type B, 3m

The EFB-Elektronik MTPF12MTPFOM4-3 is a high-performance 12-fiber MTP female to MTP female patch cable designed for demanding data center and high-density networking environments. Featuring OM4 multimode fiber, this cable supports high-bandwidth applications up to 40/100GbE. The LSZH (Low Smoke Zero Halogen) jacket ensures safety in confined spaces, while the erika violet color aids in easy identification. Polarity Type B (cross-over) is ideal for parallel optics applications.

Advantages

This patch cable offers exceptional reliability and performance with low insertion loss and high return loss. The 12-fiber MTP connector provides a compact, high-density solution, saving space in patch panels and equipment. The LSZH jacket reduces toxic and corrosive gas emissions in case of fire, making it suitable for use in data centers, offices, and public areas. The erika violet color allows for quick visual identification among other cables.

Suitable for

• Data center interconnects
• High-density networking
• 40/100GbE applications
• Backbone cabling
• Storage area networks (SAN)

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Connector Type: MTP Female to MTP Female
• Fiber Count: 12 Fibers
• Fiber Mode: Multimode
• Fiber Class: OM4
• Cable Length: 3 meters
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Erika Violet
• Polarity Type: Type B (Cross-over)
• Core/Cladding Diameter: 50/125 µm
• Maximum Bandwidth (850nm): 4700 MHz-km
• Maximum Bandwidth (1300nm): 500 MHz-km
• Typical Insertion Loss (per connector): < 0.35 dB
• Typical Return Loss: > 20 dB
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Compliance: RoHS, REACH
• Ferrule Material: Composite

Recommendations

For optimal performance, ensure that both ends of the cable are connected to compatible MTP female ports. Avoid excessive bending or pulling to maintain signal integrity. This cable is ideal for use with EFB-Elektronik MTP adapters and panels.
